Meyer XS Series — X-Ray_AI Bulk Sorter
High-density contaminant detection: The detection system accurately identifies foreign objects such as glass, metal, stones, and ceramics, even when their shape or appearance is similar to the inspected product. By analyzing internal structure and material density, the system can detect elements that remain undetected by traditional inspection methods. Operator and product safety: The MEYER XS X-ray detector is engineered with full operational safety in mind. X-ray radiation levels are strictly controlled and completely safe for both operators and inspected food products, with no impact on structure, taste, or nutritional value. The enclosed design and integrated safety systems ensure reliable and secure operation. Fast and precise defect separation: Maglev ejectors enable rapid and highly accurate removal of detected defects and foreign objects without disrupting the production flow. High response frequency and precise control ensure stable performance even at high throughputs, minimizing product loss and reducing the risk of damage.
Description
▾
The MEYER XS X-ray detector has been designed for precise inspection of bulk products to identify hidden defects and unwanted contaminants. It effectively detects foreign objects such as glass, metal, stones, and ceramics that may pose a risk to food safety. The system is also capable of identifying internal defects invisible to the naked eye, including unripe, damaged, or hollow nuts, fruits, and seeds. Thanks to high precision detection, potential hazards can be eliminated without unnecessary product loss. Stable and high-speed operation ensures efficient quality control while preserving product integrity.
Key Benefits:
High-density contaminant detection: The detection system accurately identifies foreign objects such as glass, metal, stones, and ceramics, even when their shape or appearance is similar to the inspected product. By analyzing internal structure and material density, the system can detect elements that remain undetected by traditional inspection methods.
Operator and product safety: The MEYER XS X-ray detector is engineered with full operational safety in mind. X-ray radiation levels are strictly controlled and completely safe for both operators and inspected food products, with no impact on structure, taste, or nutritional value. The enclosed design and integrated safety systems ensure reliable and secure operation.
Fast and precise defect separation: Maglev ejectors enable rapid and highly accurate removal of detected defects and foreign objects without disrupting the production flow. High response frequency and precise control ensure stable performance even at high throughputs, minimizing product loss and reducing the risk of damage.
What products is it suitable for?
▾
Beans
→
INPUT
✓
ACCEPT
✕
REJECT
Technical Specifications
▾
| Specification | XS Series |
|---|---|
| Sorter model | 80XS4 |
| Sorter code | MY8060-80XS |
| Sorter power (kW) | 2.5 |
| Sorter voltage (V) | 180～240 50Hz |
| Sorter air pressure (MPa) | 0.6～0.8 |
| Sorter air consumption (m³/min) | 0.3 |
| Sorter dimensions (L x W x H) | 2530*1250*2400 |
| Sorter weight (kg) | 680 |
| Detection | Glass · Metal · Stone · Ceramics · Internal Defects |
| Internal Defects | Hollow nuts · Worm-eaten · Unripe / Damaged seeds |
| Brand | Meyer |
| Indian Dealer | NICPL |
Features
▾
💻 X-ray Inspection System
👁️ Meyer 8084 — Internal Inspection Chamber
🎡 CNC Multi-Tool Turret Assembly
⚗️ High-Speed Turning Operation
⛓️💥 Maglev Ejectors® — By MEYER
👁️🗨️ Innovative Vision Systems
⏏️ Full Spectrum Lighting System
🔫 Sniper System — By MEYER

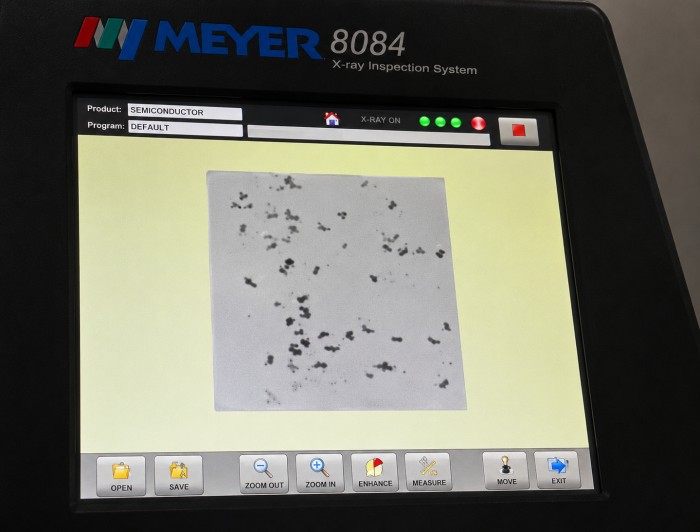

X-ray Inspection System
- 🔍 Advanced X-ray Technology — Uses high-precision X-ray imaging to detect contaminants and defects invisible to the naked eye
- 🧲 Detects All Metal & Non-Metal Contaminants — Identifies lead, steel, glass, stone, bone, and dense plastic inside products
- 💻 Smart Software Interface — Real-time grayscale X-ray scan displayed on screen with live inspection results
- ⚙️ Programmable Product Settings — Supports multiple product programs (e.g. Semiconductor, Food, Industrial parts) with customizable detection sensitivity
- 🟢 Live Status Monitoring — Color-coded indicator lights (green = running, red = alert) for instant machine status visibility
- 📁 Save & Review Scans — Built-in OPEN, SAVE, ZOOM IN/OUT, ENHANCE, and MEASURE tools for detailed image analysis
- 📏 Precision Measurement — MEASURE tool allows accurate sizing of detected contaminants or defects on screen
- 🔄 Continuous Inline Operation — Designed for high-speed production lines with real-time accept/reject decisions
Pre and After-Sales Service
▾
PRE-SALE
Consulting solution service
Configuration suggestion
Layout suggestion
HELP DESK
Remote troubleshooting
Remote machine adjusting
Fault de-escalation
ON-SITE
Routine inspection
Commissioning
Troubleshooting
SPARE PARTS
Spare parts supply
Warranty service
Key parts maintenance
TRAINING
Local training
HQ training
Standard warranty
🌟 Pre-Sale Service — NICPL
Consultation on selecting the optimal inspection system for your product
Support integrating with your existing production lines
Product testing available — attend and observe live at Kundli
🔧 After-Sale Service — NICPL
On-site service with quick response times across India
Warranty including free inspections and maintenance
24×7 support — call +91 70115 54903 anytime
Frequently Asked Questions
▾
What makes the 80XS4 different from the 60XS4 model?
The 80XS4 is the next size up in the XS Series, built for higher throughput operations. It has larger sorter dimensions (2530×1250×2400 mm) and a heavier frame (680 kg vs 580 kg) to support a wider inspection chute, while keeping the same 2.5 kW power draw and standard 180～240V supply.
What contaminants does the 80XS4 detect?
The 80XS4 detects glass, metal, stone, ceramics, and internal defects such as hollow nuts, worm-eaten kernels, and unripe or damaged seeds — the same detection range as the rest of the XS Series, scaled to a higher-capacity chute.
What are the power and utility requirements for installation?
The 80XS4 runs on 2.5 kW power at 180～240V (50Hz) and requires compressed air at 0.6～0.8 MPa with consumption of 0.3 m³/min. These are standard utility requirements typical of most Indian processing facility setups.
Is the 80XS4 suitable for higher-volume processing lines?
Yes. The larger frame and wider sorter dimensions compared to the 60XS4 make the 80XS4 a better fit for processors handling higher daily volumes of beans, grains, or similar bulk products, while keeping the same Maglev ejector and detection technology.
Does NICPL provide installation and after-sales support for the 80XS4?
Yes, NICPL provides the same pre-sale consultation, on-site installation, AMC, and 24×7 support for the 80XS4 as for the rest of the Meyer XS lineup, with service coverage across India.
What types of contaminants can MEYER machines detect?
MEYER machines detect a wide range of contaminants including metals (iron, steel, lead, aluminum), glass, stones, bones, rubber, plastic, mold, discoloration, cracks, and internal defects — using X-ray, visible light, infrared, and UV technologies combined.
Will the X-ray inspection system harm or affect my food products?
Absolutely not. MEYER X-ray inspection is a completely non-destructive process. Products pass through without any physical contact with radiation sources, and the sealed lead-lined chamber ensures zero radiation exposure to operators or products.
How fast does the Maglev® Ejector operate and why does it matter?
The Maglev® 3.0 ejector operates at a frequency exceeding 1200 Hz with millisecond-level response. This means only the contaminated item is ejected instantly — minimizing good product loss and maintaining full production line speed.
Can MEYER machines be integrated into existing production lines?
Yes. MEYER sorting and inspection machines are designed for seamless inline integration into existing production lines. They operate continuously at high throughput speeds without requiring production line shutdown or major modifications.
How does the Meyer 8084 X-ray system display and store inspection results?
The Meyer 8084 features a built-in software interface with a touchscreen monitor displaying real-time grayscale X-ray scans. Operators can SAVE, ZOOM, ENHANCE, and MEASURE scan images directly on screen, with programmable product settings and live status indicators for complete inspection record keeping.
What happens when a contaminated product is detected?
When contamination is detected, the machine instantly sends a reject signal through its output port to trigger a downstream automatic rejecter. The contaminated product is removed from the line without stopping production. Every rejection event is saved with a product image for full traceability.
Can we see a live demonstration before purchasing?
Absolutely. NICPL offers live product trials at our facility where you can bring your own product packets for testing. This allows you to verify detection sensitivity on your actual product before making any purchase decision. Contact us on WhatsApp or call +91 70115 54903 to schedule a trial.
