All Grain Dryer Series
5 Types
5H-10 · 5H-12 · 5HCY-15H · 5HCY-21
10T — 21T per Batch
Cross Flow With Auger
🌀 4 Models Available
Cross Flow Grain Dryer
With Auger — 10T to 21T
With Auger — 10T to 21T
Batch type circulation grain dryers with auger system for paddy, wheat and maize. Indirect heating via husk burner. PLC controlled with automatic moisture monitoring and safety devices.
| Model | 5H-10 | 5H-12 | 5HCY-15H | 5HCY-21 |
|---|---|---|---|---|
| Capacity | 10T | 12T | 15T | 21T |
| Motor Power | 7.87 kW | 13.7 kW | ||
| Drying Rate | 0.5–1.2 (%/h) | |||
| Broken Rate | ≤ 0.5% | |||
Model 15 · Model 21
15T — 21T per Batch
Cross Flow Non Auger
🔄 2 Models Available

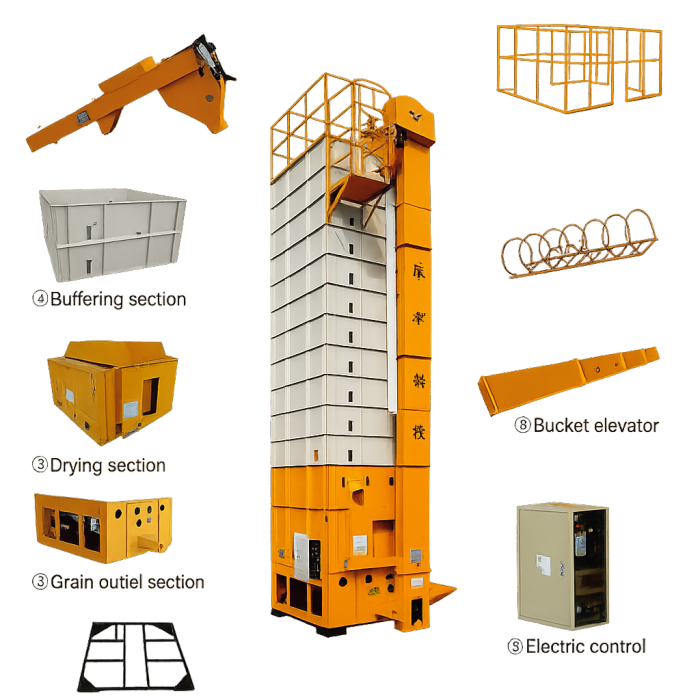

Cross Flow Grain Dryer
Non Auger — 15T & 21T
Non Auger — 15T & 21T
Batch type circulation with indirect heating. Higher capacity design without auger — suitable for paddy and wheat at higher throughput. Online moisture monitor and full automatic control standard.
| Specification | Model 15 | Model 21 |
|---|---|---|
| Cyclic Batch | 15T | 21T |
| Paddy Capacity | 2300–15000 kg | 5000–21000 kg |
| Motor Power | 6.4 kW | 10.9 kW |
| Drying Capacity | >10.5 t%/h | >15 t%/h |
| Drying Rate | 0.5–1.2 (%/h) | |
5HCY-15H · 5HCY-30 · 5HCY-50
15T — 50T per Batch
Mixed Flow With Auger
🌊 3 Models Available

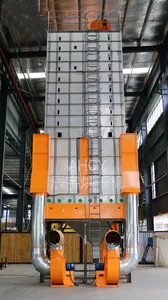

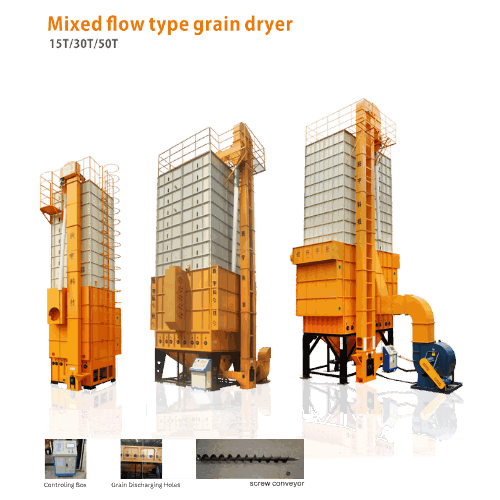

Mixed Flow Grain Dryer
With Auger — 15T to 50T
With Auger — 15T to 50T
Large capacity mixed flow dryers with auger for paddy, maize and wheat. Superior drying uniformity. Ideal for large rice mills, mandi operations and agri-processing plants requiring high throughput.
| Model | 5HCY-15H | 5HCY-30 | 5HCY-50 |
|---|---|---|---|
| Capacity | 15T | 30T | 50T |
| Weight | 3200 kg | 8000 kg | 12000 kg |
| Motor Power | 7.87 kW | 19.4 kW | 34.35 kW |
| Drying Rate | 0.8–2 (%/h) | ||
5HWJL-15 · 5HWJL-30
15T — 30T per Batch
Mixed Flow Non Auger
💨 2 Models Available
Mixed Flow Grain Dryer
Non Auger — 15T & 30T
Non Auger — 15T & 30T
Mixed flow dryers without auger — modular design, easy maintenance, suitable for paddy, wheat, soybean and oilseeds. Low drying temperature preserves grain germination rate and nutritional value.
| Model | 5HWJL-15 | 5HWJL-30 |
|---|---|---|
| Capacity | 15T | 30T |
| Weight | 3800 kg | 8000 kg |
| Motor Power | 7.55 kW | 21.3 kW |
| Drying Rate | 0.8–2 (%/h) | |
| Broken Rate | ≤ 0.5% | |
🔥 BIOMASS BURNER
Husk Furnace — Optional Accessory
🔥 3 Models — CY5L-30 / 40 / 50

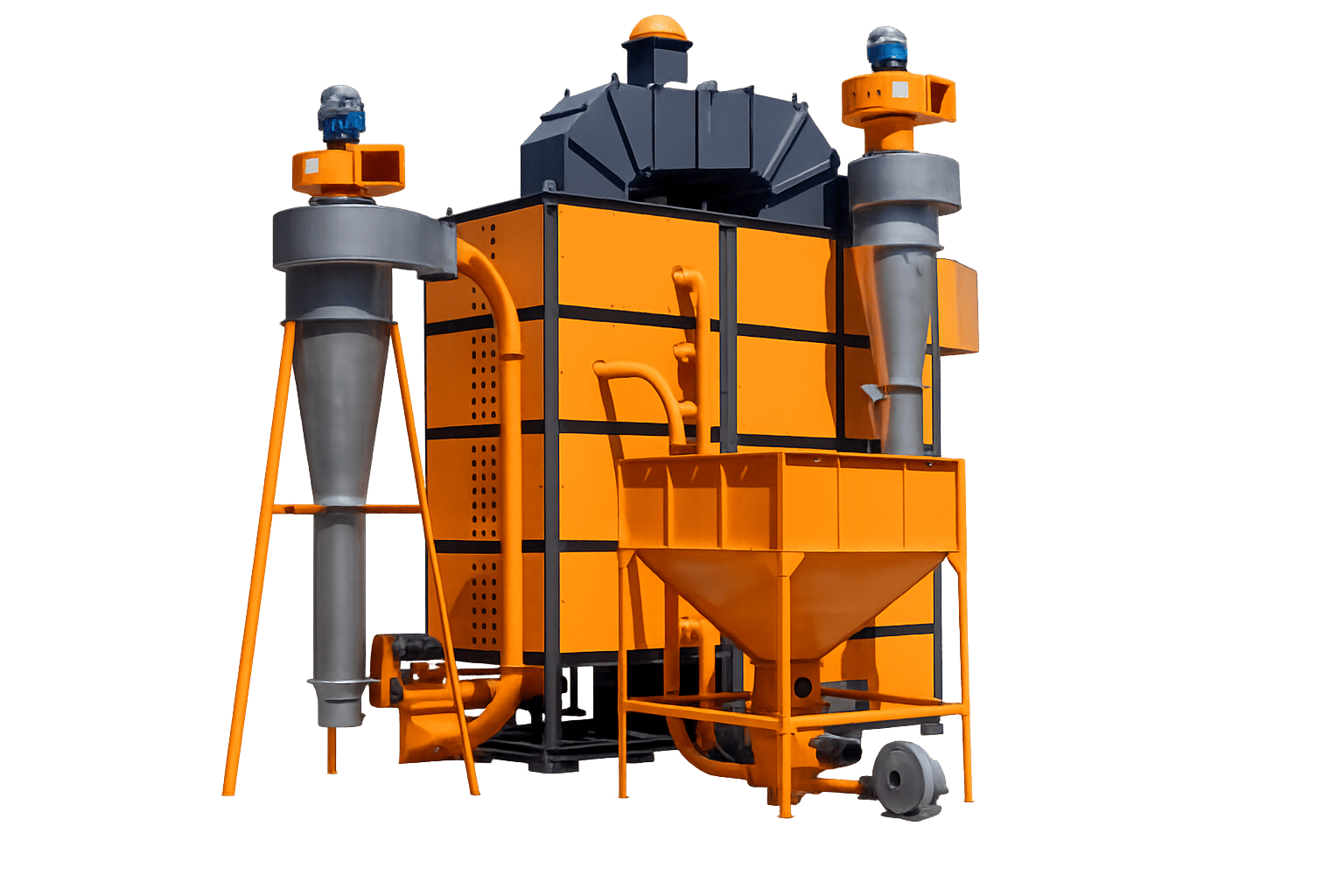

Husk Furnace
300,000 – 500,000 kcal/hr
300,000 – 500,000 kcal/hr
Indirect hot air heating furnace using rice husk, wood, straw or anthracite as fuel. Thermal efficiency ≥80% (with rice hull). Automatic temperature control, cyclone dust separation. Pairs with all dryer series.
| Model | CY5L-30 | CY5L-40 | CY5L-50 |
|---|---|---|---|
| Rated Heat (kcal/hr) | 300,000 | 400,000 | 500,000 |
| Output Air Temp (°C) | 60–120 | ||
| Thermal Efficiency | ≥80% (with rice hull) | ||
| Power | 3.12 kW | ||
| Husk Consumption | 15–30 kg/hr | 30–45 kg/hr | |
