🔥 HUSK FURNACE
Optional Accessory
3 Models

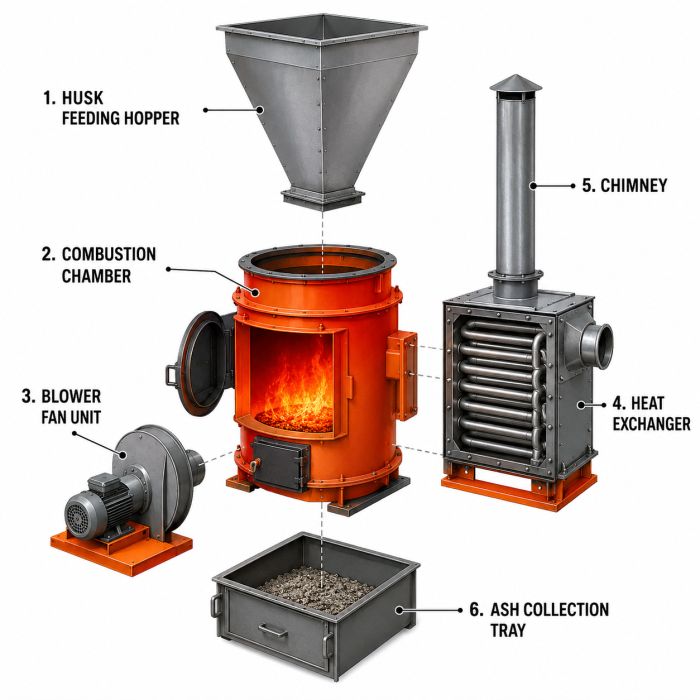

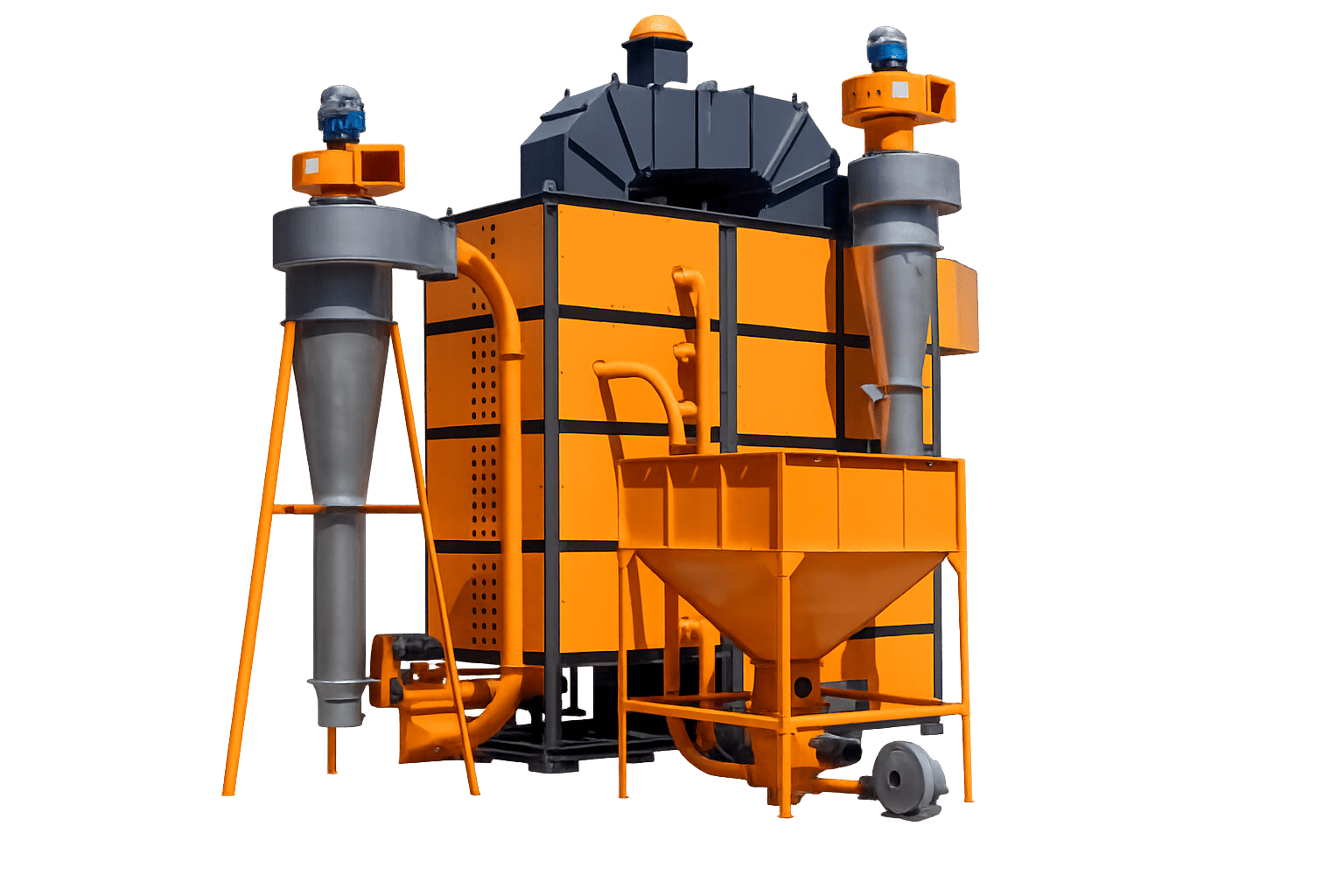

Husk Furnace — Biomass Burner
CY5L-30 · CY5L-40 · CY5L-50
CY5L-30 · CY5L-40 · CY5L-50
Indirect hot air heating furnace using rice husk, wood, straw or anthracite as fuel. Thermal efficiency ≥80% with rice hull. Automatic temperature control, cyclone dust separation. Pairs with all Cross Flow and Mixed Flow dryer series.
Select Model — Compare All Three
CY5L-30
300,000 kcal/hr
Weight3,154 KG
Dimension3860×1400×3135
Husk Use15–30 kg/hr
Hot Air13353–26706 m³/h
Pairs With5H-10/12 × 2sets

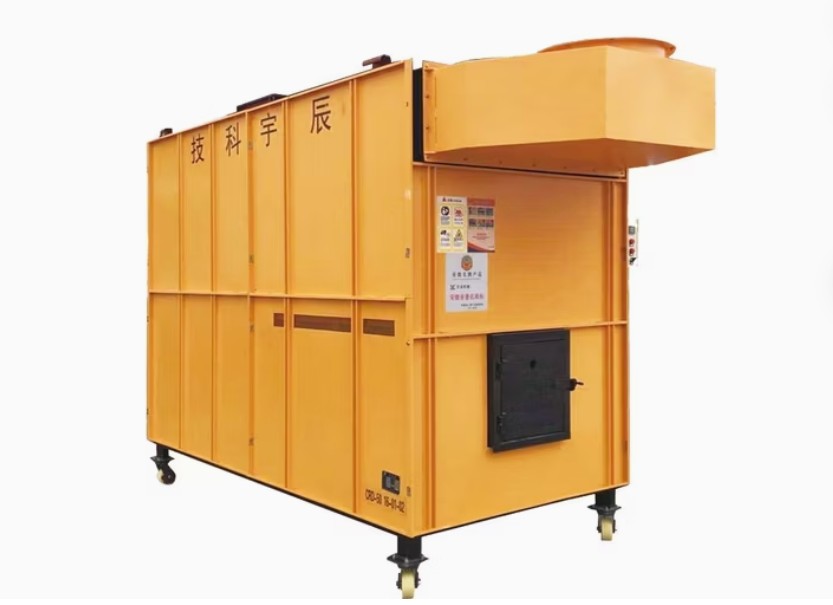

CY5L-40
400,000 kcal/hr
Weight3,668 KG
Dimension4055×1600×3135
Husk Use20–35 kg/hr
Hot Air26706–40059 m³/h
Pairs With5H-10/12 × 3sets

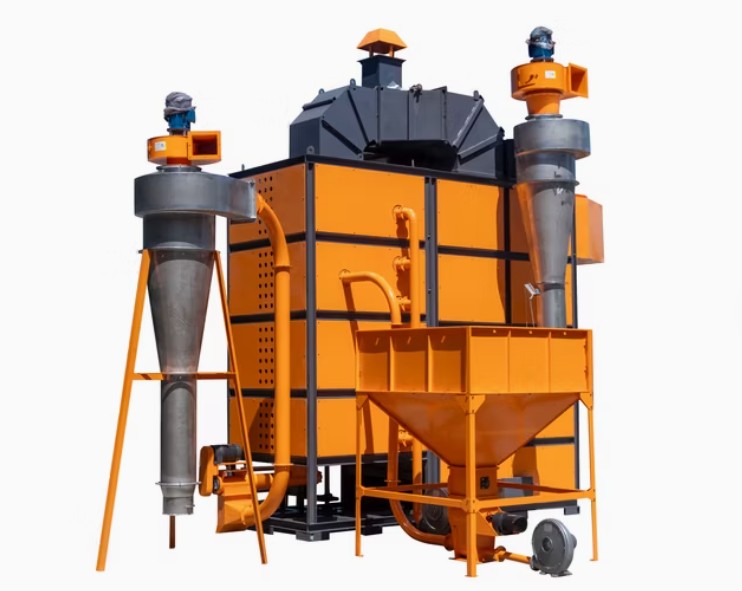

CY5L-50
500,000 kcal/hr
Weight4,232 KG
Dimension4055×1600×3495
Husk Use30–45 kg/hr
Hot Air30711–46067 m³/h
Pairs With5H-10/12 × 4sets
Common Features — All 3 Models
Indirect hot air heating — combustion gases never contact grain, food safety fully guaranteed
Thermal efficiency ≥80% with rice hull — industry-leading fuel efficiency, lowest operating cost
Output air temperature 60–120°C — full range for paddy, wheat, maize and oilseed drying
Auto temperature control — hot air maintained at setpoint without manual adjustment
Applied fuel: rice hull, wood, straw, anthracite — flexible for any farm or mill setup
Power 3.12 KW — extremely low electricity consumption for the heat produced
Fuel Options

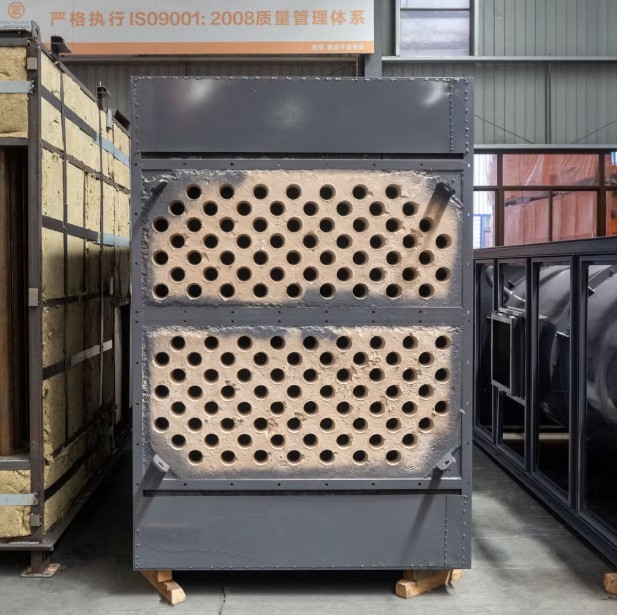

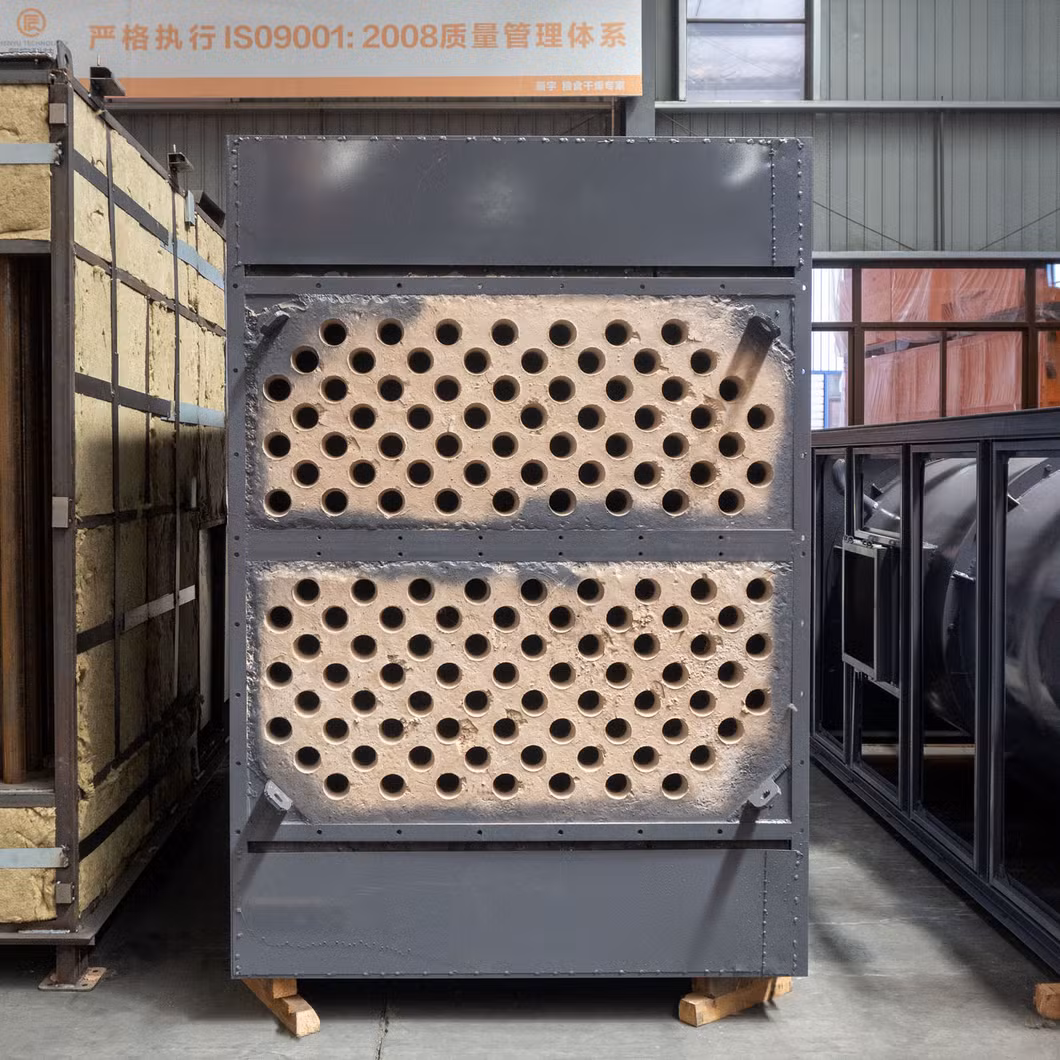

High-Quality Stainless Steel — Thickened Plate Construction
- Made of high-quality stainless steel with thickened plate usage — ensures quality, durable and trustworthy

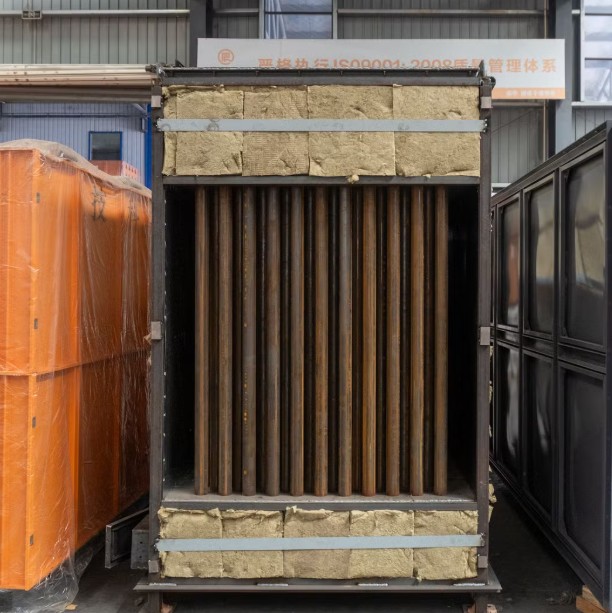

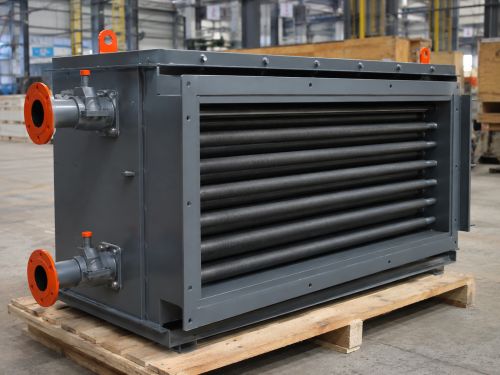

- Heat exchanger tubes made to precision — maximises heat transfer from combustion to clean air stream
- Strong corrosion resistance — handles rice husk, wood and straw combustion byproducts without degradation
- Built for long-term continuous operation in high-temperature environments — service life of 10+ years
Indirect Heating — ≥80% Thermal Efficiency
- Indirect hot air heating — combustion gases are completely separated from the air delivered to the dryer
- Thermal efficiency ≥80% with rice hull — industry-leading fuel efficiency, lowest possible operating cost
- Output air temperature range 60–120°C — controllable for paddy, wheat, maize and oilseed requirements
- Cyclone dust separation — removes ash and particulates from hot air before it enters the dryer
Auto Feeding & Temp Control — Minimal Labour Required

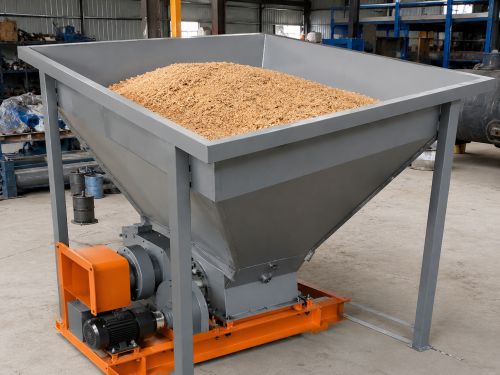

- Manual or automatic feeding mode — chaff optional, flexible for different farm setups
- Automatic constant temperature device — hot air output maintained at setpoint without manual adjustment

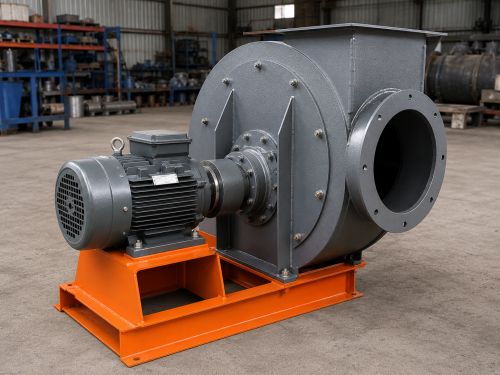

- Exhaust fan model 4-72-3.2A — powerful and efficient air circulation for the full dryer system
- Fuel: rice hull, wood, straw, anthracite — use free farm waste for near-zero operating cost
Pairs With All Dryer Series — One Furnace, Any Capacity
- CY5L-30 pairs with 2 sets of 5H-10 / 5H-12 / 5HCY-15H dryers — suited for small to medium mills
- CY5L-40 pairs with 3 sets of 5H-10 / 5H-12 / 5HCY-15H dryers — suited for medium scale operations
- CY5L-50 pairs with 4 sets of 5H-10 / 5H-12 / 5HCY-15H dryers — suited for large rice mills and mandis

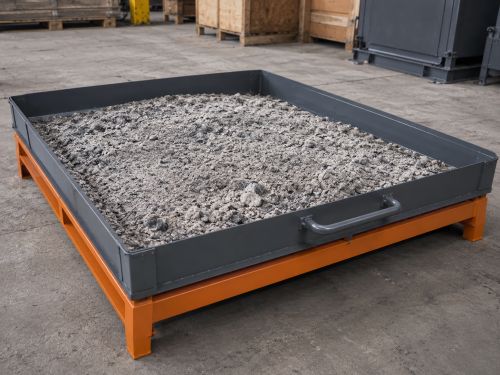

- Husk ash rich in potassium, phosphorous and calcium — valuable organic fertiliser byproduct from operation
Key Technical Features
300K – 500K kcal/hr
Three models from 300,000 to 500,000 kcal/hr — scale to match your dryer system capacity exactly.
≥80% Thermal Efficiency
Industry-leading thermal efficiency with rice hull — lowest fuel cost per unit of heat produced.
60–120°C Output Air
Controllable output air temperature range — suitable for all grain types from paddy to oilseed.
Indirect Heating
Combustion gases completely separated from hot air delivered to dryer — food safety fully guaranteed.
Auto Temp Control
Automatic constant temperature device — hot air maintained at setpoint without manual intervention.
Multi-Fuel Compatible
Rice husk, wood, straw, anthracite — use free farm waste for near-zero operating cost.
Cyclone Dust Separation
Removes ash and particulates from hot air before it reaches the dryer — clean air, clean grain.
SS Thickened Plate
High-quality stainless steel with thickened plates — strong corrosion resistance, long service life.
3.12 KW Total Power
Extremely low electricity consumption for the heat output produced — very economical to run.
Eco Friendly
Uses renewable biomass fuel — husk ash is a natural fertiliser rich in potassium and phosphorous.
Full Safety Devices
Thermal-over relay, auto constant temp device, hot air temp sensor, overheat and leakage protection.
Pairs With All Series
Compatible with all Cross Flow and Mixed Flow dryer series — Cross Flow Auger, Non-Auger, Mixed Flow.
Technical Specifications
Swipe left to see all columns
| Parameter | CY5L-30 | CY5L-40 | CY5L-50 |
|---|---|---|---|
| Rated Heat (kcal/hr) | 300,000 | 400,000 | 500,000 |
| Overall Dimension (mm) | 3860×1400×3135 | 4055×1600×3135 | 4055×1600×3495 |
| Weight (KG) | 3,154 | 3,668 | 4,232 |
| Output Air Temp (°C) | 60 – 120 | ||
| Heating Mode | Indirect Hot Air — Auto Temperature Controlling | ||
| Ignition Mode | Manual | ||
| Feeding Mode | Manual / Automatic (chaff optional) | ||
| Exhaust Fan Model | 4-72-3.2A | ||
| Output Hot Air (m³/h) | 13,353 – 26,706 | 26,706 – 40,059 | 30,711 – 46,067 |
| Thermal Efficiency | ≥ 80% (with rice hull) | ||
| Applied Fuel | Rice Hull · Wood · Straw · Anthracite | ||
| Voltage / Frequency | Three Phase 415V · Single Phase 220V / 50Hz (can be customized) | ||
| Power (KW) | 3.12 | ||
| Rice Husk Consumption | 15 – 30 kg/hr | 20 – 35 kg/hr | 30 – 45 kg/hr |
| Compatible Dryer Combinations | |||
| 5H-10 Dryers | 2 sets | 3 sets | 4 sets |
| 5H-12 Dryers | 2 sets | 3 sets | 4 sets |
| 5HCY-15H Dryers | 2 sets | 3 sets | 4 sets |
| Safety Device — All Models | |||
| Safety Device | Thermal-over relay · Auto constant temperature device · Hot air temperature sensor · Overheat protection device · Leakage protection device | ||
| HS Code | 8436800000 | ||
