Mixed Flow Grain Dryer With Auger — 15T to 50T

See the Difference

❌ Before Drying

✅ After Drying

🌾 Paddy / Rice

🌾 Paddy / Rice

🌽 Maize

🫘 Soybean

≤ 0.5% broken grain — gentle indirect drying preserves quality, weight & market value

🌊 MIXED FLOW WITH AUGER 3 Models15T – 50T

Mixed Flow Grain Dryer With Auger
5HCY-15H · 5HCY-30 · 5HCY-50

Large capacity mixed flow dryers with auger for paddy, maize, wheat and rapeseed. First domestic corner box structure ensures superior drying uniformity. Ideal for large rice mills, mandi operations and industrial agri-processing plants.

Model 5HCY-15H — 15 Ton Batch

15T batch — mixed flow corner box structure for superior grain contact and uniform drying

Weight 3,200 KG — overall dimension 4320 × 2492 × 10370 mm

Total motor power 7.87 KW — 1 fan, effective volume 27.12 m³, productivity ≥15 t/h

Drying layer 2400 mm, tempering layer 5570 mm — optimised for paddy and wheat

Paddy / RiceMaizeWheatSoybean

Basic Info — 5HCY-15H (15T)

Model NO.	5HCY-15H
Loading Capacity	15T
Overall Dimension	4320 × 2492 × 10370 mm
Weight	3,200 KG
Total Motor Power	7.87 KW
Drying Rate	0.8 – 2.0 (%/h)
Broken Rate	≤ 0.5%
Voltage / Frequency	Three Phase 415V / 220V / 50Hz
HS Code	8433520000

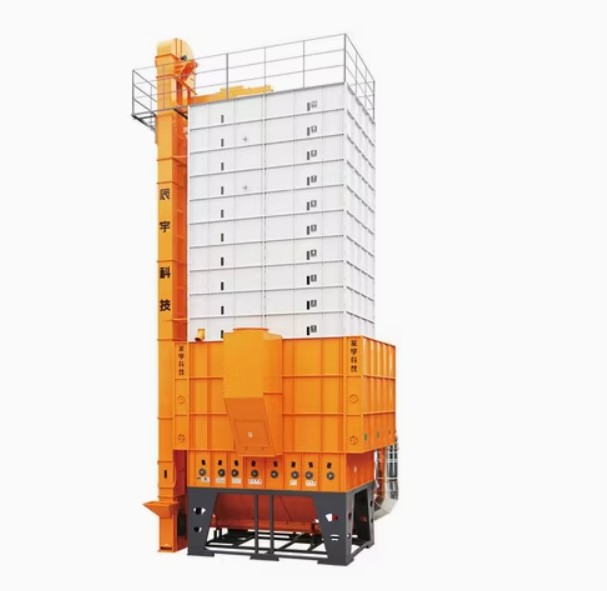

Model 5HCY-30 — 30 Ton Batch

30T batch — high volume drying for large rice mills and mandi operations

Weight 8,000 KG — overall dimension 5500 × 5250 × 11430 mm

Total motor power 19.4 KW — 2 fans, effective volume 59.8 m³, productivity ≥30.5 t/h

Full PLC automation — one operator manages entire drying cycle efficiently

30T BatchHigh VolumePLC Auto

Basic Info — 5HCY-30 (30T)

Model NO.	5HCY-30
Loading Capacity	30T
Overall Dimension	5500 × 5250 × 11430 mm
Weight	8,000 KG
Total Motor Power	19.4 KW
Drying Rate	0.8 – 2.0 (%/h)
Broken Rate	≤ 0.5%
Voltage / Frequency	Three Phase 415V / 220V / 50Hz

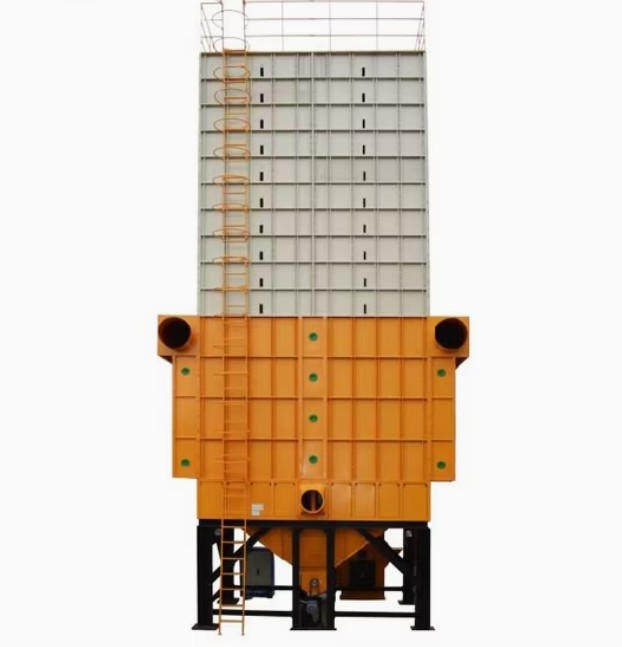

Model 5HCY-50 — 50 Ton Batch

50T batch — industrial-scale agri-processing plants and large mandis

Weight 12,000 KG — overall dimension 8000 × 5800 × 13300 mm

Total motor power 34.35 KW — 3 fans, effective volume 89.5 m³, productivity ≥50 t/h

Broken rate ≤ 0.5% maintained at full 50T capacity

50T BatchIndustrialLarge Mandi

Basic Info — 5HCY-50 (50T)

Model NO.	5HCY-50
Loading Capacity	50T
Overall Dimension	8000 × 5800 × 13300 mm
Weight	12,000 KG
Total Motor Power	34.35 KW
Drying Rate	0.8 – 2.0 (%/h)
Broken Rate	≤ 0.5%
Voltage / Frequency	Three Phase 415V / 220V / 50Hz

Get Free Quote WhatsApp +91 70115 54903

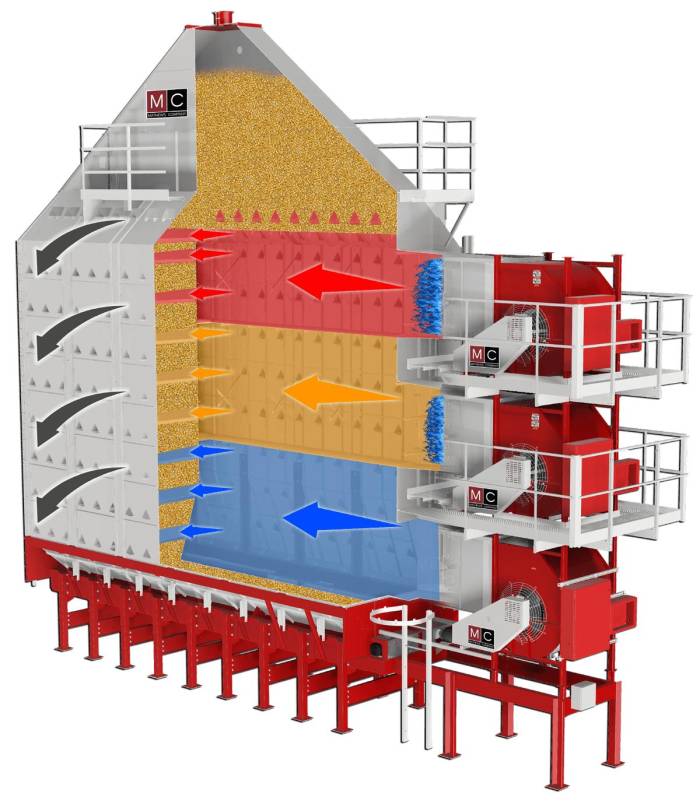

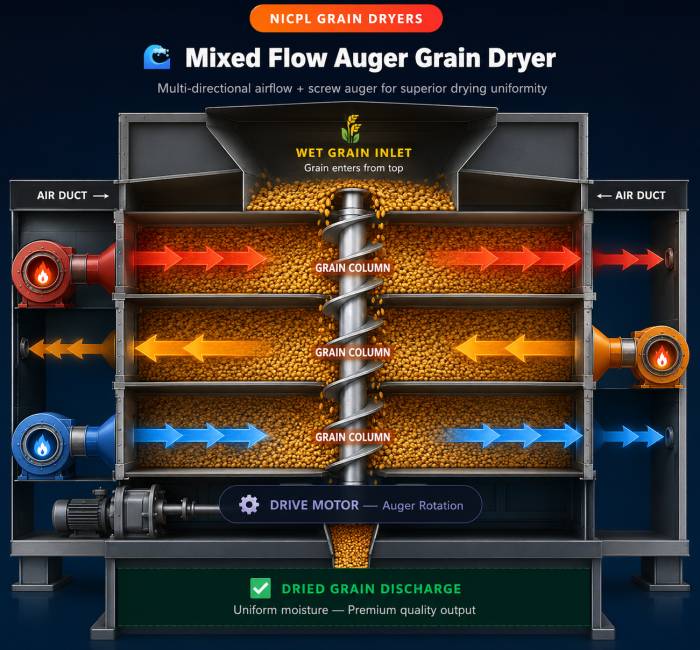

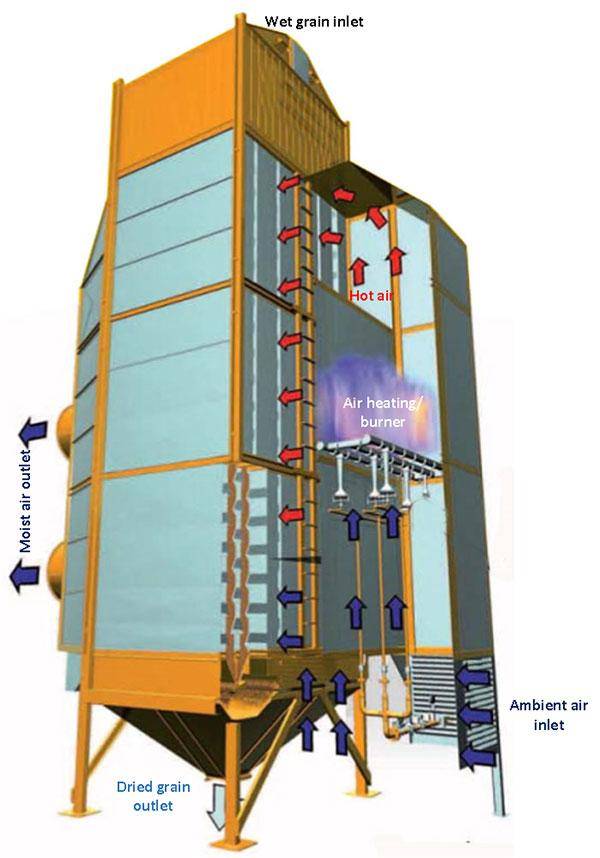

Mixed Flow Technology — Superior Drying Uniformity

Mixed flow design provides superior grain contact with hot air — more uniform drying than cross flow
Faster drying rate 0.8–2.0%/h — suited for high-moisture harvest grain during Indian monsoon season
Indirect heating — no combustion gases contact grain, preserving quality and food safety
Broken rate ≤ 0.5% maintained from 15T to 50T capacity — grain quality always protected

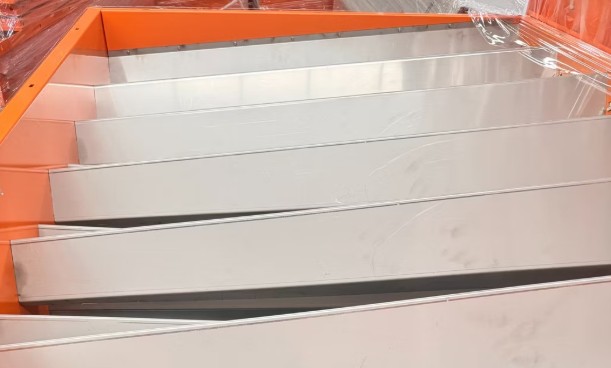

First Domestic Corner Box Structure — High Strength, No Deformation

Uses the first domestic corner box structure — can meet the drying needs of different types of grains
High strength without deformation — ensures reasonable grain discharge in the drying layer throughout long-term use
Stable flow rate and high drying rate — with mix grain-discharging wheels, running fast and efficiently
Applicable across all three models 15T, 30T and 50T — consistent performance at every capacity

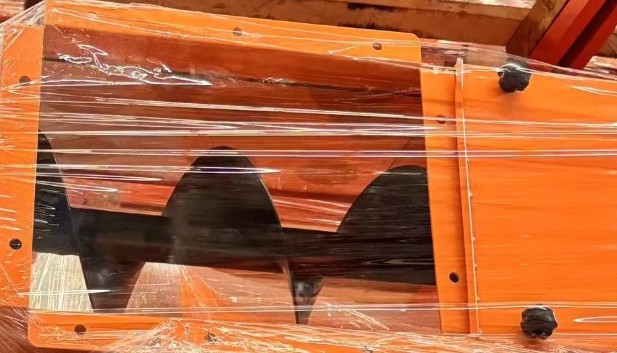

Connecting-Rod Lower Winch — 98% Grain Discharge Rate

The hoist adopts new structure design to guide grain — reduces grain damage by 80% vs conventional designs
Lower winch uses connecting-rod structure design — grain discharge rate reaches 98% with minimal residue
Cancels the hanging dragon structure — eliminates physical grain fragmentation during discharge
PP dustbin made of thick wear-resistant material — thickened conveyor belt reduces long-term maintenance costs

Using Siemens Electrical Appliances

A globally renowned brand with high stability and guaranteed quality — reducing equipment failures significantly
High reliability with a global supply chain — convenient for maintenance and replacement anywhere in India
High quality construction ensures longer service life and higher control accuracy across all batch sizes
Fully automated PLC control — one operator manages the entire drying cycle from loading to discharge

15T to 50T — Scalable for Any Operation

Three models — 5HCY-15H (15T), 5HCY-30 (30T), 5HCY-50 (50T) — match your exact capacity needs
PLC automatic control with online moisture monitoring standard across all three models
Husk or biomass furnace compatible — run entirely on rice mill waste for near-zero fuel cost
Three-phase 415V supply — standard in Indian industrial installations, can be customized

Key Technical Features

🌡️

Indirect Heating

Hot air never contacts combustion gases — grain quality and food safety fully protected.

🎛️

PLC Microcomputer Control

Fully automated drying cycle — hot air temperature and fan volume auto-adjusted throughout.

💧

Online Moisture Meter

Real-time moisture monitoring — stops drying at target content, no over-drying, no weight loss.

🌾

≤0.5% Broken Rate

Gentle drying at controlled low temperature — grain quality and germination rate preserved.

♻️

Husk / Biomass Compatible

Run on rice husk, wood chips, straw or corn cob — near-zero fuel cost from farm waste.

📐

Corner Box Structure

First domestic corner box design — high strength without deformation, stable flow rate, high drying rate.

⚡

Siemens Electrical

Globally certified Siemens components — high stability, global spares supply chain, easy India maintenance.

🛡️

Full Safety Devices

Full grain alarm, thermal relay, temperature controller, grain temp sensor, overload and leakage protection standard.

📦

Modular & Portable

Small volume after dismantling — easy to transport between sites and reinstall as needed.

🔄

98% Discharge Rate

Connecting-rod lower winch structure — 98% grain discharge with minimal residue each cycle.

🌊

Mixed / Cross Flow

Superior grain contact with hot air — uniform drying across every batch at every capacity level.

🌿

Multi-Crop Versatile

One dryer handles paddy, wheat, maize, rapeseed and other seeds — maximise ROI on single investment.

Technical Specifications

Swipe left to see all columns

Parameter	5HCY-15H (15T)	5HCY-30 (30T)	5HCY-50 (50T)
Structure	Batch Type Circulating
Drying Way	Indirect Heating — Mixed Flow
Loading Capacity	15T	30T	50T
Overall Dimension (mm)	4320×2492×10370	5500×5250×11430	8000×5800×13300
Weight	3,200 KG	8,000 KG	12,000 KG
Total Motor Power	7.87 KW	19.4 KW	34.35 KW
Number of Fans	1	2	3
Effective Volume (m³)	27.12	59.8	89.5
Drying Layer Height (mm)	2400	2400	3200
Tempering Layer Height (mm)	5570	5830	5300
Productivity (t/h)	≥ 15	≥ 30.5	≥ 50
Drying Rate (%/h)	0.8 – 2.0
Broken Rate	≤ 0.5%

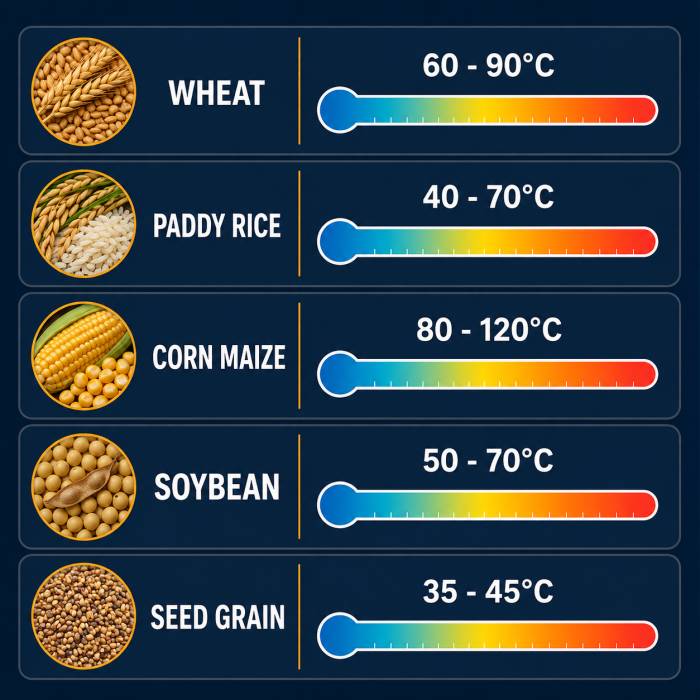

Hot Air Temp Range (°C)	40 – 90
Voltage / Frequency	Three Phase 415V · Single Phase 220V / 50Hz (can be customized)
Fuel Options	Rice Husk · Wood · Straw · Corn Cob · Biomass · Gas · Coal · Diesel
Standard Equipment & Safety — All Models
Electrical Brand	Siemens
Safety Devices	Full grain alarm · Thermal relay · Temperature controller · Grain temperature sensor · Hot air temperature sensor · Overload protection · Leakage protection
Standard Device	Online moisture meter · Online temperature detector · Dryer base · Discharging layer · Drying layer · Tempering layer · Elevator · Hot air blower · Guard railing · Ladders
