Mixed Flow Grain Dryer Non Auger — 15T & 30T

See the Difference

❌ Before Drying

✅ After Drying

🌾 Paddy / Rice

🌾 Paddy / Rice

🌽 Maize

🫘 Soybean

≤ 0.5% broken grain — gentle indirect drying preserves quality, weight & market value

💨 MIXED FLOW NON AUGER 2 Models15T – 30T

Mixed Flow Grain Dryer
Non Auger — 15T & 30T

Mixed flow dryers without auger — grains fall freely for even distribution with lower grain damage. Modular design for easy maintenance. Suitable for paddy, wheat, soybean, peanut and oilseeds. Siemens PLC automation standard on both models.

Model 5HWJL-15 — 15 Ton Batch

15T batch — no auger allows grains to fall freely, ensuring even distribution and lower grain damage rate

Weight 3,800 KG — overall dimension 3500 × 5543 × 13340 mm

Total motor power 7.55 KW — reduced motor count vs auger type, saving customer energy costs

Drying rate 0.8–2.0 %/h — faster than cross flow, suited for high-moisture harvest grain

Application

Paddy / RiceWheatSoybeanPeanutOilseed

Basic Info — 5HWJL-15 (15T)

Model NO.	5HWJL-15
Loading Capacity	15T
Overall Dimension	3500 × 5543 × 13340 mm
Weight	3,800 KG
Total Motor Power	7.55 KW
Drying Rate	0.8 – 2.0 (%/h)
Broken Rate	≤ 0.5%
Voltage / Frequency	Three Phase 415V / 220V / 50Hz
HS Code	8433520000

Get Free Quote WhatsApp +91 70115 54903

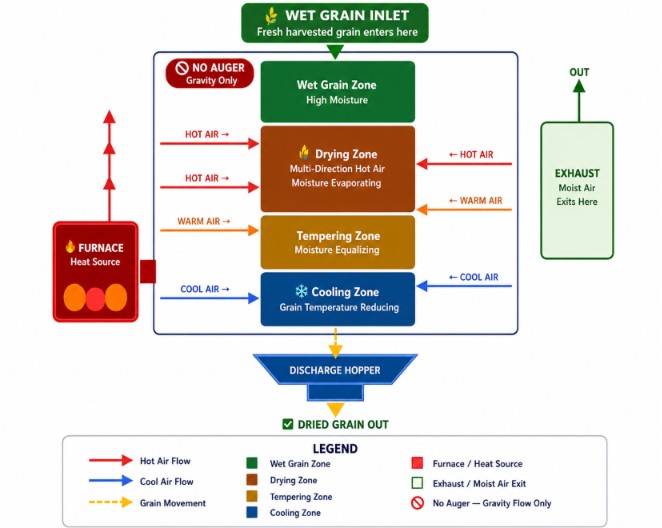

No Auger Design — Free Falling Grain, Lower Damage Rate

No auger design allows grains to fall freely — ensures even distribution throughout the drying layer
Reduces the rate of grain damage compared to auger type — preserves grain value and quality
Reduces motor usage vs auger type — greatly reducing customer energy costs and saving resources
Simple structure with small volume after dismantling — easy for transportation and movement between sites

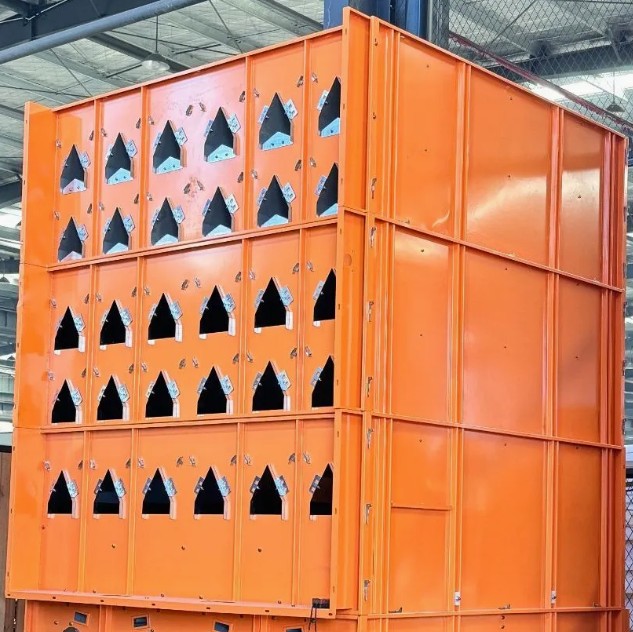

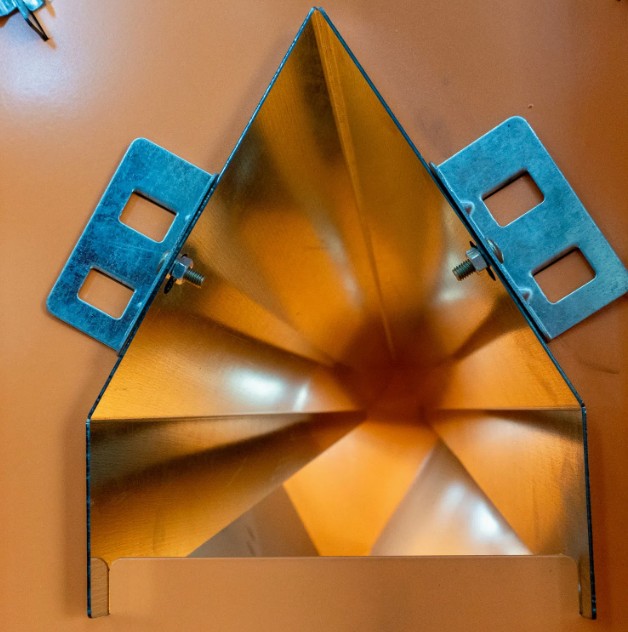

First Domestic Corner Box Structure — High Strength, No Deformation

Uses the first domestic corner box structure — can meet the drying needs of different types of grains
High strength without deformation — ensures reasonable grain discharge in the drying layer
Stable flow rate and high drying rate — with mix grain-discharging wheels, running fast and efficiently
Applicable on both 15T and 30T models — consistent performance at every capacity

Unique Drying Process — Tempering Bin & Double Dust Removal

Unique drying process with tempering bin — grain rests after drying to equalise moisture throughout batch
Double dust remove function — grain comes out cleaner, reducing post-harvest cleaning requirements

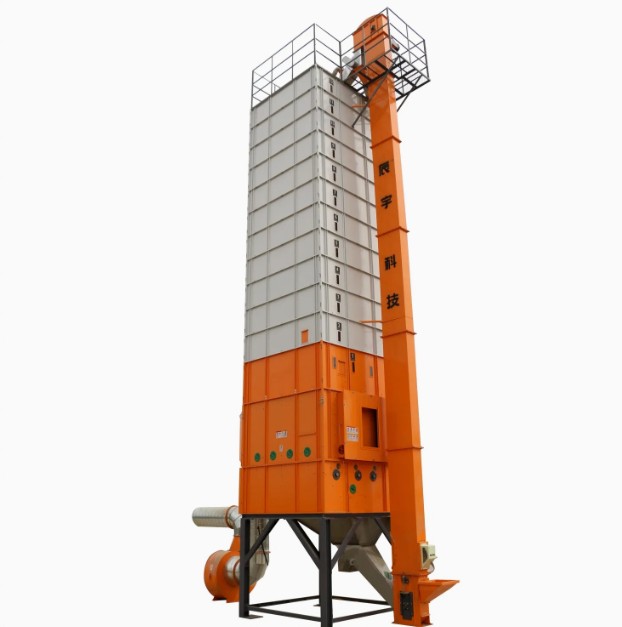

30T model: 8,000 KG weight, dimension 5000 × 5800 × 13540 mm — built for permanent installation
Motor power 21.3 KW — powerful mixed flow circulation ensures uniform large-batch drying

Siemens Electrical — Globally Certified, India-Ready

A globally renowned brand with high stability and guaranteed quality — reducing equipment failures significantly
High reliability with a global supply chain — convenient for maintenance and replacement anywhere in India
Online moisture meter standard on both models — stops drying precisely at target moisture, no over-drying
Highly automated operation with microcomputer PLC — reduces labour to one operator, improves efficiency

Advanced Indirect Heating — Food Safe, Pollution Free

Indirect heating technology — combustion gases never contact grain, guaranteeing food safety throughout
Hot air temperature range 40–90°C — gentle low temperature drying preserves germination rate and nutritional value
Variety of heat sources — biomass, husk, wood, gas, coal or diesel — flexible for any farm setup
Full safety devices — full grain alarm, thermal relay, temperature controller, overload and leakage protection standard

Key Technical Features

🌡️

Indirect Heating

Hot air never contacts combustion gases — grain quality and food safety fully protected.

🎛️

PLC Microcomputer Control

Fully automated drying cycle — hot air temperature and fan volume auto-adjusted throughout.

💧

Online Moisture Meter

Real-time moisture monitoring — stops drying at target content, no over-drying, no weight loss.

🌾

≤0.5% Broken Rate

Gentle drying at controlled low temperature — grain quality and germination rate preserved.

♻️

Husk / Biomass Compatible

Run on rice husk, wood chips, straw or corn cob — near-zero fuel cost from farm waste.

📐

Corner Box Structure

First domestic corner box design — high strength without deformation, stable flow rate, high drying rate.

⚡

Siemens Electrical

Globally certified Siemens components — high stability, global spares supply chain, easy India maintenance.

🛡️

Full Safety Devices

Full grain alarm, thermal relay, temperature controller, grain temp sensor, overload and leakage protection standard.

📦

Modular & Portable

Small volume after dismantling — easy to transport between sites and reinstall as needed.

🔄

98% Discharge Rate

Connecting-rod lower winch structure — 98% grain discharge with minimal residue each cycle.

🌊

Mixed / Cross Flow

Superior grain contact with hot air — uniform drying across every batch at every capacity level.

🌿

Multi-Crop Versatile

One dryer handles paddy, wheat, maize, rapeseed and other seeds — maximise ROI on single investment.

Technical Specifications

Swipe left to see all columns

Parameter	5HWJL-15 (15T)	5HWJL-30 (30T)
Structure	Batch Type Circulating
Drying Way	Indirect Heating — Mixed Flow — No Auger
Loading Capacity	15T	30T
Overall Dimension (mm)	3500×5543×13340	5000×5800×13540
Weight	3,800 KG	8,000 KG
Total Motor Power	7.55 KW	21.3 KW
Drying Rate (%/h)	0.8 – 2.0
Broken Rate	≤ 0.5%
Hot Air Temp Range (°C)	40 – 90
Voltage / Frequency	Three Phase 415V · Single Phase 220V / 50Hz (can be customized)
Fuel Options	Rice Husk · Wood · Straw · Corn Cob · Biomass · Gas · Coal · Diesel
Standard Equipment & Safety — Both Models
Electrical Brand	Siemens
Special Feature	No auger — grains fall freely · Even distribution · Lower damage rate · Reduced motor usage
Drying Process	Unique tempering bin process · Double dust remove function
Safety Devices	Full grain alarm · Thermal relay · Temperature controller · Grain temp sensor · Hot air temp sensor · Overload protection · Leakage protection

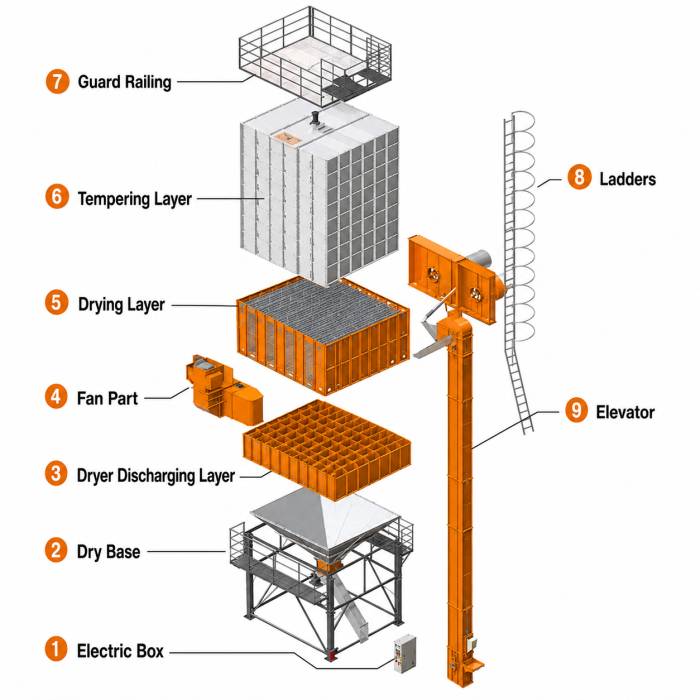

Standard Device	Online moisture meter · Online temp detector · Dryer base · Discharging layer · Drying layer · Tempering layer · Elevator · Hot air blower · Guard railing · Ladders
Suitable Crops	Paddy · Wheat · Maize · Soybean · Peanut · Oilseed · Rapeseed

Model NO.	5HWJL-30
Loading Capacity	30T
Overall Dimension	5000 × 5800 × 13540 mm
Weight	8,000 KG
Total Motor Power	21.3 KW
Drying Rate	0.8 – 2.0 (%/h)
Broken Rate	≤ 0.5%
Voltage / Frequency	Three Phase 415V / 220V / 50Hz
