Cross Flow Grain Dryer Non Auger — 15T & 21T

See the Difference

❌ Before Drying

✅ After Drying

🌾 Paddy / Rice

🌾 Paddy / Rice

🌽 Maize

🫘 Soybean

≤ 0.5% broken grain — gentle indirect drying preserves quality, weight & market value

🔄 CROSS FLOW NON AUGER 2 Models15T – 21T

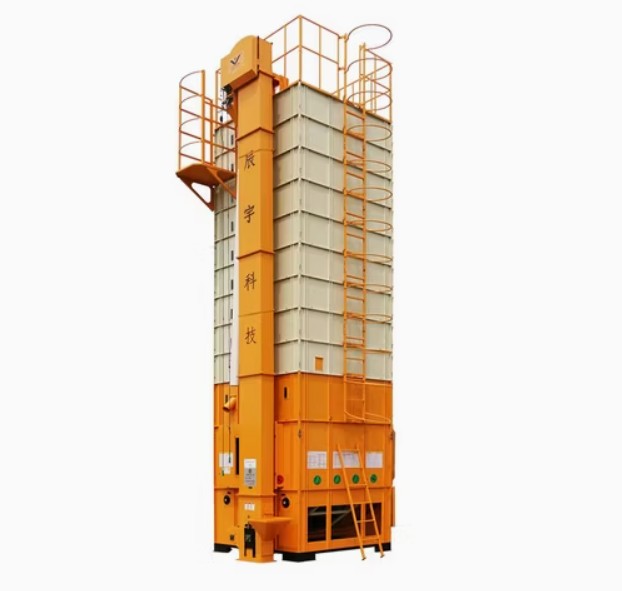

Cross Flow Grain Dryer
Non Auger — 15T & 21T

Batch type circulation dryer without auger — simplified structure for easier maintenance and cleaning. Indirect heating via husk or biomass burner. Online moisture monitor and full automatic PLC control standard on both models.

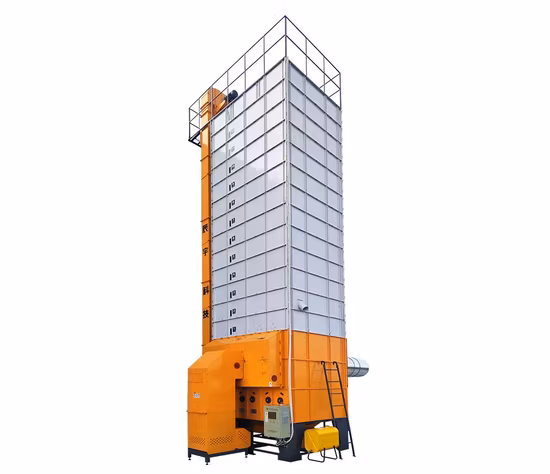

Model 15 — 15 Ton Batch

15T cyclic batch — paddy 2,300–15,000 kg | wheat 2,700–15,000 kg per cycle

Motor power 6.4 kW — fan model 4-72-6A, air flow 6,677–13,353 m³/h

Drying capacity >10.5 t%/h — consistent throughput for medium scale mills

Online moisture meter and auto temperature control — no over-drying, no quality loss

Total weight 3,800 KG — dimensions 2100×2080×10327 mm

Application

Paddy / RiceWheatMaizeOilseedRapeseed

Basic Info — Model 15 (15T)

Cyclic Batch	15 Ton
Paddy Capacity	2,300 – 15,000 kg
Wheat Capacity	2,700 – 15,000 kg
Total Weight	3,800 KG
Dimension (mm)	2100 × 2080 × 10327
Motor Power	6.4 KW
Drying Capacity	> 10.5 t%/h
Drying Rate	0.5 – 1.2 (%/h)
Voltage / Frequency	Three Phase 415V / 220V / 50Hz
HS Code	8433520000

Get Free Quote WhatsApp +91 70115 54903

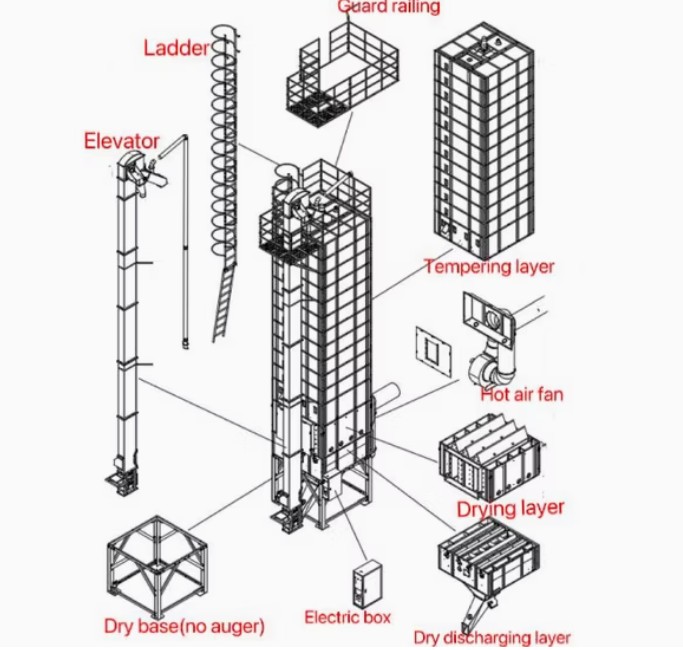

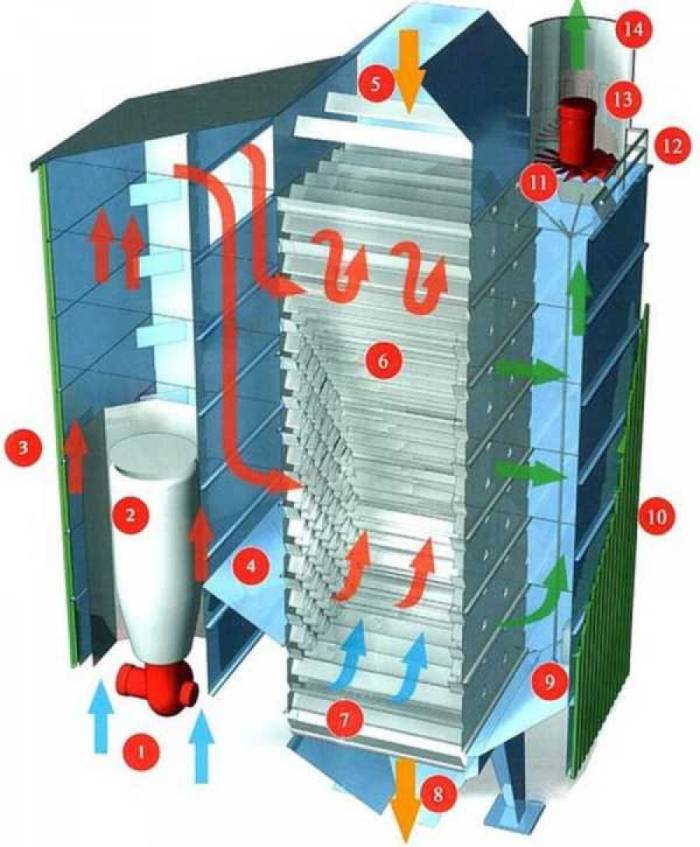

Batch Circulation Without Auger — Simpler, Easier to Maintain

No auger design reduces mechanical complexity — fewer moving parts, easier cleaning between batches
Batch type circulating structure — grain continuously circulated through drying and tempering zones
Simple structure with small volume after dismantling — easy for transportation between sites
Increased drying area — drying speed accelerated while maintaining grain quality

High-Quality Stainless Steel Drying Layer Mesh

Drying layer mesh plate made of high-quality stainless steel — strong corrosion resistance and longer service life
Mesh aperture 2.5–3.0 mm — ensures even passage of grains and more uniform heating throughout the batch
Better temperature transfer effect — hot air passes uniformly across the full grain bed
Applicable on both 15T and 21T models — consistent quality on all batch sizes

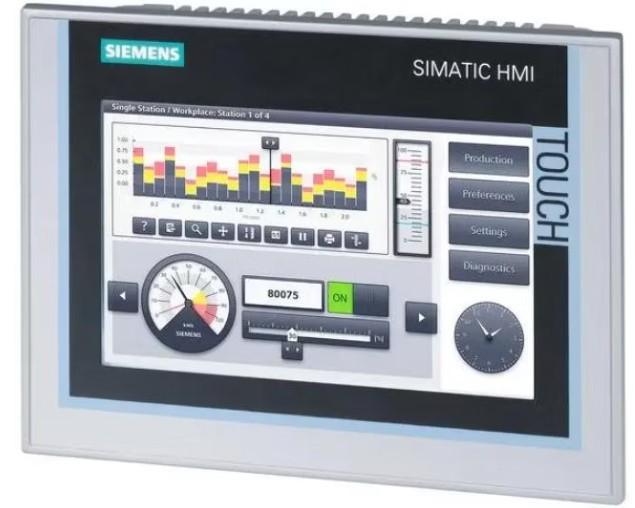

Siemens PLC — Intelligent Automatic Control

User-friendly Siemens control panel with large letters and clear display — easy to operate
Hot air temperature and circulation speed computed automatically based on loaded amount, outside temperature and moisture value
Online moisture monitor — automatic control stops drying precisely at target moisture content
Highly automated — reduces labour to one operator, improves efficiency

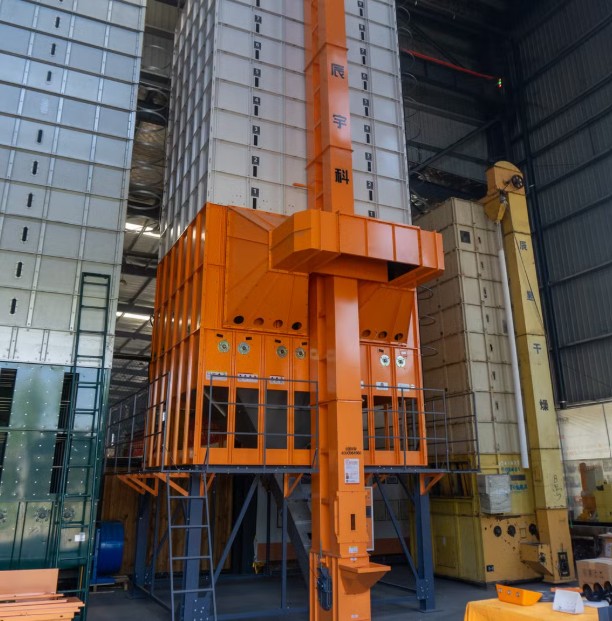

H-Shaped Steel Frame — 5mm Thickness

H-shaped structural steel used throughout — more sturdy and reliable with a longer service life
Steel thickness reaches 5mm — provides peace of mind during heavy-duty continuous use
Engineered for permanent installation in rice mills and agri-processing plants
Robust construction handles repeated loading, unloading and thermal cycling without fatigue

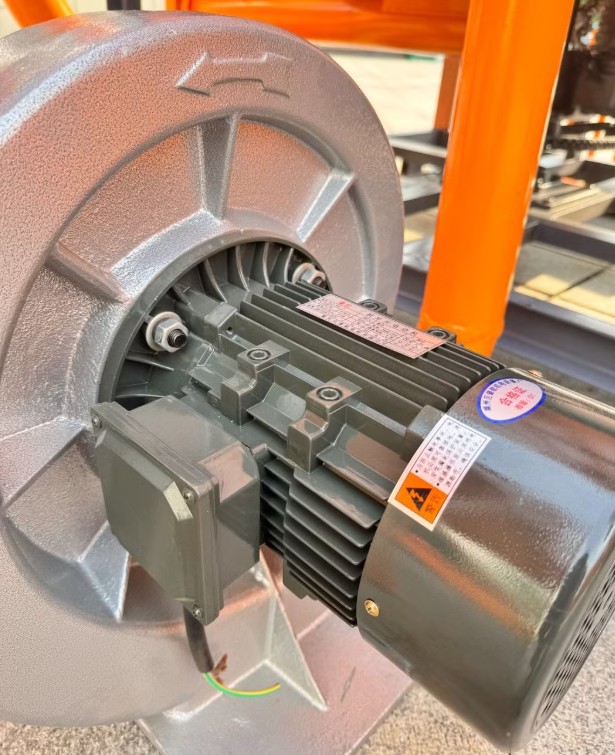

High-Quality Motors — Lower Long-Term Cost

High-quality motors with longer lifespan — saves customers on later maintenance and replacement costs
Model 15: 6.4 kW | Model 21: 10.9 kW total motor power
Variety of heat sources — biomass, husk, wood, gas, coal or diesel
Full safety devices — grain temperature sensor, fault alarm, full load buzzer, thermal relay, overload and leakage protection standard

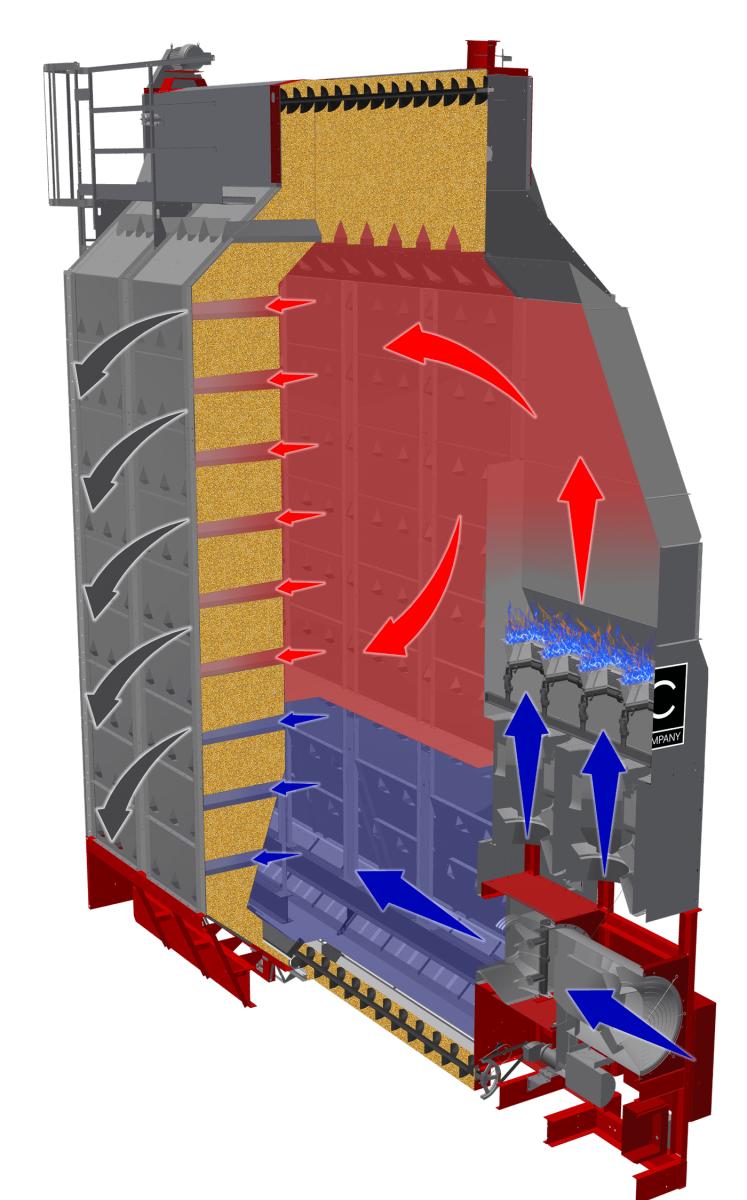

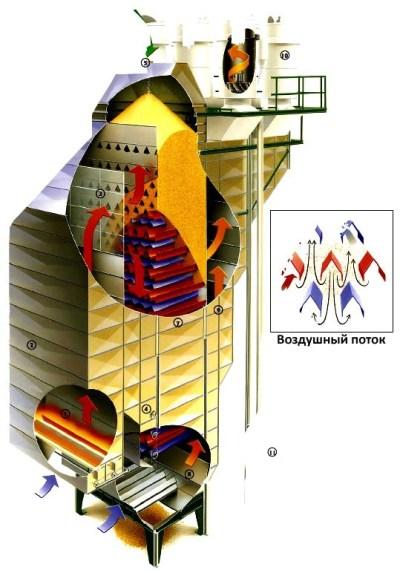

Advanced Low Temperature Indirect Heating Technology

Advanced batch type low temperature circulation drying — improves drying speed and quality efficiently
Indirect heating — non-pollution, removes dust from grain, combustion gases never contact grain
Crack rate less than 3% and grind rate less than 0.5% — both superior to national standard JB/T10268
Wide application range — paddy, wheat, corn, rapeseed and other seeds all supported

Key Technical Features

🌡️

Indirect Heating

Hot air never contacts combustion gases — grain quality and food safety fully protected.

🎛️

PLC Microcomputer Control

Fully automated drying cycle — hot air temperature and fan volume auto-adjusted throughout.

💧

Online Moisture Meter

Real-time moisture monitoring — stops drying at target content, no over-drying, no weight loss.

🌾

≤0.5% Broken Rate

Gentle drying at controlled low temperature — grain quality and germination rate preserved.

♻️

Husk / Biomass Compatible

Run on rice husk, wood chips, straw or corn cob — near-zero fuel cost from farm waste.

📐

Corner Box Structure

First domestic corner box design — high strength without deformation, stable flow rate, high drying rate.

⚡

Siemens Electrical

Globally certified Siemens components — high stability, global spares supply chain, easy India maintenance.

🛡️

Full Safety Devices

Full grain alarm, thermal relay, temperature controller, grain temp sensor, overload and leakage protection standard.

📦

Modular & Portable

Small volume after dismantling — easy to transport between sites and reinstall as needed.

🔄

98% Discharge Rate

Connecting-rod lower winch structure — 98% grain discharge with minimal residue each cycle.

🌊

Mixed / Cross Flow

Superior grain contact with hot air — uniform drying across every batch at every capacity level.

🌿

Multi-Crop Versatile

One dryer handles paddy, wheat, maize, rapeseed and other seeds — maximise ROI on single investment.

Technical Specifications

Swipe left to see all columns

Parameter	Model 15 (15T)	Model 21 (21T)
Structure	Batch Type Circulation
Drying Way	Indirect Heating — Cross Flow
Cyclic Batch	15 Ton	21 Ton
Paddy Capacity (kg)	2,300 – 15,000	5,000 – 21,000
Wheat Capacity (kg)	2,700 – 15,000	6,000 – 21,000
Total Weight (KG)	3,800	4,300
Dimension L×W×H (mm)	2100×2080×10327	2700×2080×9141
Dimension L×W×H (mm)	3157×481×12155	4180×3727×12735
Motor Power (KW)	6.4	10.9
Fan Model	4-72-6A	4.72-7.1A
Rated Air Flow (m³/h)	6,677 – 13,353	16,576 – 8,288
Drying Rate (%/h)	0.5 – 1.2
Drying Capacity (t%/h)	> 10.5	> 15
Hot Air Temp Range (°C)	40 – 90
Fuel Consumption (kg/h)	30–40 (rice hull)	40–60 (rice hull)
Voltage / Frequency	Three Phase 415V · Single Phase 220V / 50Hz
Loading & Unloading Time
Loading — Paddy (min)	45 – 55	55 – 70
Loading — Wheat (min)	45 – 60	50 – 65
Unloading — Paddy (min)	55 – 60	55 – 70
Unloading — Wheat (min)	55 – 60	50 – 65
Safety & Standard Equipment
Safety Device	Grain temperature sensor · Fault alarm · Full load buzzer · Over-temperature alarm · Thermal relay · Hot air temperature sensor · Overload protection · Leakage protection
Standard Device	Online moisture monitor · Conveying system · Unloading system · Drying system · Tempering system · Elevator · Exhaust fan (low noise) · Automatic control system
