X-RAY INSPECTION
TXR Standard Series
CE & FDA Certified

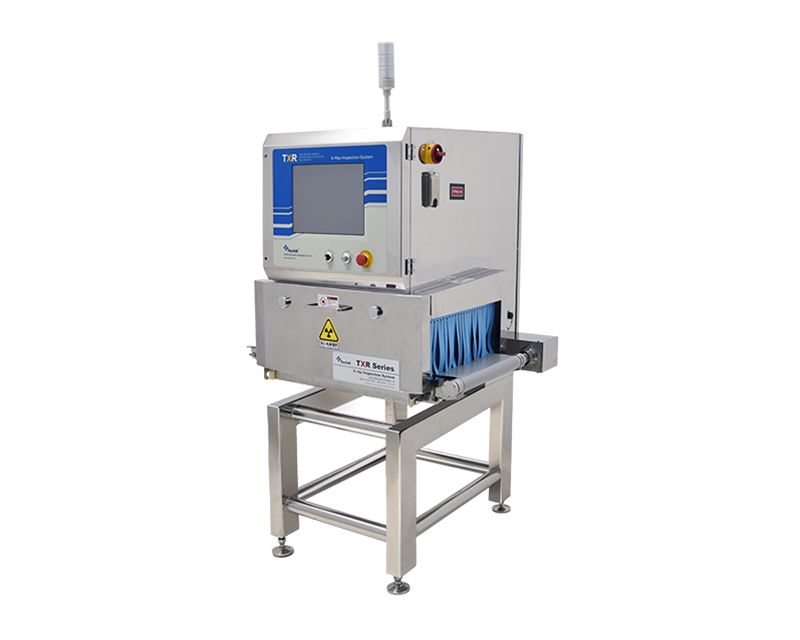

Standard X-Ray Inspection System For Packaged Food Products
NICPL Standard Series X-Ray Inspection System uses the penetrating power of X-ray to detect the full range of contaminants — metallic and non-metallic — inside sealed packages. Inspection is unaffected by temperature, humidity, salt content or packaging material type. Suitable for food, pharmaceutical and FMCG industries.
Description
▾
NICPL Standard Series X-Ray Inspection System uses the penetrating power of X-ray to detect the full range of contaminants — metallic and non-metallic — inside sealed packages. Inspection is unaffected by temperature, humidity, salt content or packaging material type. Suitable for food, pharmaceutical and FMCG industries.
What products is it suitable for?
▾
product identify
→

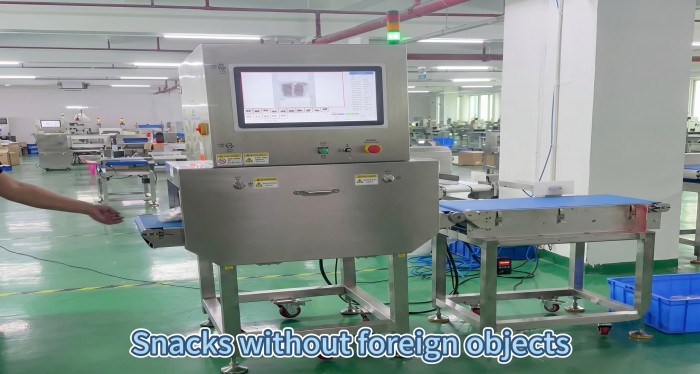

INPUT
✓

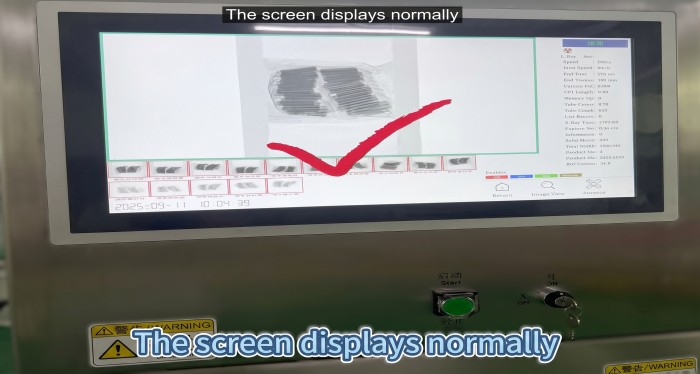

ACCEPT
✕
REJECT
Technical Specifications
▾
| Specification | TXR Standard |
|---|---|
| Brand | NICPL |
| Series | TXR Standard Series |
| Models Available | TXR-2480 / 4080 / 4080SH / 5080SH / 6080SH |
| X-ray Tube Power | 150W / 210W / 350W / 480W (Optional) |
| Inspection Width | 240mm / 400mm / 500mm / 600mm (by model) |
| Inspection Height | 160mm (standard) / 300mm (SH models) |
| Detects | Metal, Glass, Ceramic, Stone, Bone, Hard Rubber, Hard Plastic |
| Best Sensitivity — SS Ball | Φ0.3mm |
| Best Sensitivity — SS Wire | Φ0.2 × 2mm |
| Best Sensitivity — Glass | Φ0.8mm |
| Conveyor Speed | 10–90 m/min (10–40 m/min heavy load) |
| Display | 15-inch Touch Screen (Windows OS) |
| IP Rating | IP66 (Under Belt) |
| X-ray Leakage | < 1 μSv/h (CE Standard) |
| Working Temperature | -10°C to 40°C |
| Rejection Method | Alarm / Belt Stop / Auto Rejecter (optional) |
| Power Supply | 1.5 kW |
| Main Material | SUS304 Stainless Steel |
| Indian Dealer | NICPL — North India Compressors Pvt. Ltd. |
Features
▾
🔍 Contaminant Detection
⚠️ Auto Reject

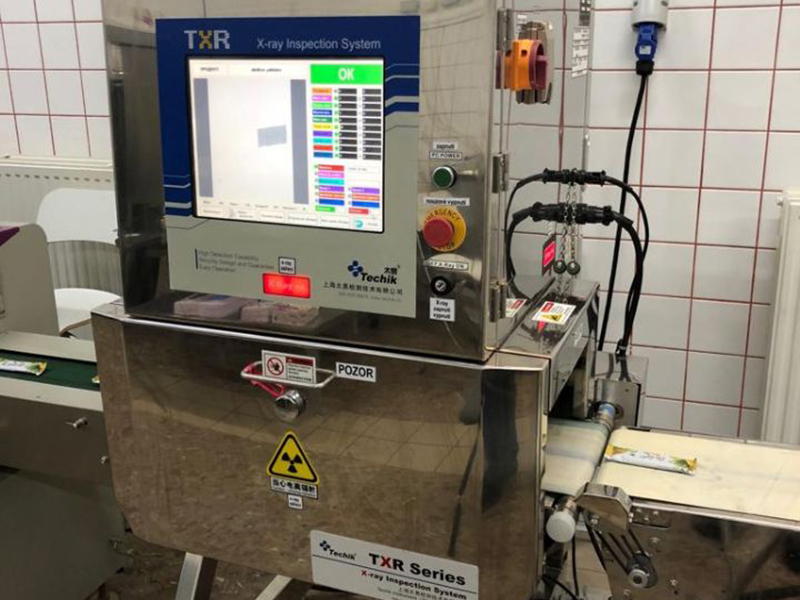

🖥️ Intelligent Operation
💻 Easy Product Setup
🔦 Contaminant Detection
⏏️ Real-Time Inspection

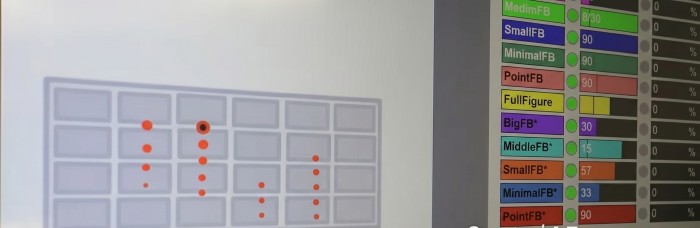

Contaminant Detection
- Detects metal, glass, ceramic, stone, bone, hard rubber and hard plastic — all in one pass
- X-ray penetrates sealed packaging — works on metallic, non-metallic and canned products
- Inspection completely unaffected by temperature, humidity, salt content or product composition
- Best-in-class sensitivity: SS ball Φ0.3mm, SS wire Φ0.2×2mm, glass/ceramic ball Φ0.8mm
Pre and After-Sales Service
▾
PRE-SALE
Consulting solution service
Configuration suggestion
Layout suggestion
HELP DESK
Remote troubleshooting
Remote machine adjusting
Fault de-escalation
ON-SITE
Routine inspection
Commissioning
Troubleshooting
SPARE PARTS
Spare parts supply
Warranty service
Key parts maintenance
TRAINING
Local training
HQ training
Standard warranty
🌟 Pre-Sale Service — NICPL
Consultation on selecting the optimal inspection system for your product
Support integrating with your existing production lines
Product testing available — attend and observe live at Kundli
🔧 After-Sale Service — NICPL
On-site service with quick response times across India
Warranty including free inspections and maintenance
24×7 support — call +91 70115 54903 anytime
Frequently Asked Questions
▾
What types of contaminants can the X-ray inspection machine detect?
The NICPL Standard X-Ray Inspection System detects a full range of contaminants including stainless steel (from 0.6mm), iron, aluminum, glass (from 2.0mm), ceramic and stone (from 1.0mm), calcified bone, and dense rubber. Unlike metal detectors, it detects both metallic and non-metallic foreign bodies inside sealed packets.
Can it inspect metalized foil or aluminium packaging?
Yes. X-ray inspection works through all packaging types including metalized foil pouches, aluminium trays, vacuum packs, and multilayer laminates. This is a major advantage over metal detectors which cannot inspect products in metallic packaging.
Is the machine safe for use in a food factory?
Yes. X-ray leakage is below 1 μSv/h, which is far below international safety limits. The machine is fully CE and FDA compliant and is safe for continuous operation by factory floor staff without any special radiation protection equipment.
How many product recipes can be stored in the machine?
The machine can store unlimited product recipes. Each recipe saves the X-ray voltage, current, product size, and reject sensitivity settings. Operators can switch between products like biscuits, namkeen, frozen food, spices, or dry fruits in under 30 seconds with a single touch.
What is the conveyor speed and maximum product size?
The standard model supports conveyor speeds up to 40 meters per minute. It is suitable for packets up to 400mm wide. Custom models are available for larger product sizes or higher line speeds. Contact NICPL for a model recommendation based on your production requirements.
Does the machine work with wet, frozen, or high-salt products?
Yes. Unlike metal detectors which are affected by moisture, salt content, and temperature, X-ray inspection is completely unaffected by product composition. It works equally well with frozen foods, wet seafood, high-salt snacks, and dairy products.

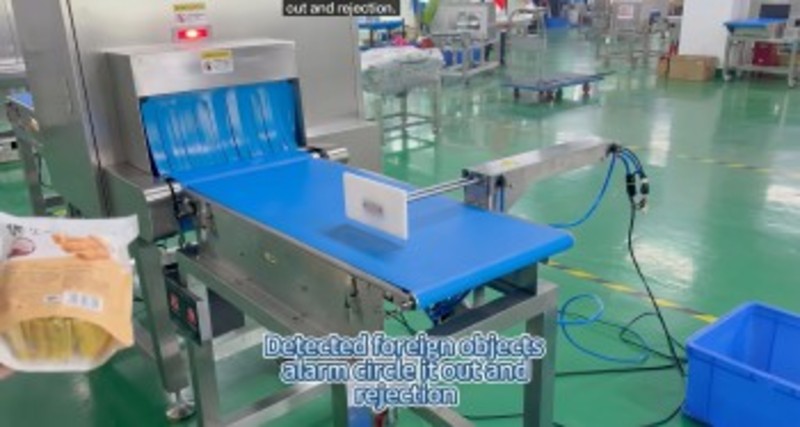

What happens when a contaminated product is detected?
When contamination is detected, the machine instantly sends a reject signal through its output port to trigger a downstream automatic rejecter. The contaminated product is removed from the line without stopping production. Every rejection event is saved with a product image for full traceability.
Does NICPL provide installation and training support?
Yes. The NICPL X-Ray Inspection System is widely used in food, pharmaceutical, nutraceutical, and FMCG industries. It meets CE and FDA compliance requirements making it suitable for domestic as well as export-oriented production lines.
Can we see a live demonstration before purchasing?
Absolutely. NICPL offers live product trials at our facility where you can bring your own product packets for testing. This allows you to verify detection sensitivity on your actual product before making any purchase decision. Contact us on WhatsApp or call +91 70115 54903 to schedule a trial.
Customer Reviews (8)
▾
Meena Sharma
Sharma Masala Industries, Indore
✓ Verified Buyer
★★★★☆
Good machine for spice packet inspection. It successfully detects
stone and glass particles which were our main problem. The auto
reject works smoothly with our existing conveyor line. We deducted
one star as we needed a couple of follow-up calls to fine-tune the
sensitivity settings for our smaller 50g packets. Support team was
helpful throughout.
22 May 2026
Neha Gupta
Purefresh Pharma Packers, Sonipat
✓ Verified Buyer
★★★★★
We needed CE and FDA compliant inspection for our nutraceutical export line. NICPL was the only local dealer who could provide full documentation and after-sales support. The machine's X-ray leakage is well under. Our EU buyer's auditor was fully satisfied during inspection.
20 May 2026
Suresh Tiwari
Tiwari Food Processors, Kanpur
✓ Verified Buyer
★★★★☆
The machine performs well for our biscuit and cookie packets.
Detection sensitivity is very good and the touchscreen is easy
to operate. We gave 4 stars because initial installation took
slightly longer than expected, but the NICPL team was responsive
and resolved everything professionally. Overall very satisfied
with the purchase.
20 May 2026
