METAL DETECTOR
IMD-P Series
Gravity Fall
HACCP Compliant
Gravity Fall Metal Detector For Powder, Granule & Bulk Products
NICPL IMD-P Series — compact design with small occupied space. Suitable for detection of powder, granule and other forms of bulk products. Product falls through the detector by gravity — no conveyor belt required. Automatic flap rejecter diverts contaminated material instantly. Ideal for rice mills, flour mills and grain processing plants.
Description
▾
NICPL IMD-P Series — compact design with small occupied space. Suitable for detection of powder, granule and other forms of bulk products. Product falls through the detector by gravity — no conveyor belt required. Automatic flap rejecter diverts contaminated material instantly. Ideal for rice mills, flour mills and grain processing plants.
What products is it suitable for?
▾
product identify
→

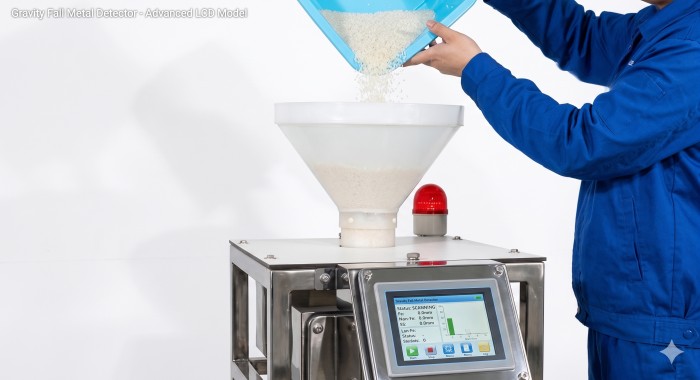

INPUT
✓
ACCEPT
✕

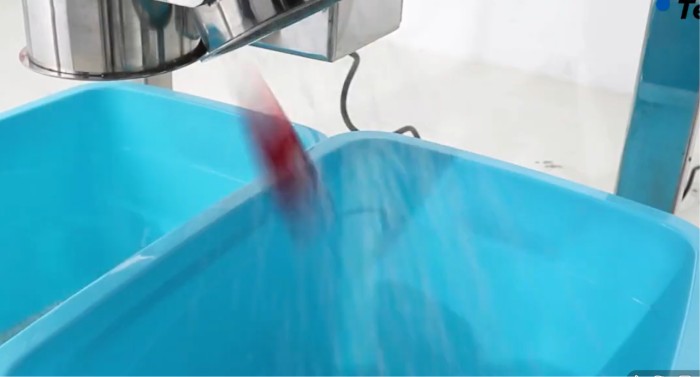

REJECT
Technical Specifications
▾
| Specification | IMD-P Series |
|---|---|
| Brand | Techik — IMD-P Series |
| Installation Type | Vertical — Gravity Feed (No Belt Required) |
| Ø75mm — Capacity | 3 tons / hour |
| Ø75mm — Fe / SUS | Φ 0.5 mm / Φ 0.8 mm |
| Ø100mm — Capacity | 5 tons / hour |
| Ø100mm — Fe / SUS | Φ 0.6 mm / Φ 1.0 mm |
| Ø150mm — Capacity | 10 tons / hour |
| Ø150mm — Fe / SUS | Φ 0.6 mm / Φ 1.2 mm |
| Ø200mm — Capacity | 20 tons / hour |
| Ø200mm — Fe / SUS | Φ 0.7 mm / Φ 1.5 mm |
| Rejecter Mode | Automatic Flap Rejecter |
| Air Pressure | ≥ 0.5 MPa |
| Power Supply | AC 220V (Optional) |
| Main Material | SUS304 Stainless Steel |
| Product Type | Powder, Granule, Bulk Material |
| Certification | HACCP Compliant |
| Indian Dealer | NICPL — North India Compressors Pvt. Ltd. |
Features
▾
⬇️ Gravity Fall Design
⚡ Auto Flap Rejecter
Gravity Fall Design
- Product falls freely through the vertical detector pipe by gravity — no conveyor belt
- Compact design with minimal occupied space — installs easily between machine outlet and packing
- 4 pipe diameter options: 75mm / 100mm / 150mm / 200mm — handling 3 to 20 tons/hour
- Suitable for all powder, granule and bulk products — rice, flour, dal, sugar, salt, spices
Pre and After-Sales Service
▾
PRE-SALE
Consulting solution service
Configuration suggestion
Layout suggestion
HELP DESK
Remote troubleshooting
Remote machine adjusting
Fault de-escalation
ON-SITE
Routine inspection
Commissioning
Troubleshooting
SPARE PARTS
Spare parts supply
Warranty service
Key parts maintenance
TRAINING
Local training
HQ training
Standard warranty
🌟 Pre-Sale Service — NICPL
Consultation on selecting the optimal inspection system for your product
Support integrating with your existing production lines
Product testing available — attend and observe live at Kundli
🔧 After-Sale Service — NICPL
On-site service with quick response times across India
Warranty including free inspections and maintenance
24×7 support — call +91 70115 54903 anytime
Frequently Asked Questions
▾
What types of products can the Gravity Fall Metal Detector inspect?
It is designed for free-flowing bulk products such as powders, granules, rice, wheat, sugar, salt, spices, plastic pellets, and similar materials that flow freely through a vertical pipe.
What metals can it detect?
It detects all three major metal types — ferrous (Fe), non-ferrous (aluminium, copper, brass), and stainless steel (SUS304/316). Stainless steel is the most difficult to detect and the sensitivity values are clearly specified per pipe size.
How does the rejection system work?
When metal is detected, an automatic pneumatic flap rejecter instantly diverts the contaminated product into a separate reject bin, while clean product continues to the accept bin. Air pressure of ≥0.5 MPa is required for the rejecter.
What is the detection capacity?
Capacity ranges from 3 t/h (75mm model) up to 20 t/h (200mm model), based on water density. Actual capacity depends on product density and flow rate.
What is the power supply requirement?
AC 220V (optional configurations available). The machine body is made from food-grade SUS304 stainless steel.
Is it suitable for HACCP or food safety compliance?
Yes. The stainless steel construction, automatic rejection, and detection logging make it suitable for food processing lines that require HACCP, BRC, or FSSAI compliance.
How easy is it to set up for different products?
The IMD-II control panel features an Auto Set function that automatically learns product parameters. Operators can switch products quickly using the PRODUCT button without manual re-calibration.
Can it be integrated into an existing production line?
Yes. Its compact vertical design allows it to be installed between hoppers, filling machines, packaging lines, or conveyor systems with minimal space requirement.
What after-sales support does NICPL provide?
NICPL provides on-site installation, operator training, calibration support, and spare parts assistance across India.
