Checkweigher Machine For Big Packages — Online Dynamic Weight Detection
NICPL IXL Series — online high-speed, high-sensitivity, high-stability dynamic weight detection system. Suitable for packaging product weight detection to ensure quality standards. Widely used for big carton and bag packed food, agricultural products, consumables and other industries.
Description
▾
NICPL IXL Series — online high-speed, high-sensitivity, high-stability dynamic weight detection system. Suitable for packaging product weight detection to ensure quality standards. Widely used for big carton and bag packed food, agricultural products, consumables and other industries.
What products is it suitable for?
▾
product identify
product identify
→

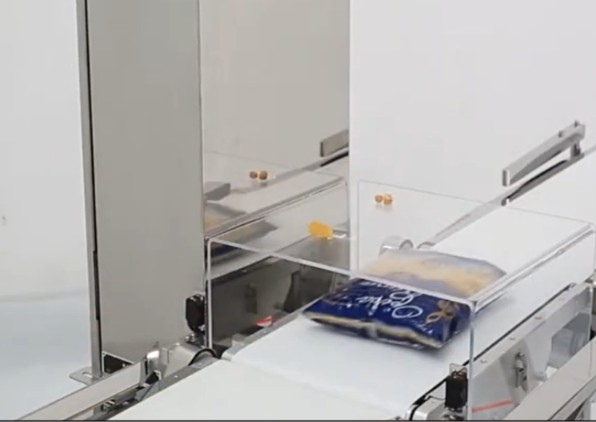

INPUT
✓

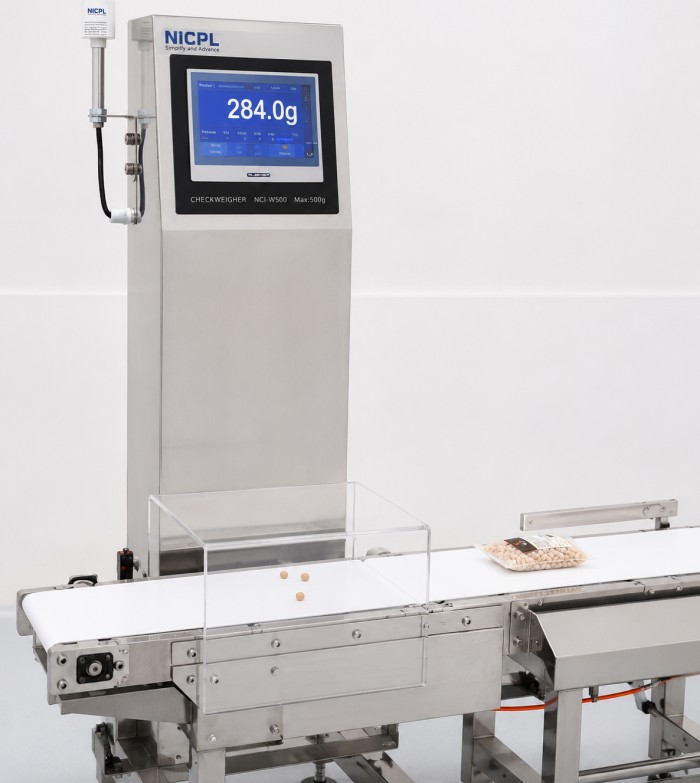

ACCEPT
✕
REJECT
Technical Specifications
▾
| Specification | IXL Series |
|---|---|
| Brand | NICPL |
| IXL-500 — Range | 0.5 – 20 kg |
| IXL-500 — Accuracy | ± 2 g (3σ) |
| IXL-500 — Max Speed | 75 pcs / min |
| IXL-500 — Platform | 500 mm × 800 mm |
| IXL-600 — Range | 1 – 50 kg |
| IXL-600 — Accuracy | ± 5 g (3σ) |
| IXL-600 — Max Speed | 50 pcs / min |
| IXL-600 — Platform | 600 mm × 1200 mm |
| Belt Speed | 60 m / min |
| Operation Screen | 7" Touch Screen |
| Product Storage | 100 Kinds |
| Sorting Segments | 2 / 3 |
| Rejecter Mode | Rejecter Optional |
| Power Supply | 220V (Optional) |
| Protection | IP54 / IP65 |
| Main Material | Mirror Polished / Sand Blasted |
| Indian Dealer | NICPL — North India Compressors Pvt. Ltd. |
Features
▾
⚖️ Dynamic Weighing
🖥️ Easy Operation
👋🏻 pusher rejection arms
🍃 air filter regulator

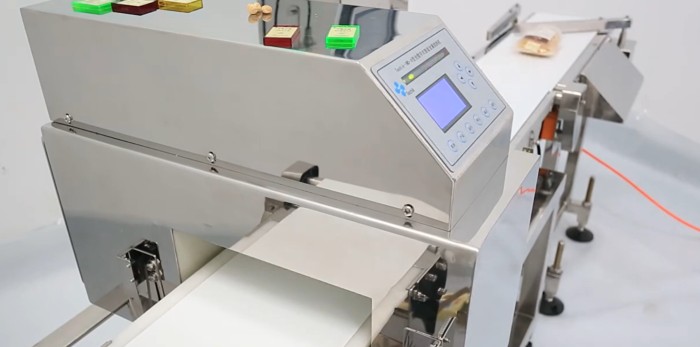

Dynamic Weighing
- Online high-speed dynamic weight detection — line runs at full speed, no stoppages
- IXL-500: up to 75 pcs/min for 0.5–20kg packages with ±2g accuracy (3σ)
- IXL-600: up to 50 pcs/min for 1–50kg packages with ±5g accuracy — ideal for big bags
- 2/3 sorting segments — classifies packages into multiple weight categories simultaneously
Pre and After-Sales Service
▾
PRE-SALE
Consulting solution service
Configuration suggestion
Layout suggestion
HELP DESK
Remote troubleshooting
Remote machine adjusting
Fault de-escalation
ON-SITE
Routine inspection
Commissioning
Troubleshooting
SPARE PARTS
Spare parts supply
Warranty service
Key parts maintenance
TRAINING
Local training
HQ training
Standard warranty
🌟 Pre-Sale Service — NICPL
Consultation on selecting the optimal inspection system for your product
Support integrating with your existing production lines
Product testing available — attend and observe live at Kundli
🔧 After-Sale Service — NICPL
On-site service with quick response times across India
Warranty including free inspections and maintenance
24×7 support — call +91 70115 54903 anytime
Frequently Asked Questions
▾
What package sizes can this checkweigher handle?
The IXL-500 handles packages up to 490mm wide and 700mm long, while the IXL-600 handles up to 590mm wide and 1000mm long. Suitable for large cartons, bags, and bulk packages.
What is the weight detection range?
IXL-500 handles 0.5kg to 20kg, and IXL-600 handles 1kg to 50kg — covering a wide range of big package weights in food and agricultural industries.
How accurate is the checkweigher?
The IXL-500 achieves ±2g accuracy and the IXL-600 achieves ±5g accuracy (at 3σ standard deviation), ensuring reliable weight compliance.
How fast can it inspect products?
The IXL-500 checks up to 75 packages per minute and the IXL-600 up to 50 packages per minute at a belt speed of 60m/min.

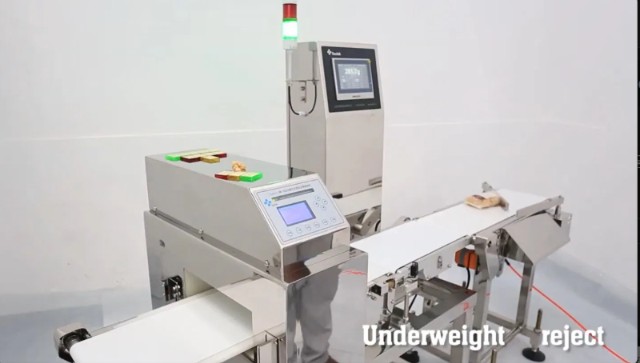

What happens when an overweight or underweight package is detected?
The machine automatically activates the pusher rejection arm to divert the non-compliant package off the line. Separate arms handle overweight and underweight rejections independently.
How many products can be stored in memory?
Up to 100 different product settings can be stored, allowing fast changeover between different SKUs without manual re-entry of parameters.
Is the machine suitable for wet or dusty factory environments?
Yes. The machine is available in IP54 and IP65 protection ratings, making it suitable for food processing environments with moisture, dust, or regular washdowns.
What is the power requirement?
Standard supply is AC 220V. Alternative configurations are available on request.
Is it easy to clean?
Yes. The buckle design allows quick belt removal and reassembly without tools, making daily cleaning fast and simple. The body is mirror polished or sandblasted stainless steel.
