METAL DETECTOR
IMD Series
HACCP & ISO 22000
BESTSELLER

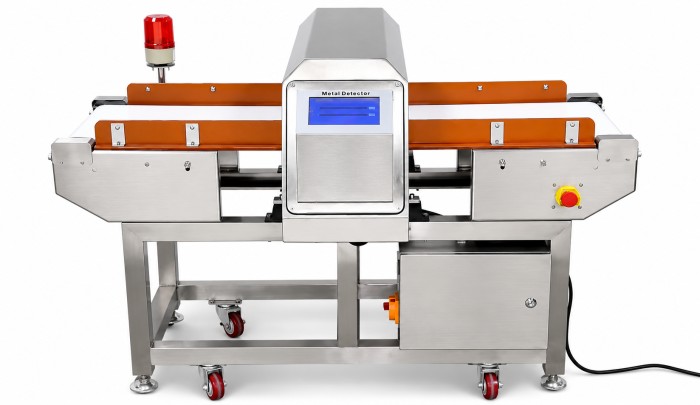

Conveyor Belt Metal Detector For Packaged & Non-Packaged Products
NICPL IMD Series — the first DSP conveyor belt metal detector with Intellectual Property Rights in China. Engineered to identify and reject ferrous, non-ferrous and stainless steel materials with high sensitivity. Ideal for food processing, pharmaceuticals and packaging industries.
Description
▾
NICPL IMD Series — the first DSP conveyor belt metal detector with Intellectual Property Rights in China. Engineered to identify and reject ferrous, non-ferrous and stainless steel materials with high sensitivity. Ideal for food processing, pharmaceuticals and packaging industries.
What products is it suitable for?
▾
product identify
→

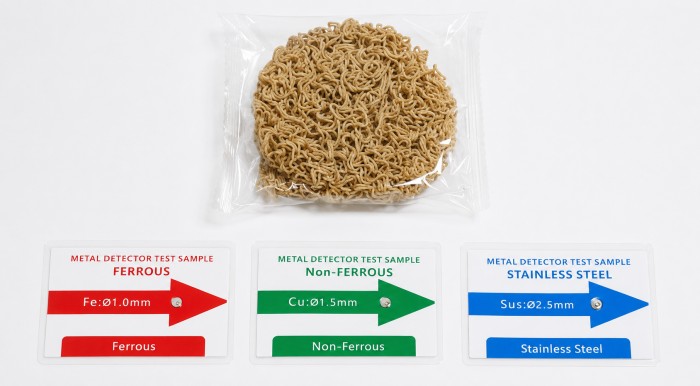

INPUT
✓

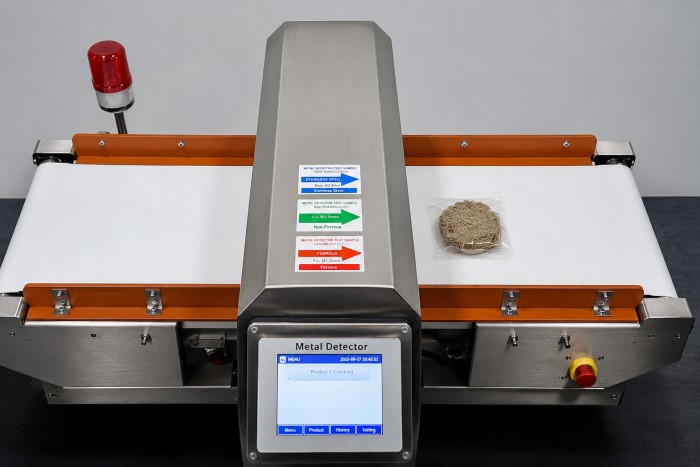

ACCEPT
✕

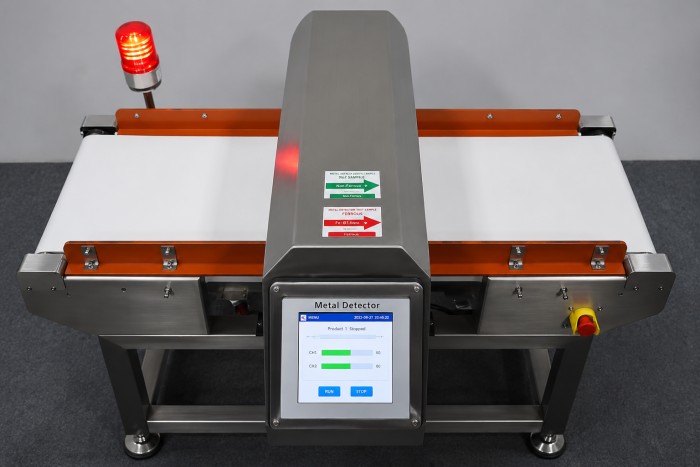

REJECT
Technical Specifications
▾
| Specification | IMD Series |
|---|---|
| Brand | NICPL |
| Series | IMD Series — DSP Conveyor Belt Metal Detector |
| Models (400mm) | IMD 4008 / 4012 / 4015 / 4018 |
| Models (500mm) | IMD 5020 / 5025 / 5030 / 5035 |
| Models (600mm) | IMD 6025 / 6030 |
| Detection Width | 400mm / 500mm / 600mm |
| Detection Height | 80 mm – 350 mm |
| Sensitivity — Fe | Φ 0.5 – 1.5 mm |
| Sensitivity — SUS304 | Φ 1.0 – 3.5 mm |
| Loading Capacity | Up to 50 kg |
| Conveyor Belt | Food Grade PU (Chain Conveyor Optional) |
| Belt Speed | Fixed 25 m/min (Variable Speed Optional) |
| Product Storage | 52 Kinds (100 with Touch Screen) |
| Display | LCD Panel (FDM Touch Screen Optional) |
| Rejection Mode | Alarm + Belt Stop (Auto Rejecter Optional) |
| Power Supply | AC 220V |
| Main Material | SUS304 Stainless Steel |
| Certification | HACCP · ISO 22000 Compliant |
| Indian Dealer | NICPL — North India Compressors Pvt. Ltd. |
Features
▾
🔬 DSP Detection
🖥️ Intelligent Operation
🖥️ Smart Menu System
DSP Detection

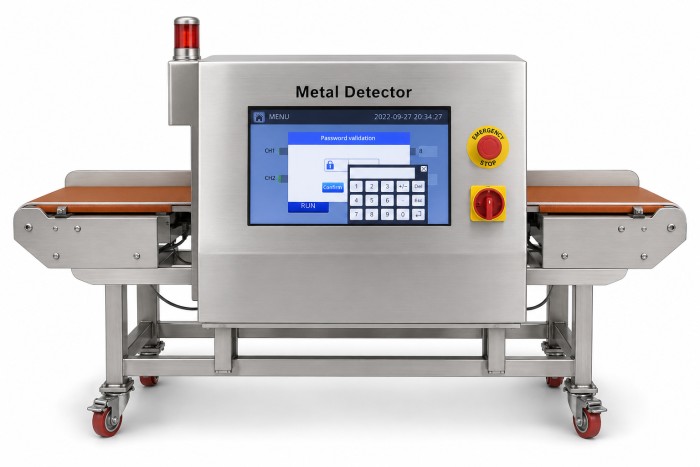

- Advanced Digital Signal Processing for superior metal detection accuracy
- Eliminates false rejects caused by product effect or vibration
- Multi-frequency detection for identifying ferrous, non-ferrous, and stainless steel
- Automatic product learning for fast and easy setup
- High-speed signal analysis for reliable detection at line speeds
- Stable performance in harsh industrial environments
Pre and After-Sales Service
▾
PRE-SALE
Consulting solution service
Configuration suggestion
Layout suggestion
HELP DESK
Remote troubleshooting
Remote machine adjusting
Fault de-escalation
ON-SITE
Routine inspection
Commissioning
Troubleshooting
SPARE PARTS
Spare parts supply
Warranty service
Key parts maintenance
TRAINING
Local training
HQ training
Standard warranty
🌟 Pre-Sale Service — NICPL
Consultation on selecting the optimal inspection system for your product
Support integrating with your existing production lines
Product testing available — attend and observe live at Kundli
🔧 After-Sale Service — NICPL
On-site service with quick response times across India
Warranty including free inspections and maintenance
24×7 support — call +91 70115 54903 anytime
Frequently Asked Questions
▾
What contaminants can NICPL X-Ray systems detect?
NICPL X-Ray inspection systems detect metal, glass, ceramic, stone, hard plastic, bone, dense rubber, and other dense impurities. They inspect based on material density rather than conductivity, detecting non-metallic items that metal detectors miss.
What products and industries can NICPL optical sorters handle?
NICPL optical sorters are designed for nuts, grains, seeds, coffee beans, chili peppers, tea, dried fruit, snacks, frozen vegetables/fruits, seafood, pet food, dairy, spices, bakery, ready meals, baby food, and more—covering the full food and agricultural sectors.
How do the optical sorters work?
They use multi-spectral cameras and sensors (visible, IR, etc) with AI algorithms to evaluate color, shape, size, and texture, ejecting defective pieces with high-precision air jets.
What is the difference between standard color sorting and AI optical sorting?
Color sorting uses visible-spectrum differences; AI sorting adds shape, texture, and spectral data analysis, identifying complex defects and minimizing false rejects.
Does the sorter detect defects beyond color (e.g., hair, mold, damage, insect-mark)?
Yes. AI optical sorters detect subtle defects such as hair, mold, cracks, black spots, insect damage, broken or chipped pieces, and other imperfections.
Can multiple grades be sorted (not just good vs bad)?
Yes. Many NICPL models support multi-grade sorting (Grade A/B/C), allowing separation by quality level in a single pass.
Are they suitable for difficult product types (wet, sticky, frozen)?
Yes. Specialized feeding and cleaning designs ensure stable sorting for wet, sticky, or frozen products such as nuts or vegetables.
How accurate is the sorting?
Depending on the product, NICPL optical sorters achieve up to 99.9% sorting accuracy when properly configured and maintained.
How do I maintain the system for long-term performance?
Routine cleaning, calibration, nozzle checks, and software updates keep performance consistent.
Can the X-Ray machine inspect for things beyond contaminants (e.g., integrity, composition)?
Yes. Beyond foreign contaminant detection, NICPL systems also perform product-integrity checks—such as sealing, missing components, fill-level, weight estimation—and fat-content analysis for monitoring composition in meat processing.
How does fat-content analysis work in these systems?
The fat-content analyzer uses X-Ray imaging with calibrated algorithms to estimate fat percentage or lean ratio, helping with nutritional labeling, cost control, and process inspection.
Can X-Ray machines inspect large or irregularly shaped packages?
Yes. NICPL offers systems with various tunnel sizes and large-window designs to accommodate bulk or large-pack products.
What makes NICPL X-Ray equipment unique?
NICPL whole-chain inspection capability from raw to packaged products, and AI-powered image processing for high accuracy and connectivity.
Which industries are served by NICPL X-Ray systems?
Industries include meat, seafood, poultry, dairy, nuts, bakery, snacks, coffee, grains, canned/bottled food, pet food, frozen vegetables/fruits, convenience food, baby food and etc. Also suitable for pharmaceutical applications.
How do I select the right model for my line?
Key factors include product type, packaging, throughput, contaminant risks, and optional features like weight or fat-content analysis. NICPL offers sample testing to validate performance before purchase.
Are the systems safe and hygienic for food environments?
Yes. They meet CE radiation standards (<1 μSv/h) and feature stainless-steel, hygienic designs with IP65/67/69K options for wash-down and cold environments.
What about maintenance and support?
The system features hygienic stainless-steel design, quick disassembly, and auto-diagnostic functions to simplify cleaning and maintenance.
