Meyer Integrated X-Ray Inspection Machine for Bulk Materials
Latest innovation — integrated X-Ray inspection machine for bulk material handling. Combines X-Ray technology with efficient material inspection. Suitable for detection of nut, peanut, pulses, seeds and other bulk products.
Description
▾
The Meyer 120XS4 Integrated X-Ray Inspection Machine is Meyer's latest innovation in bulk material inspection technology. It combines a high-precision X-ray detection system with an integrated material handling unit in a single compact machine — eliminating the need for a separate conveyor setup. Designed for high-volume processing of nuts, peanuts, pulses, beans, and seeds, the 120XS4 delivers unmatched detection accuracy for both external contaminants and internal product defects. Powered by Meyer's advanced X-ray imaging engine, Maglev® 3.0 ejectors, Full Spectrum Lighting, and Sniper System technology, it ensures maximum food safety compliance with minimum product loss. Available exclusively in India through NICPL — authorized Meyer dealer with 20 years of experience and 1000+ installations across India.
Key Benefits:
Detects glass, metal, ceramic, stones and dense foreign particles
Identifies internal defects — worm eaten and hollow nuts invisible to naked eye
Integrated X-ray and material handling in one single unit — no separate conveyor needed
Maglev® 3.0 ejectors operating at 1200 Hz for millisecond-level precise ejection
Sniper System uses 3D reconstruction to locate exact contamination center
Full Spectrum RGB lighting reveals true material color for enhanced defect detection
High-resolution cameras with minimum recognition range of 0.0004 mm²
Real-time grayscale X-ray scan displayed on smart software interface
Programmable product settings for nuts, peanuts, pulses, seeds and bulk products
Save and review scan records for every batch — full traceability for FSSAI compliance
Operates at 180~240V 50Hz with compressed air at 0.6~0.8 MPa
24×7 after-sales support from NICPL — on-site installation and operator training included
Live product trial available at NICPL Trial Centre, Kundli, Sonipat
What products is it suitable for?
▾
Beans
→

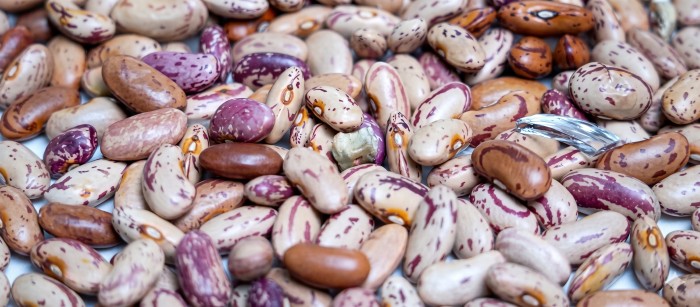

INPUT
✓

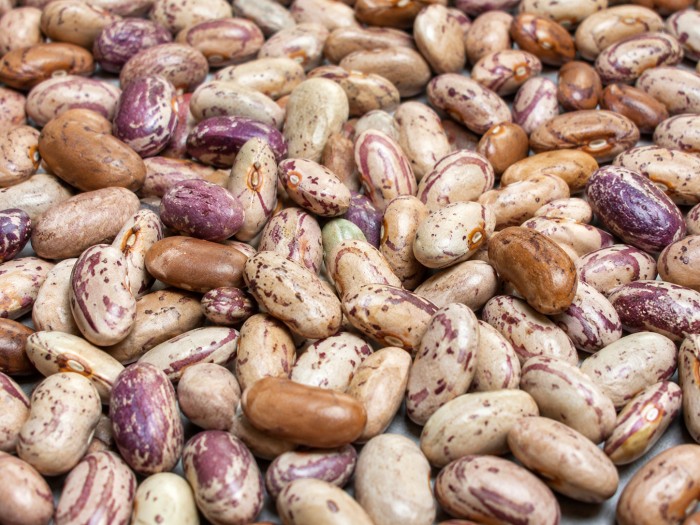

ACCEPT
✕

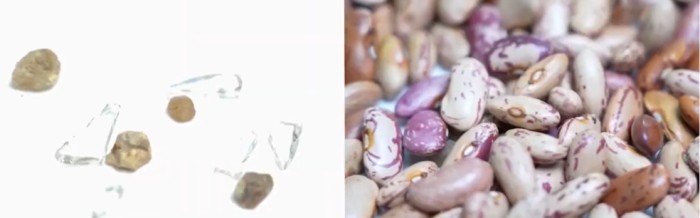

REJECT
Technical Specifications
▾
| Specification | XS Integrated |
|---|---|
| Sorter model | 120XS4 |
| Sorter code | MY8060-120XS |
| Sorter power (kW) | 2.5 |
| Sorter voltage (V) | 180～240 50Hz |
| Sorter air pressure (MPa) | 0.6～0.8 |
| Sorter air consumption (m³/min) | 0.3 |
| Sorter dimensions (L x W x H) | 2530x1450x2500 |
| Sorter weight (kg) | 780 ~ 850 |
| Indian Dealer | NICPL |
Features
▾
💻 X-ray Inspection System
🛡️ Meyer 8084 — Internal Inspection Chamber
🎡 CNC Multi-Tool Turret Assembly
⛓️💥 High-Speed Turning Operation
⛓️💥 Maglev Ejectors® — By MEYER
👁️ Innovative Vision Systems
⏏️ Full Spectrum Lighting System
🔫 Sniper System — By MEYER

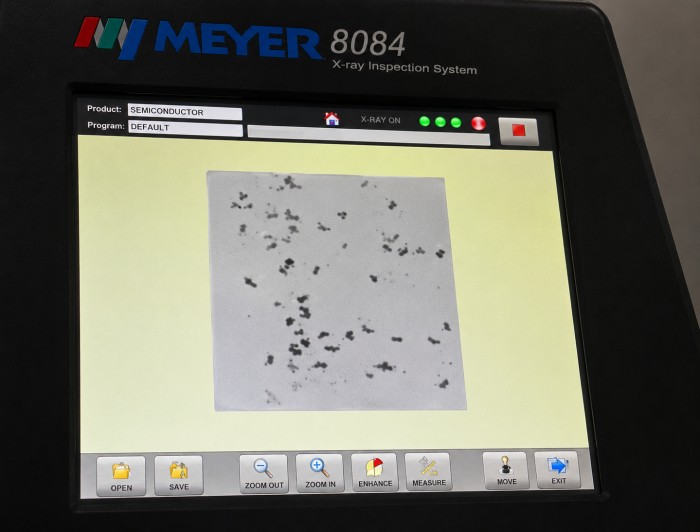

X-ray Inspection System
- 🔍 Advanced X-ray Technology — Uses high-precision X-ray imaging to detect contaminants and defects invisible to the naked eye
- 🧲 Detects All Metal & Non-Metal Contaminants — Identifies lead, steel, glass, stone, bone, and dense plastic inside products
- 💻 Smart Software Interface — Real-time grayscale X-ray scan displayed on screen with live inspection results
- ⚙️ Programmable Product Settings — Supports multiple product programs (e.g. Semiconductor, Food, Industrial parts) with customizable detection sensitivity
- 🟢 Live Status Monitoring — Color-coded indicator lights (green = running, red = alert) for instant machine status visibility
- 📁 Save & Review Scans — Built-in OPEN, SAVE, ZOOM IN/OUT, ENHANCE, and MEASURE tools for detailed image analysis
- 📏 Precision Measurement — MEASURE tool allows accurate sizing of detected contaminants or defects on screen
- 🔄 Continuous Inline Operation — Designed for high-speed production lines with real-time accept/reject decisions
Pre and After-Sales Service
▾
PRE-SALE
Consulting solution service
Configuration suggestion
Layout suggestion
HELP DESK
Remote troubleshooting
Remote machine adjusting
Fault de-escalation
ON-SITE
Routine inspection
Commissioning
Troubleshooting
SPARE PARTS
Spare parts supply
Warranty service
Key parts maintenance
TRAINING
Local training
HQ training
Standard warranty
🌟 Pre-Sale Service — NICPL
Consultation on selecting the optimal inspection system for your product
Support integrating with your existing production lines
Product testing available — attend and observe live at Kundli
🔧 After-Sale Service — NICPL
On-site service with quick response times across India
Warranty including free inspections and maintenance
24×7 support — call +91 70115 54903 anytime
Frequently Asked Questions
▾
What makes the Meyer 120XS4 different from the standard XS series models?
The 120XS4 is Meyer's latest innovation — an integrated X-ray inspection machine that combines X-ray detection technology with a built-in material handling system in a single unit. Unlike standalone detectors, there is no need for a separate conveyor setup, making it ideal for high-volume bulk processing facilities looking to save floor space and reduce manual feeding labor.
What types of contaminants can the Meyer 120XS4 detect?
The 120XS4 detects a wide range of contaminants including glass, metal, ceramic, stones, and other dense foreign particles hiding inside bulk products. Beyond surface contaminants, it also identifies internal defects invisible to the naked eye such as worm-eaten nuts, hollow seeds, and damaged kernels using precision X-ray imaging technology.
Which products is the Meyer 120XS4 suitable for?
The 120XS4 is specifically designed for bulk food products including nuts, peanuts, pulses, beans, seeds, and similar granular materials. It is widely used in rice mills, dal mills, grain processing units, nut processing factories, and food packaging facilities across India.
Is it safe to use X-ray inspection on food products?
Absolutely. The Meyer 120XS4 uses completely food-safe X-ray technology. Radiation levels are strictly controlled and have zero impact on the food's structure, taste, or nutritional value. The fully enclosed machine body with integrated safety systems ensures zero radiation exposure to operators during normal operation.
Can I test my own product on the Meyer 120XS4 before purchasing?
Yes. NICPL operates a dedicated Trial Centre at Kundli, Sonipat, Haryana where you can bring your own product samples and observe a live inspection demonstration. This allows you to verify detection performance on your specific product before making any purchase commitment. Contact NICPL at +91 70115 54903 or WhatsApp to schedule a trial.
What is the Maglev® Ejector system and why does it matter?
The Maglev® 3.0 ejector is a patented Meyer technology that uses magnetic levitation for non-contact ejection. Operating at over 1200 Hz frequency with millisecond-level response, it removes only the contaminated or defective item without disturbing neighboring good products. This minimizes good product loss significantly compared to conventional pneumatic ejectors.
. What is the Sniper System included in the 120XS4?
The Sniper System uses 3D reconstruction and high-speed HD imaging to precisely locate the exact center of contamination within each product. It then fires a targeted micro-burst of air to remove only that specific defective item. This surgical precision means accepted products are never accidentally ejected, maximizing yield and profitability on your production line.
Does NICPL provide installation, commissioning, and operator training for the 120XS4?
Yes, NICPL provides complete end-to-end support including on-site installation, machine commissioning, and hands-on operator training at your facility. After installation, NICPL's team verifies machine performance before handover. Ongoing support includes 24×7 breakdown assistance at +91 70115 54903, remote troubleshooting, and scheduled preventive maintenance services.
What voltage and air pressure supply is required for the Meyer 120XS4?
The Meyer 120XS4 requires a power supply of 180～240V at 50Hz and compressed air at a pressure of 0.6～0.8 MPa. It is important to ensure your facility's compressed air system meets this requirement before installation. NICPL's pre-sales team provides a complete utility checklist including civil, electrical, and compressed air requirements during the consultation stage.
How do I get a price quote for the Meyer 120XS4 from NICPL?
You can request a quote through any of the following:
🌐 Website — nicplmeyer.com → Get Quote
📱 WhatsApp — +91 70115 54903
📞 Call — +91 70115 54903
🏭 Visit — Plot 206, Phase 2, HSIIDC, Kundli, Sonipat, Haryana 131028
