🌾 GRAIN BAGGING
DCS-25K-3A
5–50 kg
600–900 Bags/hr

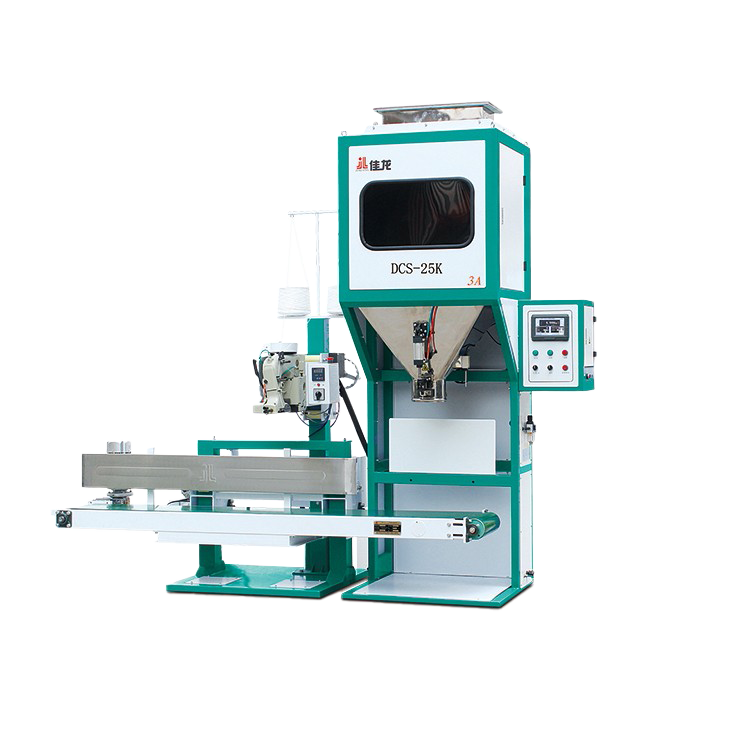

DCS-25K-3A Rice Weighing Packing Machine
Bagging System
Bagging System
Complete bagging system including Packing Scale Body, Sewing Machine and 2.2m Auto Lifting Conveyor. Double weighing hopper design greatly improves packing speed — auto weighing, filling, sewing and thread cutting for rice, beans, seeds, sugar and pulses.
Key Features
Double weighing hopper design — greatly improves the speed of packing
Complete system — packing scale body + sewing machine + 2.2m auto lifting conveyor included

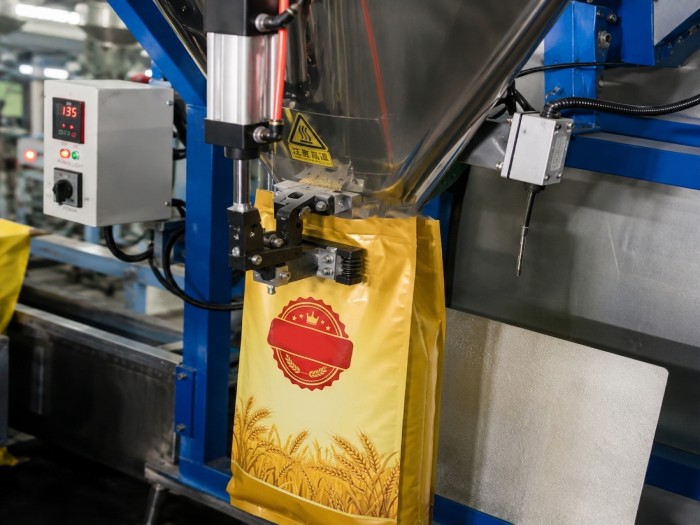

Auto weighing, filling, sewing and thread cutting — fully automated operation
High accuracy and stable performance — high-precision controller, easy to operate
Automatic error correction — auto alarm for over and under tolerance with fault auto diagnosis
One key recovery function — press reset key to return to default parameters instantly
Super anti-vibration and anti-interference filter — ensures stable and accurate weighing process
RS232/485 interface reserved — for data communication with peripheral management system
Application
Basic Info
| Model | DCS-25K-3A |
| Speed (5–25kg) | 600 – 900 bags/hr |
| Speed (25–50kg) | 300 – 400 bags/hr |
| Scale Interval | 10 g |
| Accuracy Grade | X(0.2) |
| Power Supply | 4N-AC 380V 50Hz 1.1KW |
| Air Source | 0.4~0.6 MPa — 1m³/h |

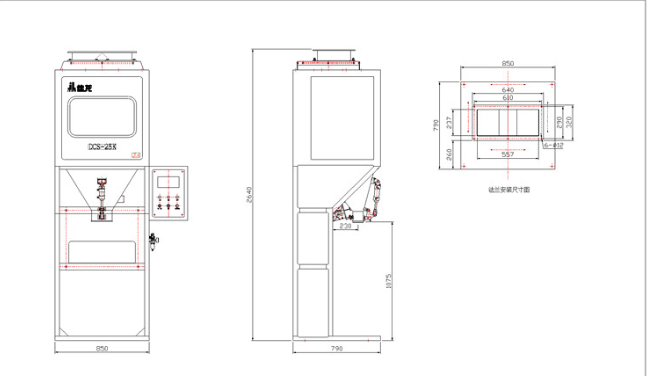

| Outside Height | 2650 mm |
| System Includes | Scale + Sewing Machine + 2.2m Conveyor |
| Vendor | Zhangzhou Jialong Technology Inc. |
Complete Bagging System — All-in-One
- Complete system includes packing scale body, sewing machine and 2.2m auto lifting conveyor — everything included
- Double weighing hopper design — greatly improves the speed of packing for higher daily output
- Auto weighing, filling, sewing and thread cutting — fully automated operation with minimal manual intervention
High Accuracy & Intelligent Safety Features
- High accuracy and stable performance — high-precision controller, easy to operate with minimal training
- Automatic error correction — auto alarm for over and under tolerance with fault auto diagnosis
- One key recovery function — press reset key to instantly return to default parameters
- Super anti-vibration and anti-interference filter — ensures stable and accurate weighing throughout operation
- RS232/485 interface reserved for data communication with peripheral management system
Key Technical Features
Double Weighing Hopper
Double weighing hopper design — greatly improves the speed of packing for higher daily output.
Complete System
Packing scale body + sewing machine + 2.2m auto lifting conveyor — all included.
600–900 Bags/hr
Up to 900 bags per hour for 5–25kg range — maximum throughput for rice mills.
Auto Weighing + Sewing
Fully automated weighing, filling, sewing and thread cutting — minimal manual intervention.
One Key Recovery
Press reset key to instantly return to default parameters — fast recovery from any adjustment.
Anti-Vibration Filter
Super anti-vibration and anti-interference filter — ensures stable and accurate weighing throughout.
Error Correction + Alarm
Automatic error correction — auto alarm for over and under tolerance with fault auto diagnosis.
RS232/485 Interface
Reserved for data communication with peripheral management system — easy line integration.
Rice Mill Ready
Designed specifically for rice mill, dal mill and flour mill installation requirements in India.
24×7 Support
NICPL service team available 24×7 — installation, training and after-sales support.
Spare Parts Available
Genuine Jialong spare parts available through NICPL — fast delivery across India.
India Ready
Three phase 415V / single phase 220V / 50Hz — standard Indian electrical supply compatible.
Technical Specifications
| Parameter | Spec / Value |
|---|---|
| Model | DCS-25K-3A |
| Speed (5–25kg) | 600 – 900 bags/hr |
| Speed (25–50kg) | 300 – 400 bags/hr |
| Scale Interval | 10 g |
| Accuracy Grade | X(0.2) |
| Power Supply | 4N-AC 380V 50Hz 1.1KW |
| Air Source | 0.4~0.6 MPa — 1m³/h |
| Outside Height | 2650 mm |
| System Includes | Packing Scale + Sewing Machine + 2.2m Auto Lifting Conveyor |
| Application | Rice, Beans, Seeds, Sugar, Pulses, Wheat, Maize, Peanut, Dal, Soybean |
