🌾 GRAIN BAGGING
DCS-25K-H10
5–25 kg
1400 Bags/hr
DCS-25K-H10 High-Speed Rice Packing Machine
1400 Bags Per Hour
1400 Bags Per Hour
Quantitative packaging machine for granular materials in grain, sugar and food industries. Double feeding and double high-speed measuring mechanism ensures maximum output with precise accuracy — 900 to 1400 bags per hour.
Key Features
Weighing and conveyor in one body — stable, reliable and no residue design
Large size touch screen — centralized display and operation, simple and convenient
One-key switch of packaging specifications — memory belt automatic lifting
Double feeding and double high-speed measuring mechanism — greatly increases output
Optional folding machine — machine head moves laterally, auto thread cutting and auto stitching oil feed
Automatic error correction — over and under-error alarms with fault diagnosis
RS232/485 serial port — reserved for data communication with peripheral management system
Application
Basic Info
| Model | DCS-25K-H10 |
| Pack Weight Range | 5 – 25 kg |
| Packing Speed | 900 – 1400 bags/hr |
| Index Value | 2 g |
| Accuracy Level | X(0.5) |
| Power Supply | 4N-AC 380V 50Hz 1.1KW |
| Air Source | 0.5~0.6 MPa — 13m³/h |

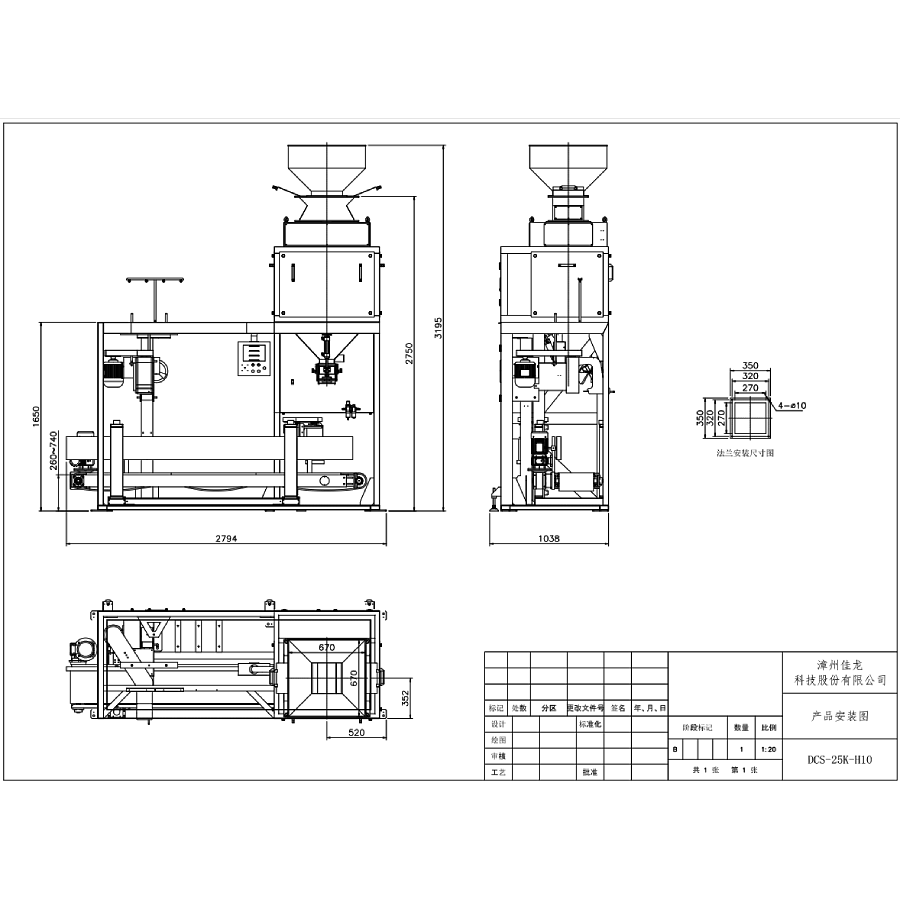

| Dimensions (L×W×H) | 2800×1050×3200 mm |
| Bag Type | PP Woven Bag |
| Vendor | Zhangzhou Jialong Technology Inc. |
Stable Structure & Smart Display
- Weighing and conveyor in one body — stable, reliable and no residue design for continuous industrial operation
- Large size touch screen displayed and operated in a centralized manner — simple and convenient for operators
- One-key switch of packaging specifications with memory belt automatic lifting — fast and effortless changeover
High-Speed Output & Optional Folding
- Double feeding and double high-speed measuring mechanism — high-speed packing greatly increases output to 900–1400 bags per hour
- Optional folding machine — machine head moves laterally, easy to operate with or without folding mechanism, auto thread cutting and auto stitching oil feed
Intelligent Control & Data Communication
- Automatic error correction — over and under-error alarms, faults originate from diagnosis and other intelligent functions
- RS232/485 serial port reserved for data communication with the peripheral management system — easy integration with production line software
Key Technical Features

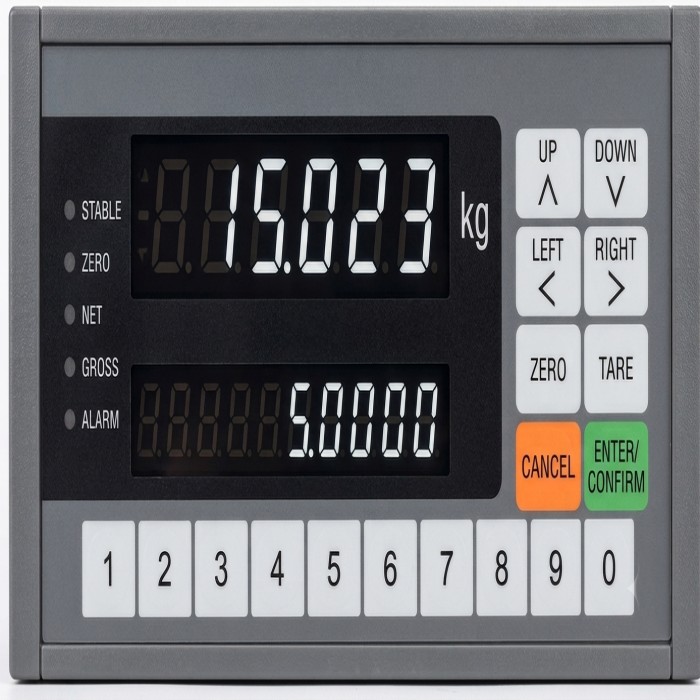

Auto Weighing System
Precise quantitative weighing — accurate fill weight for every bag, reduces giveaway and wastage.
Touch Screen Control
Large size touch screen with centralized display and operation — simple and convenient for operators.
900–1400 Bags/hr
Double feeding and double high-speed measuring mechanism — greatly increases production output.
One-Key Spec Switch
One-key switch of packaging specifications with memory belt automatic lifting — fast changeover.
Auto Sewing + Thread Cut
Automated sewing with auto thread cutting — fast, clean and consistent bag closure every cycle.
Optional Folding Machine
Machine head moves laterally — easy operation with or without the folding machine mechanism.
Error Correction + Alarm
Automatic error correction, over and under-error alarms, and fault diagnosis functions built in.
RS232/485 Data Port
Serial port reserved for data communication with peripheral management system — easy integration.
Rice Mill Ready
Designed specifically for rice mill, dal mill and flour mill installation requirements in India.
24×7 Support
NICPL service team available 24×7 — installation, training and after-sales support.
Spare Parts Available
Genuine Jialong spare parts available through NICPL — fast delivery across India.
India Ready
Three phase 415V / single phase 220V / 50Hz — standard Indian electrical supply compatible.
Technical Specifications
| Parameter | Spec / Value |
|---|---|
| Model | DCS-25K-H10 |
| Pack Weight Range | 5 – 25 kg |
| Packing Speed | 900 – 1400 bags/hr |
| Index Value | 2 g |
| Accuracy Level | X(0.5) |
| Power Supply | 4N-AC 380V 50Hz 1.1KW |
| Air Source | 0.5~0.6 MPa — 13m³/h |
| Dimensions (L×W×H) | 2800×1050×3200 mm |
| Bag Type | PP Woven Bag |
| Application | Rice, Grain, Soybean, Peanut, Wheat, Sugar, Coffee, Corn, Sesame, Beans, Lentils, Cashew Nuts, Seeds, Salt, Flour |
