🌾 GRAIN BAGGING
DCS-50-A3
5–50 kg
300–400 Bags/hr
DCS-50-A3 50kg Granules Packing Machine
Rice Packing Equipment
Rice Packing Equipment
Quantitative packing scale machine for particle materials — rice, beans, seeds, sugar, pulses and more. Auto weighing, auto sewing and auto thread cutting with adjustable thread length and sewing machine head height. Handles 5kg to 50kg bags.
Key Features
Auto weighing, auto sewing and auto thread cutting — fully automated operation
Easy installation PP bag packing machine — quick setup and commissioning

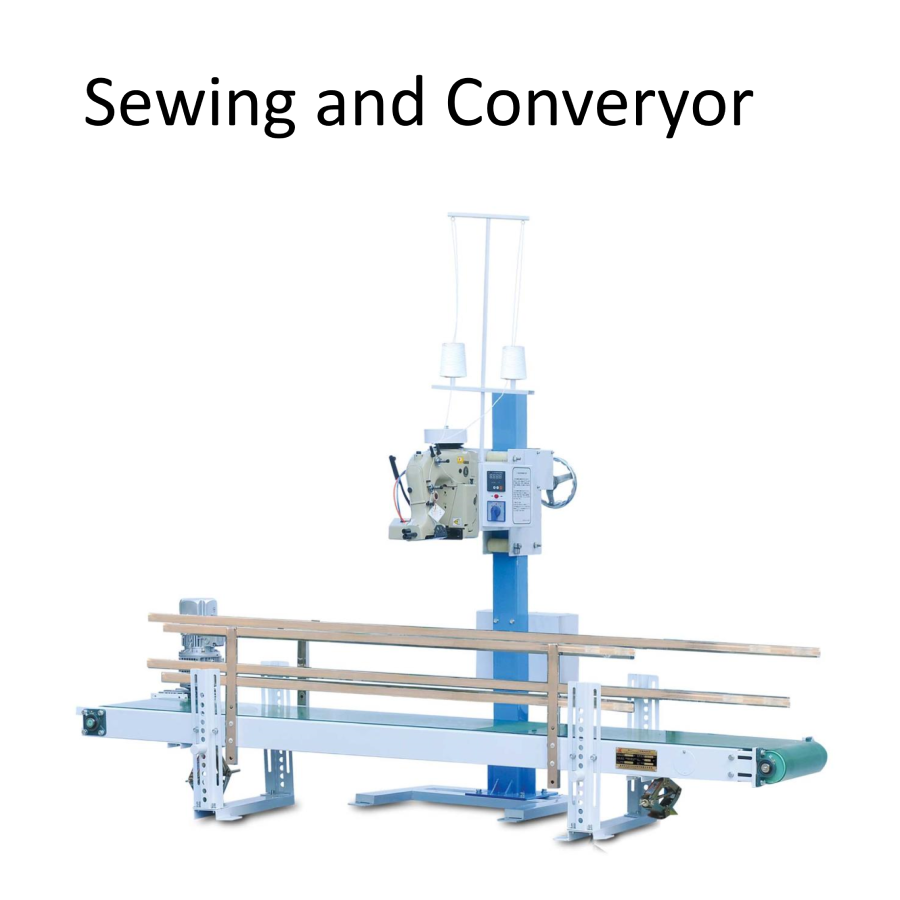

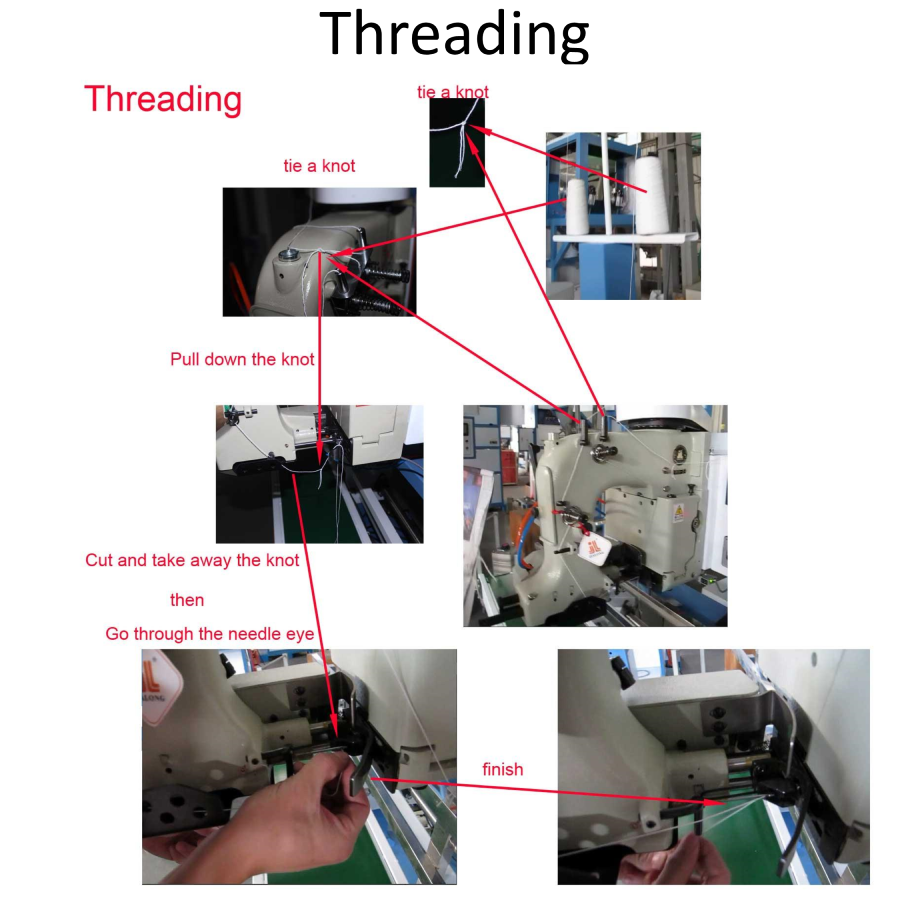

Adjustable thread length and adjustable sewing machine head height — flexible for different bag sizes
Parts in touch with raw materials made of stainless steel — food-safe and long service life
Three-stage cylinder — one single cylinder achieves four-station moves, compact structure, fast response, low failure rate

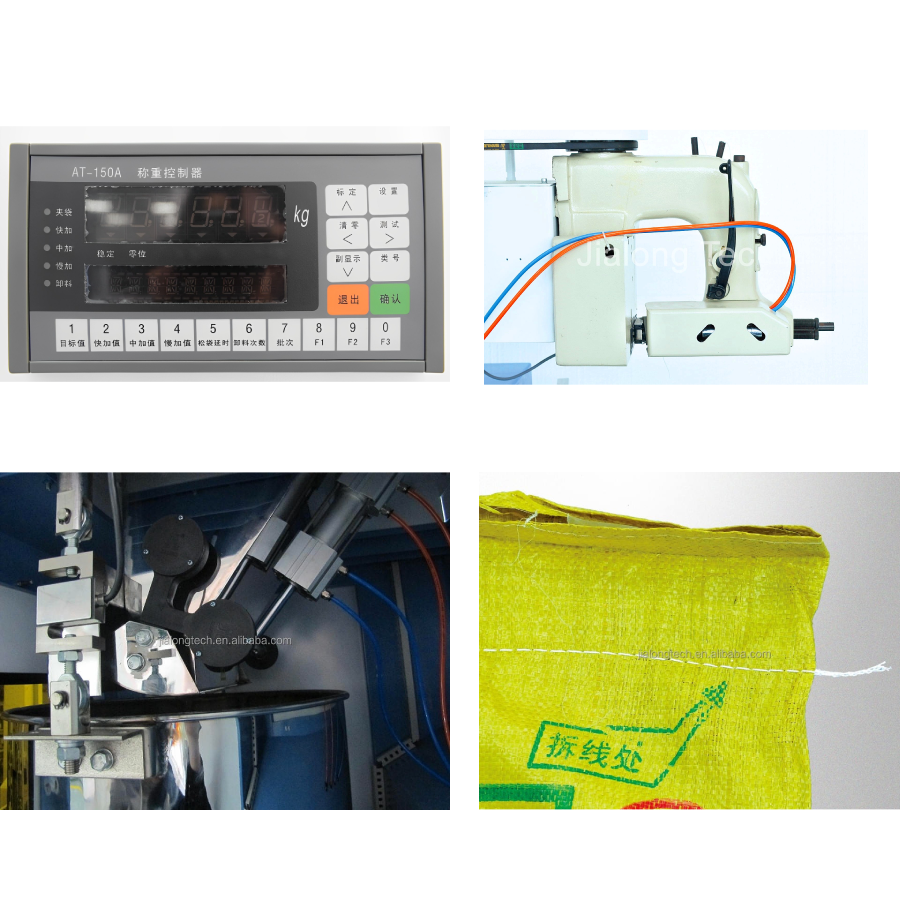

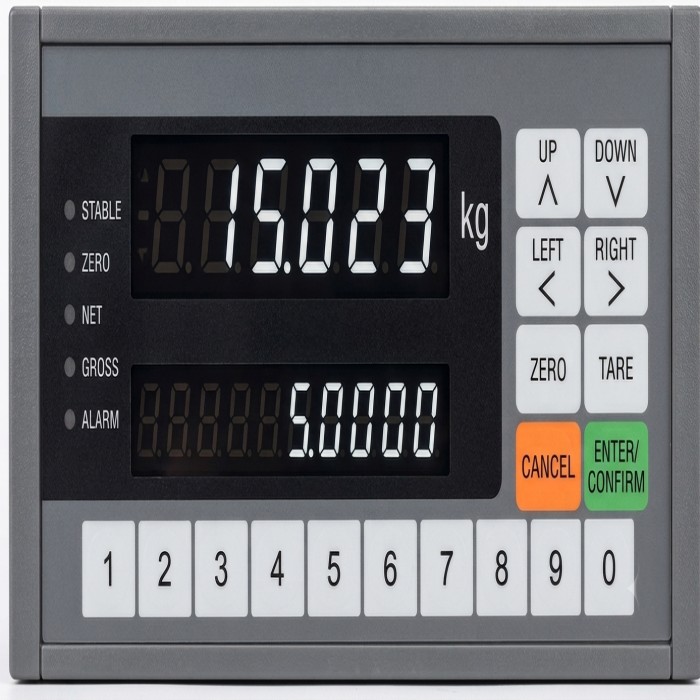

High-precision weighing controller — automatic error correction, auto alarm for over and under tolerance, fault auto diagnosis
One key recovery function — press reset key to instantly return to default parameters
Super anti-vibration and anti-interference filter — ensures stable and accurate weighing throughout
RS232/485 interface reserved — for data communication with peripheral management system

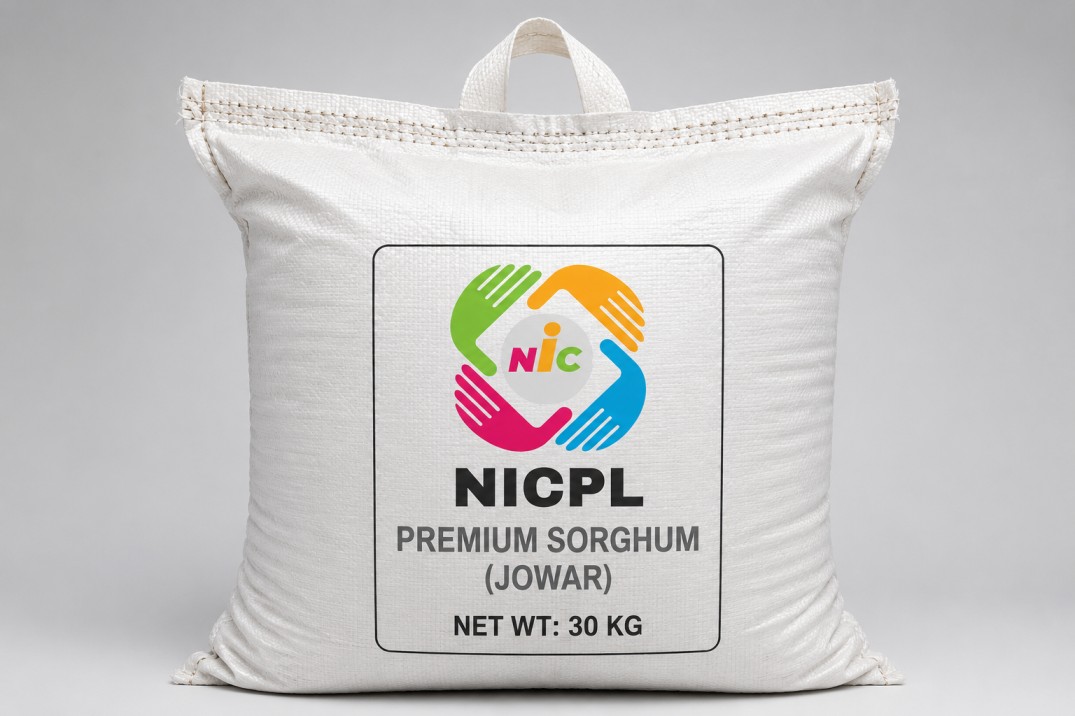

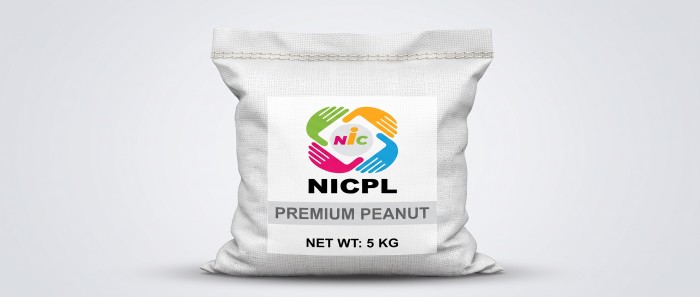

Application
Basic Info
| Model | DCS-50-A3 |
| Weighing Range | 5 – 50 kg |
| Packing Speed | 300 – 400 bags/hr |
| Scale Interval | 10 g |
| Accuracy Grade | X(0.2) |
| Power Supply | 4N-AC 380V 50Hz 1KW |
| Air Source | 0.4~0.6 MPa — 1m³/h |

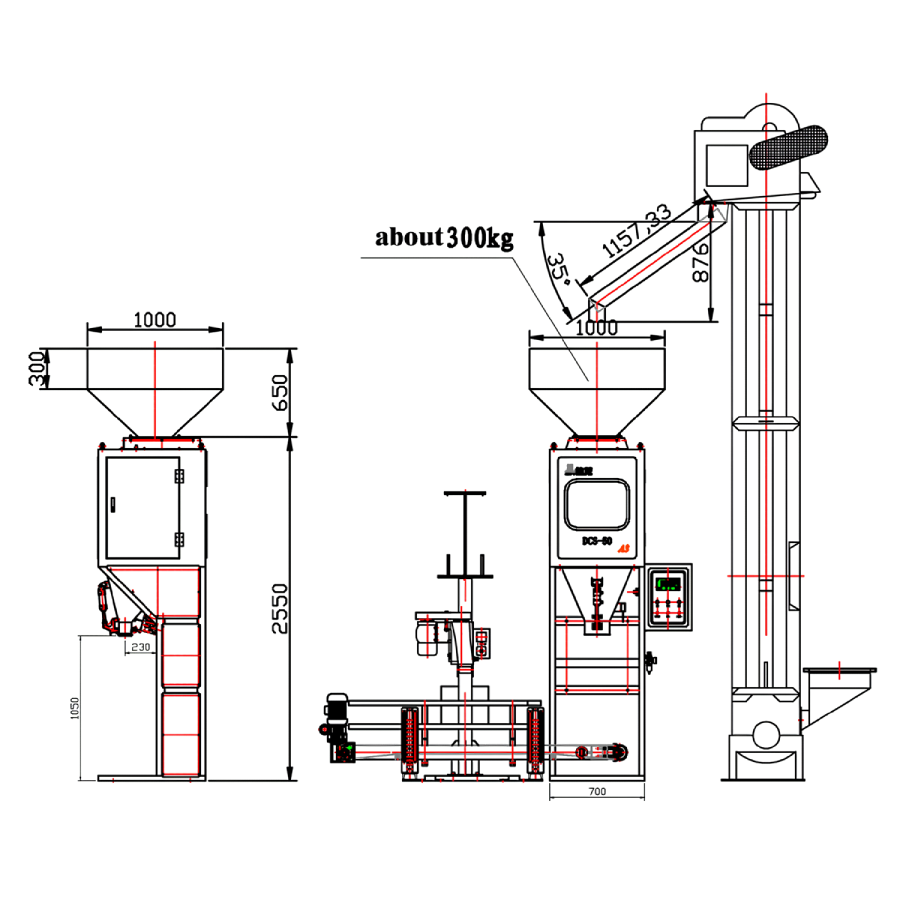

| Outside Height | 2600 mm |

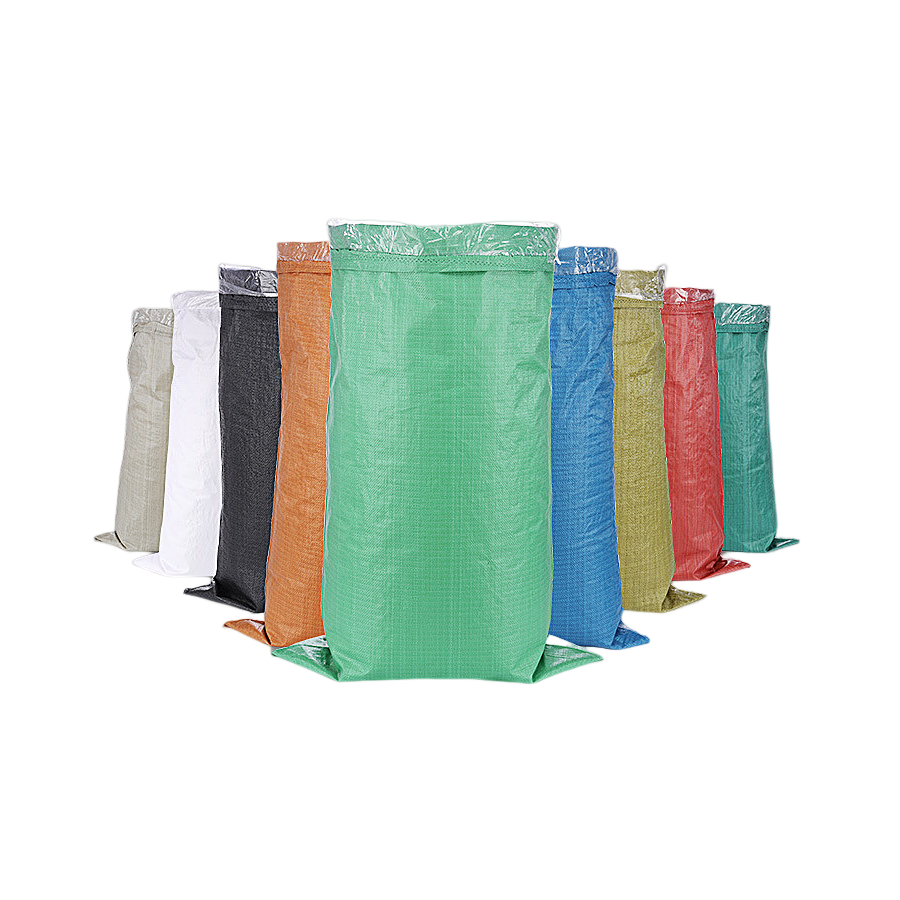

| Bag Type | PP Woven Bag |
| Vendor | Zhangzhou Jialong Technology Inc. |
