🌾 GRAIN BAGGING
DCS-5S-3A
0.5–10 kg
500–900 Bags/hr

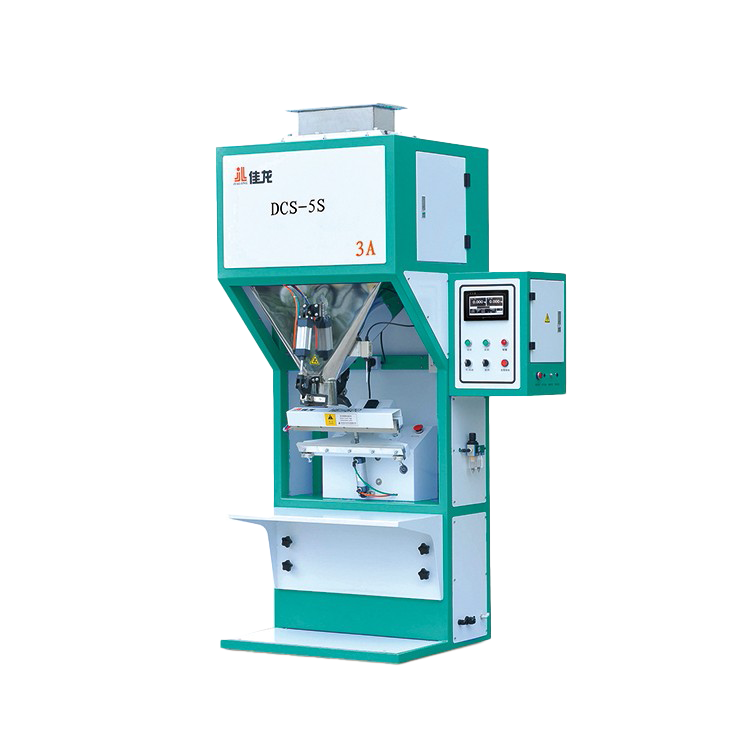

DCS-5S-3A 5kg Rice Packing Machine
With Heat Sealer
With Heat Sealer
Semi-automatic grain bagging machine for quantitative weighing and heat-seal packaging of particle materials. Double feeding and weighing system for high-speed packaging — greatly improves production yield with precise and stable performance.
Key Features
Suitable for particle material weighing and packaging — rice, buckwheat, oats, barley, coarse cereals and all granular materials
Double feeding and weighing — high-speed packaging that greatly improves production yield
Precise weighing, stable performance and easy operation — minimal training required
High-quality control instrument, load cell and pneumatic elements — reliable long-term operation
Automatic error correction — alarm for over and under tolerance with fault auto diagnosis
Parts in contact with raw material made of stainless steel — hygienic and long service life
RS232/485 interface reserved — for data communication with peripheral management system
Application
Basic Info
| Model | DCS-5S-3A |
| Weighing Range | 0.5 – 10 kg |
| Speed (0.5–5kg) | 500 – 900 bags/hr |
| Speed (5–10kg) | 300 – 400 bags/hr |
| Accuracy Grade | X(0.5) |
| Power Supply | 4N-AC 380V 50Hz 0.8KW |
| Air Source | 0.4~0.6 MPa — 1m³/h |

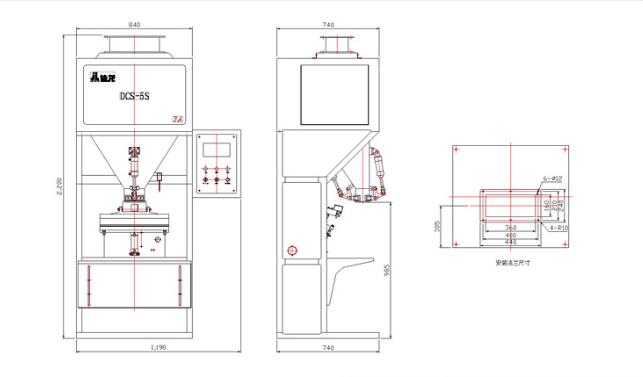

| Outside Height | 2200 mm |
| Sealing Mode | Heat Sealer |
| Vendor | Zhangzhou Jialong Technology Inc. |
Precise Weighing & High-Speed Packaging
- Suitable for particle material weighing and packaging — rice, buckwheat, oats, barley, coarse cereals and all granular materials
- Double feeding and weighing system — high-speed packaging that greatly improves production yield
- Precise weighing with stable performance and easy operation — minimal operator training required
Durable Construction & Intelligent Control
- High-quality control instrument, load cell and pneumatic elements — reliable and consistent long-term operation
- Automatic error correction — alarm for over and under tolerance with fault auto diagnosis built in
- All parts in contact with raw material made of stainless steel — hygienic, food-safe and long service life
- RS232/485 interface reserved for data communication with peripheral management system
Key Technical Features
Double Feeding & Weighing
Double feeding and weighing system — high-speed packaging that greatly improves production yield.
500–900 Bags/hr
High-speed output for 0.5–5kg packs — up to 900 bags per hour for maximum productivity.

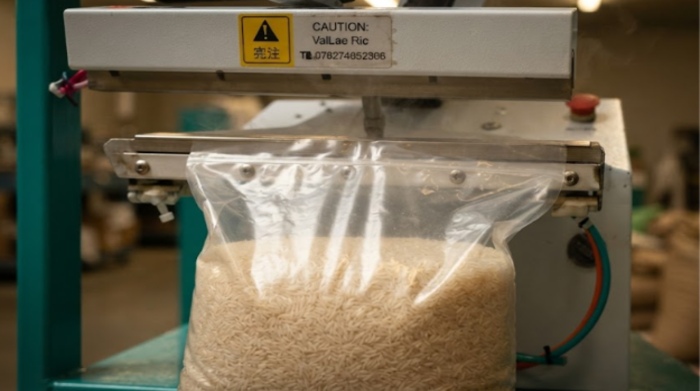

Heat Sealer
Airtight heat sealing — maintains freshness, extends shelf life and prevents moisture entry.
Precise Weighing
Accurate to grams — stable and consistent fill weight for every pack produced.
Stainless Steel Parts
All food-contact parts made of stainless steel — hygienic, food-safe and long service life.
Auto Error Correction
Automatic error correction with alarm for over and under tolerance — fault auto diagnosis built in.
RS232/485 Interface
Reserved for data communication with peripheral management system — easy line integration.
Multi-Product
Works with rice, buckwheat, oats, barley, coarse cereals, beans, seeds, sugar and all granular products.
Rice Mill Ready
Designed specifically for rice mill, dal mill and flour mill installation requirements in India.
24×7 Support
NICPL service team available 24×7 — installation, training and after-sales support.
Spare Parts Available
Genuine Jialong spare parts available through NICPL — fast delivery across India.
India Ready
Three phase 415V / single phase 220V / 50Hz — standard Indian electrical supply compatible.
Technical Specifications
| Parameter | Spec / Value |
|---|---|
| Model | DCS-5S-3A |
| Weighing Range | 0.5 – 10 kg |
| Speed (0.5–5kg) | 500 – 900 bags/hr |
| Speed (5–10kg) | 300 – 400 bags/hr |
| Accuracy Grade | X(0.5) |
| Power Supply | 4N-AC 380V 50Hz 0.8KW |
| Air Source | 0.4~0.6 MPa — 1m³/h |
| Outside Height | 2200 mm |
| Sealing Method | Heat Sealer |
| Application | Rice, Buckwheat, Oats, Barley, Coarse Cereals, Beans, Seeds, Sugar, Dal, Peas |
