LZB-300-FR5 Rice Vacuum Packing Machine — 0.5–5kg Flat & Brick Shape — click outside to close
🔍 Click to zoom






🛡️ 1 Year Warranty
🔵 VACUUM PACKING
LZB-300-FR5
0.5–5 kg
Two-in-One
LZB-300-FR5 Rice Vacuum Packing Machine — 0.5–5kg Flat & Brick Shape
Two-in-one vacuum packer producing flat shape and brick shape simultaneously — saves time and cost. Unique cubic and flatten shaping mechanism with flexible packing size, easy mold change. Fully automated from bag giving to conveying.
Description
▼
Two-in-one vacuum packer producing flat shape and brick shape simultaneously — saves time and cost. Unique cubic and flatten shaping mechanism with flexible packing size, easy mold change. Fully automated from bag giving to conveying with Germany vacuum pumps and Omron PLC control.
Key Benefits:
🔲 Two in One Vacuum Packer — Packs both brick shape and flat shape vacuum bags on same machine simultaneously
📦 0.5 to 5 kg Range — Ideal for premium retail rice packs from 500 gram to 5 kg consumer bags
⚡ Up to 360 Bags Per Hour — High speed 300 to 360 bags per hour for brick shape vacuum packing
🤖 Semi-Automatic Process — Auto bag giving weighing filling shaping vacuum sealing discharge and conveying
🇩🇪 Germany LEYBOLD Vacuum Pump — World class German LEYBOLD vacuum pump for stable reliable vacuum
🖥️ Omron Japan PLC Control — Premium Japan Omron PLC and touch screen for intelligent centralized control
🔧 3 Minute Mold Change — Change packaging mold in under 3 minutes without any tools required
🇺🇸 USA Celtron Load Cell — World class American Celtron load cell with 1 gram precision interval
🌿 Eco Friendly Design — Environment friendly design with fault self-test function for easy maintenance
📡 RS232 RS485 Port — Data communication port for integration with external management systems
What products is it suitable for?
▼
❌ Before Packing
✅ After Packing

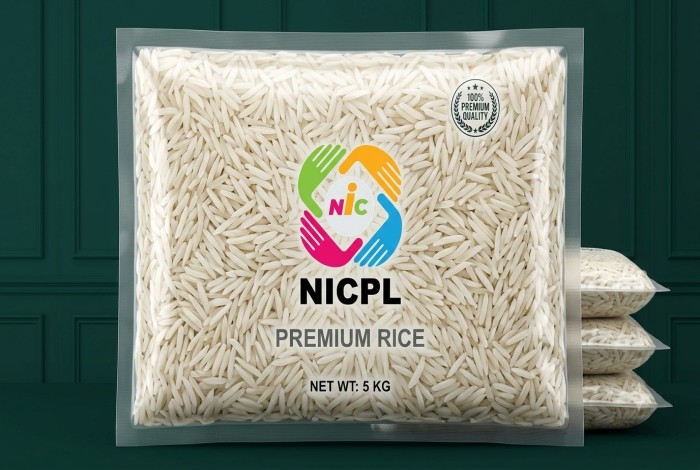

🌾 RICE VACUUM-PACK
VS
🌾 RICE VACUUM-PACK

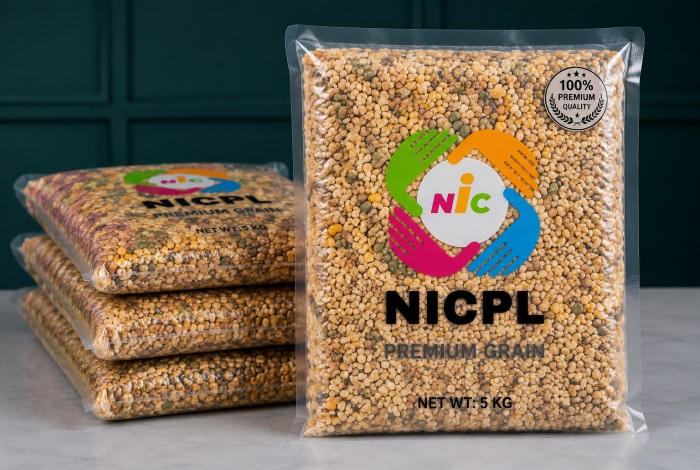

🌾 GRAIN VACUUM-PACK
VS
🌾 GRAIN VACUUM-PACK

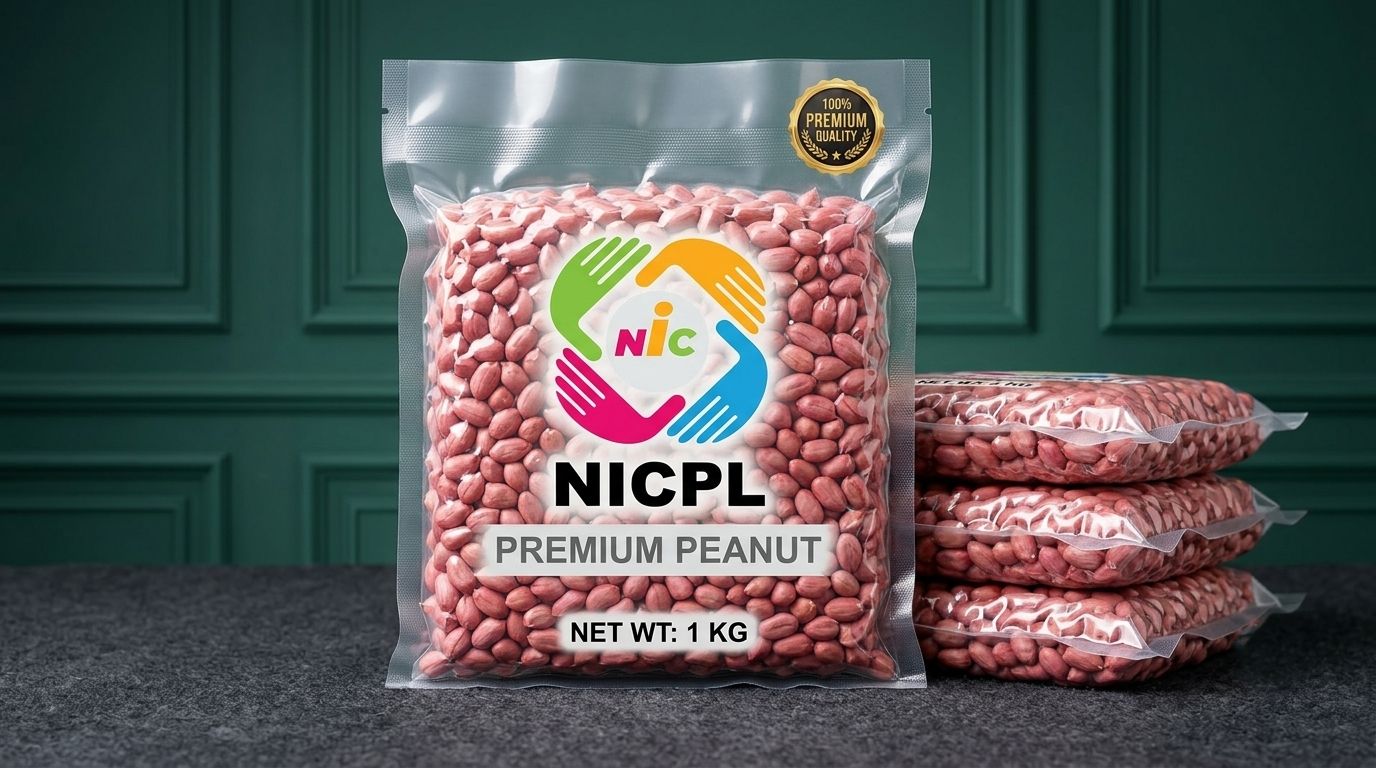

🥜 PEANUT VACUUM-PACK
VS
🥜 PEANUT VACUUM-PACK

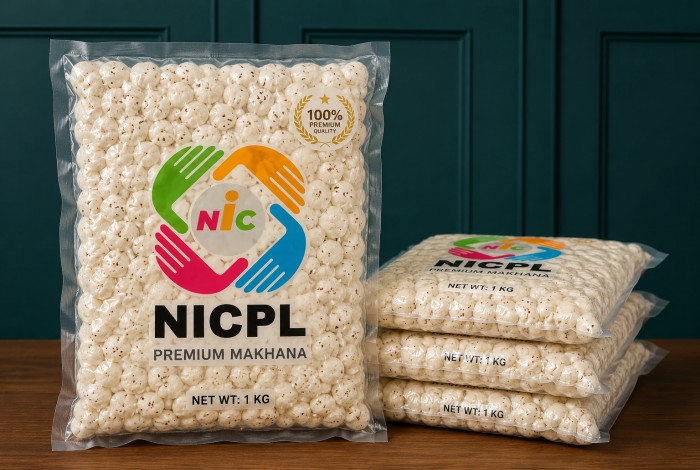

🍃 MAKHANA VACUUM-PACK
VS
🍃 MAKHANA VACUUM-PACK
🎡 SOYABEAN CHUNKS VACUUM-PACK
VS
🎡 SOYABEAN CHUNKS VACUUM-PACK
CASHEW NUTS VACUUM-PACK
VS
CASHEW NUTS VACUUM-PACK
Technical Specifications
▼
| Parameter | LZB-300-FR5 |
|---|---|
| Model | LZB-300-FR5 |
| Weighing Range | 0.5 – 5 kg |
| Speed (Brick Shape) | 300 – 360 bags/hr |
| Speed (Flat Shape) | 200 – 250 bags/hr |
| Scale Interval | 1 g |
| Accuracy Grade | X(0.5) |
| Power Supply | 4N-AC 380V 50Hz 3.8KW |
| Air Source | 0.4~0.6 MPa — 3m³/h |
| Outside Height | 2400 mm |
| Application | Rice, Grain, Peanut, Soybean, Wheat, Millet, Corn, Seeds, Lentil, Cashew Nuts, Salt, Barley, Oats, Maize, Sunflower, Makhana |
| Shape | Brick + Flat (2 in 1) |
| Best For | Two shape flexibility |
| Height | 2400 mm |
| Company | NICPL |
Features
▼

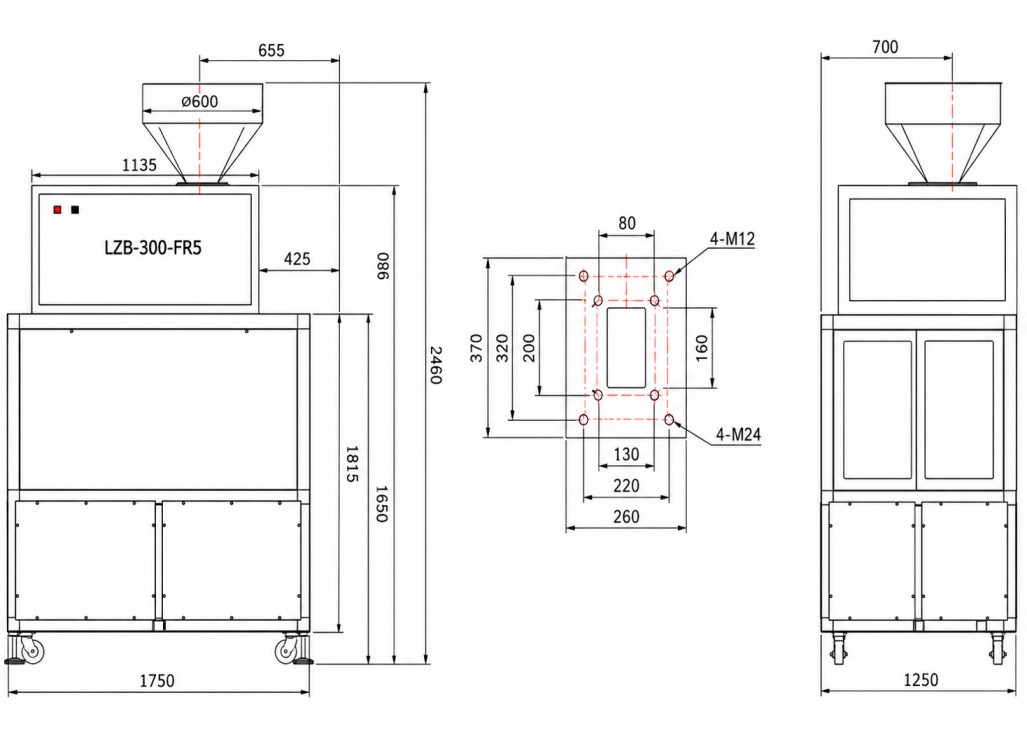

📐 Machine Dimensions
🔲 Heavy Hopper
⏏️ Vacuum Packing System

📐 Total Machine Width — 1750 mm compact footprint fits easily in standard rice mill facility
📏 Total Machine Height — 2460 mm full height including grain inlet hopper on top
🔲 Control Panel Width — 1135 mm wide front panel with model LZB-300-FR5 clearly labeled
📦 Machine Depth — 425 mm compact depth for easy installation in limited floor space
🔄 Hopper Diameter — Φ600 mm wide grain inlet hopper opening for fast continuous grain feeding
📐 Hopper Section Width — 655 mm top hopper section width for stable grain flow into machine
🔩 Flange Bolt Pattern — 4-M12 and 4-M24 bolt holes for secure and stable floor or frame mounting
📏 Internal Heights — 1815 mm and 1650 mm internal compartment heights for component access
🔧 Side View Width — 1250 mm side profile width with 700 mm top hopper section
🛞 Castors Included — Machine mounted on four castors for easy movement and repositioning on floor

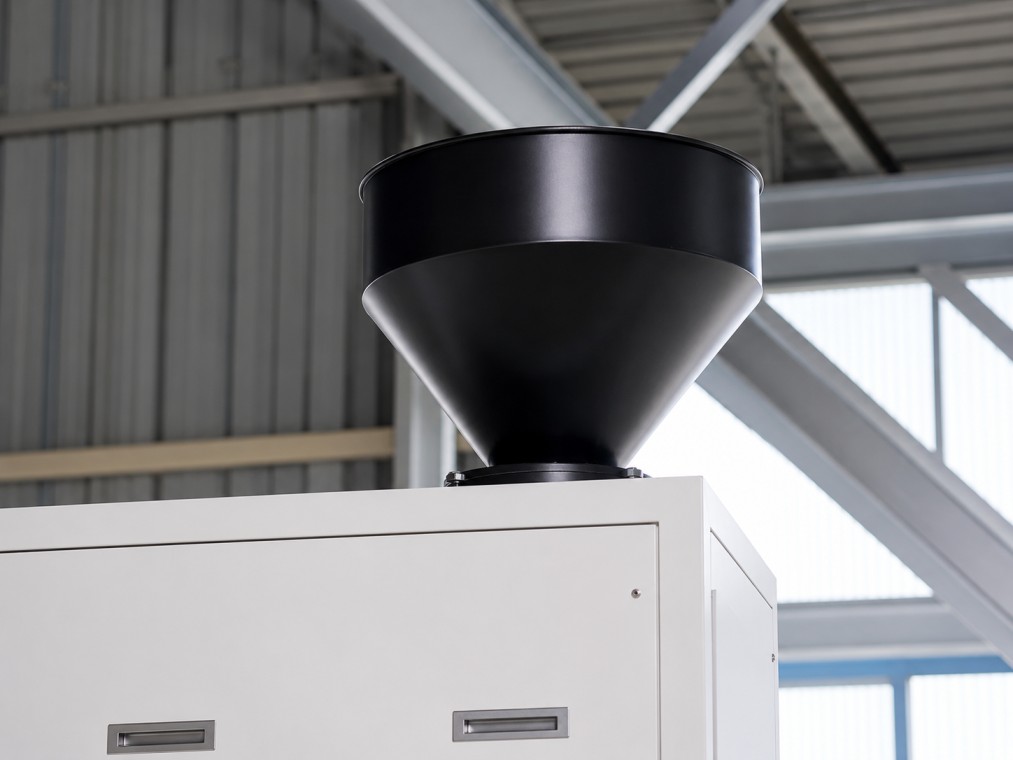

🔲 Φ600mm Wide Inlet Hopper — Large diameter 600mm black funnel hopper ensures fast continuous grain feeding
🌾 Large Capacity Opening — Wide open top bowl design holds substantial grain volume for uninterrupted feeding
📐 Precision Funnel Design — Tapered cone funnel channels grain smoothly into weighing system below
🔩 Secure Bolt Mounting — Heavy duty bolt ring connection secures hopper firmly to machine top without vibration
🏭 Industrial Grade Build — Thick steel hopper construction withstands continuous heavy grain loading daily
🌟 Smooth Internal Surface — Smooth internal hopper surface ensures clean grain flow without blockage or jamming

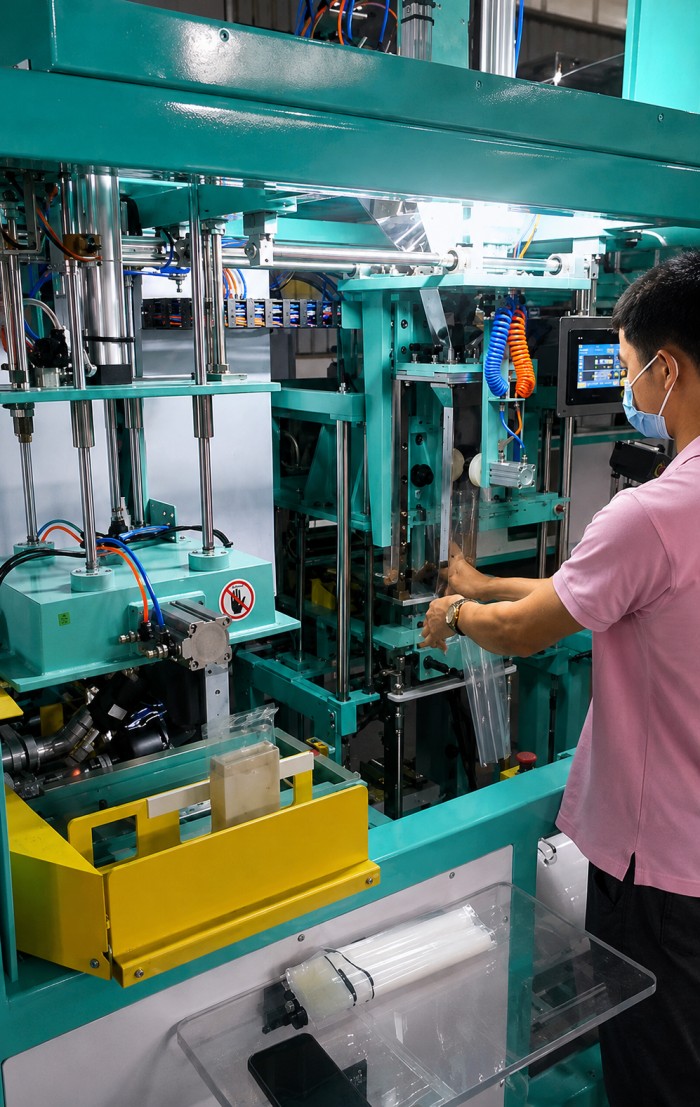

🤖 Fully Automatic Operation — Complete auto process from bag feeding weighing filling shaping vacuum sealing to discharge
🔵 SMC Pneumatic System — Premium blue and orange SMC pneumatic tubes and cylinders control all mechanical movements
🖥️ Omron Touch Screen — Japan Omron touch screen control panel visible on right for intelligent centralized control
🟡 Yellow Collection Tray — Built in yellow collection tray catches and organizes finished vacuum packed bags
🔩 Chrome Steel Guide Rails — Precision chrome steel vertical guide rails ensure smooth accurate mechanical movement
⚠️ Safety Warning Panel — Red hand safety warning sign protects operators from mechanical pinch points
🌀 Vacuum Pump System — Germany LEYBOLD vacuum pump system creates perfect airtight vacuum in every bag
🔧 Pneumatic Bag Handler — Automated pneumatic arms open hold and position vacuum bags for filling automatically
📦 Transparent Bag Roll — Bottom bag roll system feeds fresh vacuum bags continuously into packing process
🏭 Heavy Duty Teal Frame — Robust teal green steel machine frame provides stable vibration free operation
Pre and After-Sales Service
▼
📞 Pre-Sales Service
Free consultation to select the right model for your product, bag size and hourly capacity
Live machine demonstration and product trial available before purchase
Detailed quotation with technical specifications and delivery timeline
Factory layout guidance for conveyor, power and air supply requirements
🛠️ After-Sales Service
On-site installation and commissioning by NICPL trained engineers
Operator training for machine operation, changeover and daily maintenance
Genuine Jialong spare parts available through NICPL — fast delivery across India
24×7 support helpline — remote troubleshooting and scheduled service visits
Frequently Asked Questions
▼
🔲 What is the LZB-300-FR5 Rice Vacuum Packer?+
🔲 Two in One Vacuum Machine — Produces both brick shape and flat shape vacuum bags on same machine
📦 0.5 to 5 kg Range — Perfect for premium retail rice packs from 500 gram to 5 kg consumer bags
⚡ 360 Bags Per Hour — High speed output of 300 to 360 brick shape bags per hour
🤖 Fully Automatic — Auto bag giving weighing filling shaping vacuum sealing discharge and conveying
🇩🇪 Germany Vacuum Pump — World class LEYBOLD Germany vacuum pump for stable reliable vacuum
🏆 Premium Retail Ready — Produces professional vacuum packed rice that commands premium retail prices
🔲 What is the Difference Between Brick Shape and Flat Shape?+
🔲 Brick Shape — Compact rectangular block shape vacuum bag stands upright on retail shelf
📄 Flat Shape — Flat sealed vacuum bag lies flat ideal for stacking and display
⚡ Brick Shape Speed — 300 to 360 bags per hour for cubic brick shape vacuum packing
📄 Flat Shape Speed — 200 to 250 bags per hour for flat shape vacuum packing
🔧 Same Machine Both — One machine produces both shapes with simple mold change
🛒 Retail Advantage — Brick shape stands out on supermarket shelf attracting more buyers
🤖 What is the Fully Automatic Process?+
1️⃣ Auto Bag Giving — Machine automatically picks and places empty vacuum bag in position
Auto Weighing — USA Celtron load cell weighs precise grain quantity with 1 gram accuracy
Auto Filling — Grain automatically fills into positioned bag without operator involvement
Cubic Shaping — Machine shapes bag into perfect brick or flat form automatically
Auto Vacuum — Germany LEYBOLD pump removes all air creating perfect tight vacuum
Heat Sealing Discharge Conveying — Machine seals bag then discharges onto conveyor automatically
🇩🇪 Why is Germany LEYBOLD Vacuum Pump Special?+
🇩🇪 World Class German Brand — LEYBOLD is world renowned German vacuum technology manufacturer
💨 Deep Consistent Vacuum — Achieves deep consistent vacuum level in every bag reliably
🛡️ Extremely Stable — German engineering ensures stable vacuum performance during continuous operation
⏳ Long Service Life — Premium German build quality delivers exceptionally long pump service life
🔇 Low Noise Operation — German precision engineering results in quieter smoother pump operation
✅ Food Grade Safe — LEYBOLD vacuum pump certified safe for food packaging applications
🔧 How Fast Can the Mold Be Changed?+
🔧 Under 3 Minutes — Complete mold change between packaging specifications in under 3 minutes
🔩 No Tools Required — Mold change requires zero tools making it fast and operator friendly
📦 Flexible Sizes — Easy mold change enables quick switching between 500g 1kg 2kg 5kg sizes
⚡ Minimal Downtime — Under 3 minute changeover keeps production downtime to absolute minimum
👨🔧 Any Operator Can Do It — Simple tool-free design means no technical expertise needed
💰 More Products Same Machine — Quick mold change makes one machine serve multiple product lines
🖥️ What Control System Does the Machine Use?+
🖥️ Omron Japan Touch Screen — Premium Japan Omron touch screen for friendly easy operation
⚙️ Omron Japan PLC — Centralized Omron PLC intelligently controls entire automated process
🔌 Omron Japan Power Supply — Stable Omron power supply ensures consistent reliable operation
🇨🇦 Canada General Measure Controller — Professional Canadian weighing controller for precision
🛡️ Fault Self-Test Function — Machine automatically detects and reports faults for easy maintenance
📡 RS232 RS485 Port — Data port for integration with external management systems
⚡ What Are the Technical Specifications?+
📦 Weighing Range — 0.5 to 5 kg per bag for all premium retail pack sizes
⚡ Brick Shape Speed — 300 to 360 bags per hour for cubic brick vacuum packing
📄 Flat Shape Speed — 200 to 250 bags per hour for flat shape vacuum packing
🎯 Scale Interval — 1 gram ultra fine interval for maximum weighing precision
🔌 Power Supply — 4N AC 380V 50Hz 3.8 KW three phase power requirement
💨 Air Requirement — 0.4 to 0.6 MPa compressed air at 3 cubic meters per hour
🌿 What Does Eco Friendly Design Mean?+
🌿 Environmental Responsibility — Machine designed with eco friendly principles throughout
⚡ Energy Efficient — Optimized power consumption reduces electricity usage per bag packed
🔇 Low Noise Operation — German vacuum pump and precision components minimize noise pollution
♻️ Minimal Waste — Precise weighing and vacuum process minimizes material waste per bag
🛡️ Safe Materials — All contact materials food grade and environmentally safe certified
✅ Sustainable Operation — Eco friendly design supports responsible food packaging practices
📦 What Are the Packing & Payment Terms?+
🚢 Ex-Works Nhava Sheva — All prices ex-works Nhava Sheva unless otherwise agreed
🚛 Freight & Insurance Extra — Freight and transit insurance charged extra at actual cost
💳 30% Advance Payment — 30% advance required with original purchase order confirmation
💳 70% Before Dispatch — Remaining 70% balance required before machine dispatch
⏱️ 15 Working Days — Machine ready within 15 working days from order confirmation
🛡️ 12 Month Warranty — Full warranty from date of commissioning or 15 months from invoice
🎓 What Installation & Training Support Does NICPL Provide?+
🎓 Free Installation Visit — NICPL engineer visits for installation commissioning and training FOC
✅ Complete Commissioning — Full machine setup test run and calibration before handover
👨🔧 Operator Training — Hands on training for all operators including mold change procedure
🍽️ Customer Bears Expenses — Customer arranges travel lodging and boarding for NICPL engineer
📞 Remote Support — NICPL helpline available for remote troubleshooting and guidance anytime
🔧 Genuine Spare Parts — Original Jialong spare parts available through NICPL pan India
🏆 Why Choose NICPL for Rice Vacuum Packer?+
🏆 20 Years Experience — NICPL has 20 years trusted experience in agricultural machinery India
✅ Authorized Jialong Dealer — NICPL is authorized dealer for Jialong products in India
🇩🇪 World Class Components — Germany LEYBOLD Japan Omron USA Celtron France Schneider
🎓 Complete Support — Free installation commissioning and operator training included
📞 24x7 After Sales — NICPL support team available via phone and WhatsApp anytime
💰 Best Value India — World class rice vacuum packer at most competitive price in India
