ZDB-600-Q9 25kg–50kg Rice Packing Line Solution Bagging Palletizing

ZDB-600-Q9 Rice Packing Line Solution 25–50kg

🏭 AUTOMATIC PACKING LINE ZDB-600-Q9 25–50 kg 500–600 Bags/hr

ZDB-600-Q9 Rice Packing Line Solution
25–50kg Bagging & Palletizing

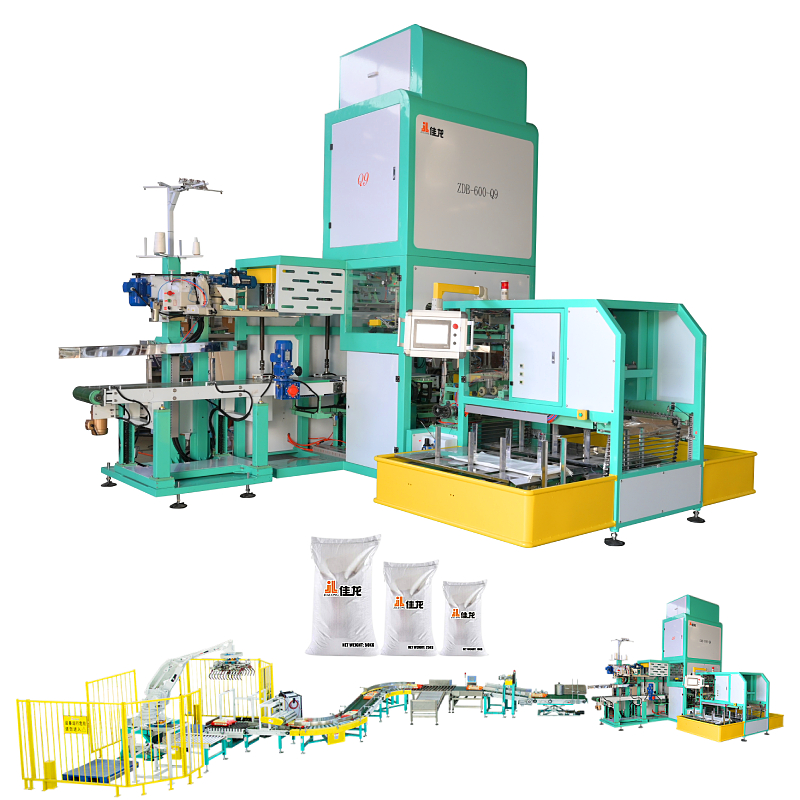

Complete automatic packing line for 25–50kg PP woven and paper bags — including auto bag-giving, high-speed weighing, packing, stitching, conveyor, metal detector, weighing scale and robot palletizing. 500–600 bags per hour. Outstanding speed, reliability and high flexibility.

Line Components Included

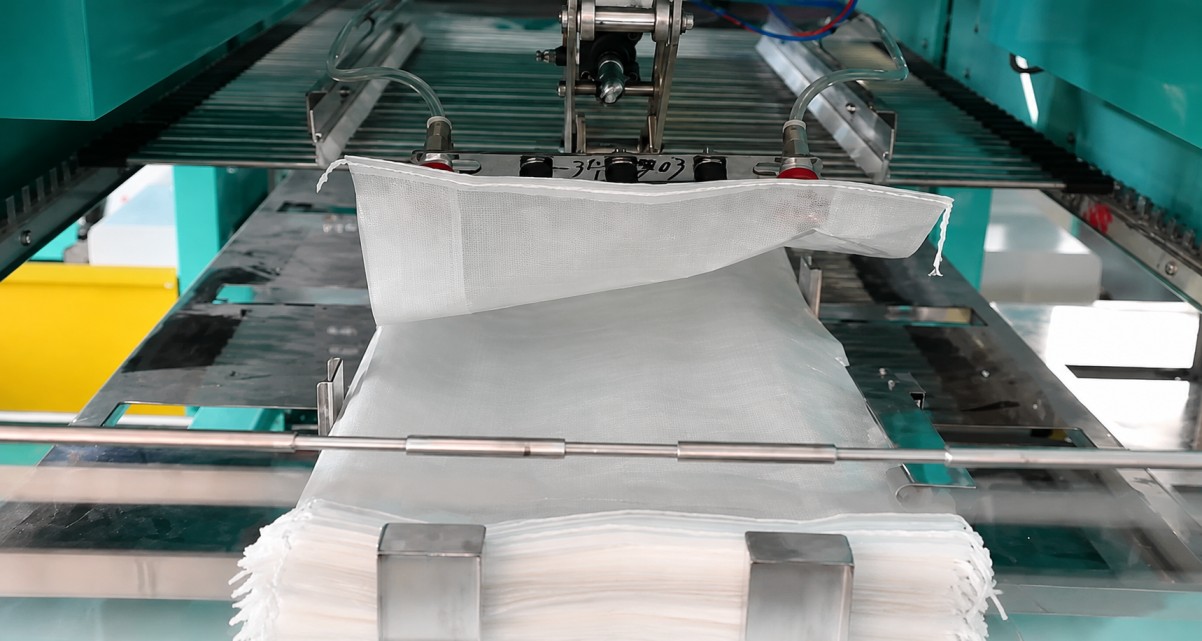

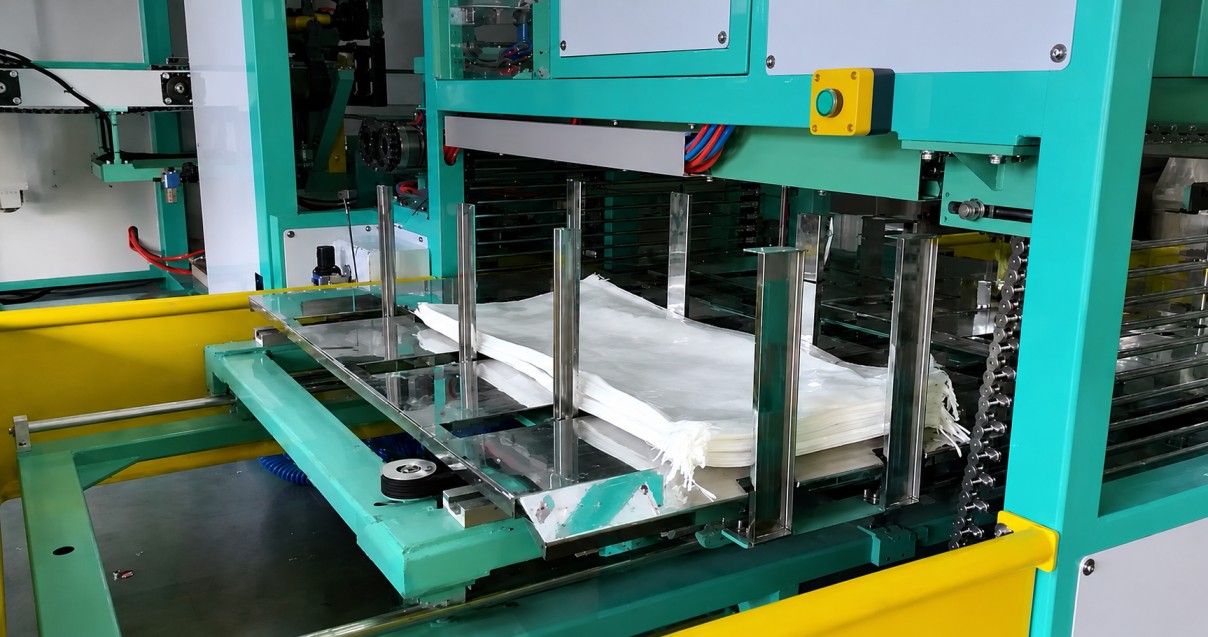

Double working station bag-giving system — 100–300 bags stored, alarm when either station's bags are finished

Air pressure detecting devices — unqualified bags kicked out automatically without stopping the line

High speed weighing scale — precise fill weight for every bag in the line

All major motors use servo motors — easy adjustment for different packing specifications, no manual adjustment needed

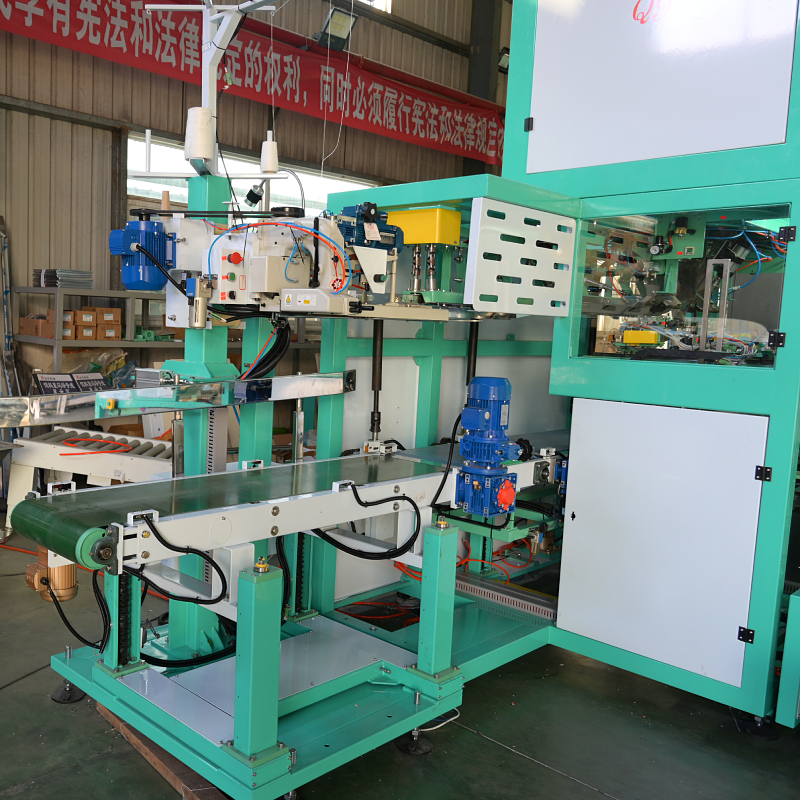

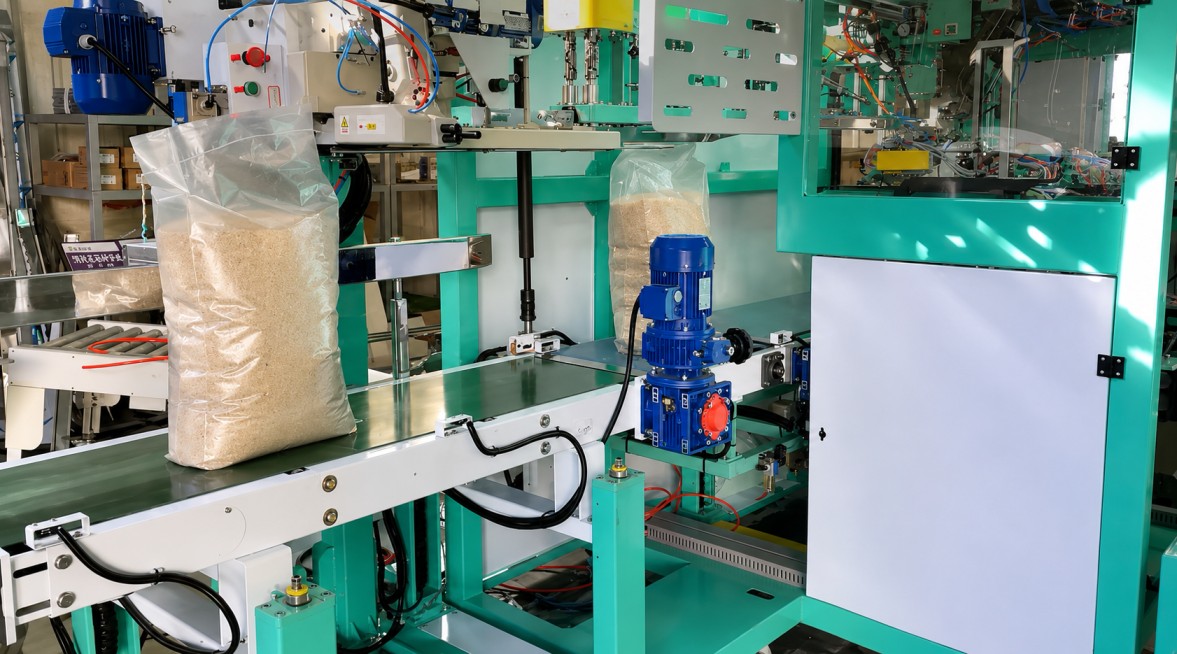

Plastic chain plate conveyor with gear meshing — no slip, no deflect, mechanical linkage ensures synchronization

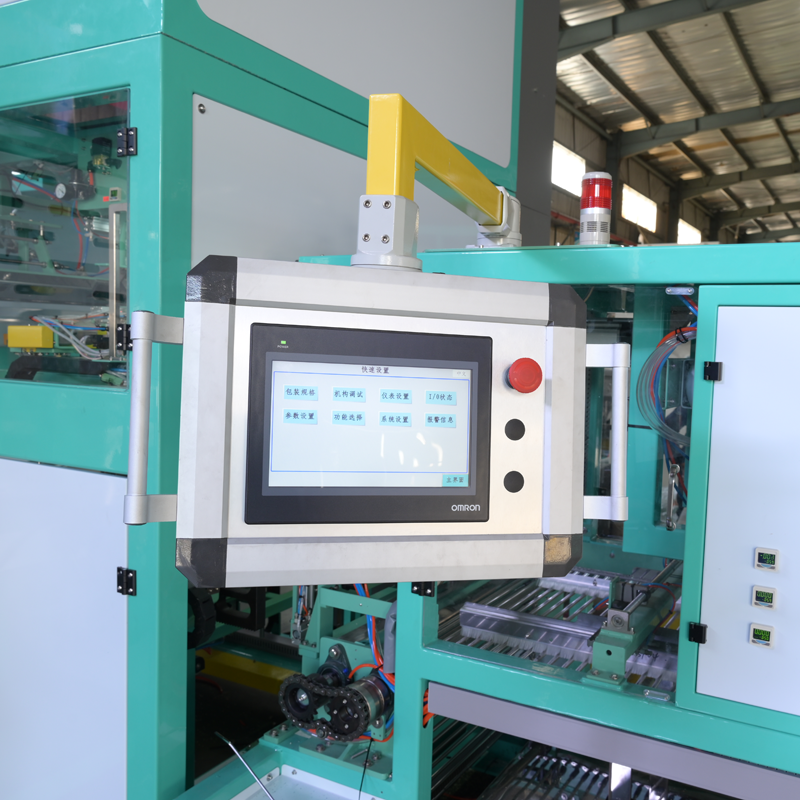

PLC with touch-sensitive operator interface — easy troubleshooting and error code reading

Tool-less changeover for multiple bag sizes — fast and simple specification changes

Stainless steel contact parts — food-safe, hygienic and long service life

Application

RiceGrainSoybean PeanutWheatFeed CornSeedsLentil SaltFlourBarley OatsMaizeSugar

Basic Info

Model	ZDB-600-Q9
Pack Weight Range	25 – 50 kg
Packing Speed	500 – 600 bags/hr
Bag Length	730 – 1100 mm
Bag Width	330 – 650 mm
Power Supply	380/220V 3-Phase 9KW
Air Source	0.5~0.6 MPa — 26m³/h
Bag Storage	100 – 300 bags
Bag Type	PP Woven Bag / Paper Bag
Vendor	Zhangzhou Jialong Technology Inc.

Get Free Quote WhatsApp +91 70115 54903

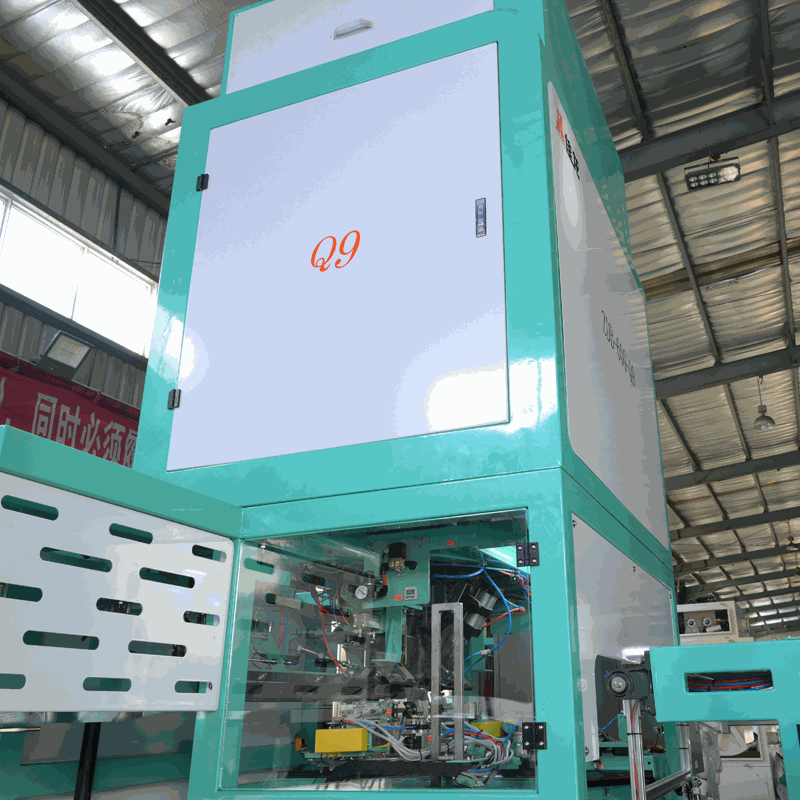

500–600 Bags/hr — Complete Auto Line

Double working station bag-giving system — 100–300 bags stored, alarm detector when either station is empty
Air pressure detecting devices throughout — unqualified bags kicked out automatically without stopping the line
All major motors use servo motors — easy adjustment for different bag specifications, no manual adjustment needed
Tool-less changeover for multiple bag sizes — fast and simple specification changes on the fly

Advanced Control & Reliable Conveying

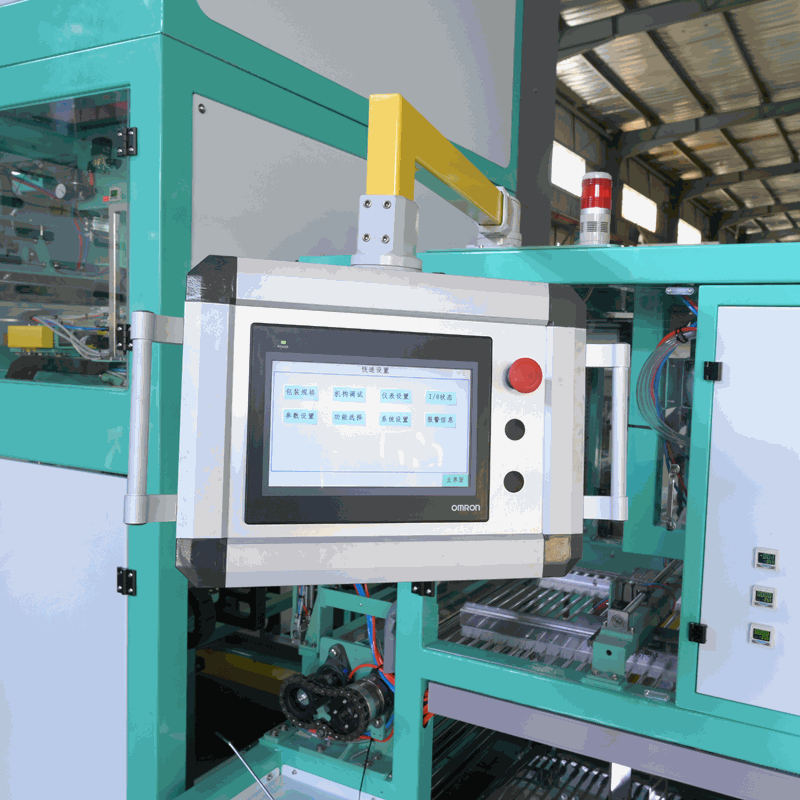

PLC with touch-sensitive operator interface — easy troubleshooting and error code reading for operators
Plastic chain plate conveyor with gear meshing — no slip, no deflect, mechanical linkage ensures synchronization
Big finger cylinder ensures smooth bag mouth — consistent, clean bag closure every cycle
Stainless steel food-contact parts — food-safe, hygienic and long service life
Handles PP woven bags and paper bags — 25kg to 50kg for rice mills, dal mills and grain processors

Key Technical Features

⚡

500–600 Bags/hr

High-speed complete line — 500 to 600 bags per hour for 25–50kg packs continuously.

📦

Double Station Bag Give

100–300 bags stored in double working station — alarm if either station is empty, no stoppage.

🛡️

Air Pressure Detection

Detects unqualified bags throughout the process — kicks them out automatically without stopping.

🔧

Servo Motor Drive

All major motors are servo motors — easy spec adjustment, no manual intervention needed.

🔄

Chain Plate Conveyor

Plastic chain plate with gear meshing — no slip, no deflect, synchronized conveying throughout.

📟

PLC Touch Interface

Programmable logic controller with touch-sensitive interface — easy troubleshooting and error reading.

🔑

Tool-Less Changeover

Multiple bag sizes — fast and simple tool-less changeover without stopping the production line.

🏗️

Big Finger Cylinder

Big finger cylinder ensures smooth bag mouth — consistent, clean bag closure every single cycle.

🌾

PP + Paper Bags

Works with PP woven bags and paper bags — 25kg to 50kg for all grain and rice packing operations.

🛡️

Stainless Steel Parts

All food-contact parts made of stainless steel — food-safe, hygienic and long service life.

🏭

Turnkey Solution

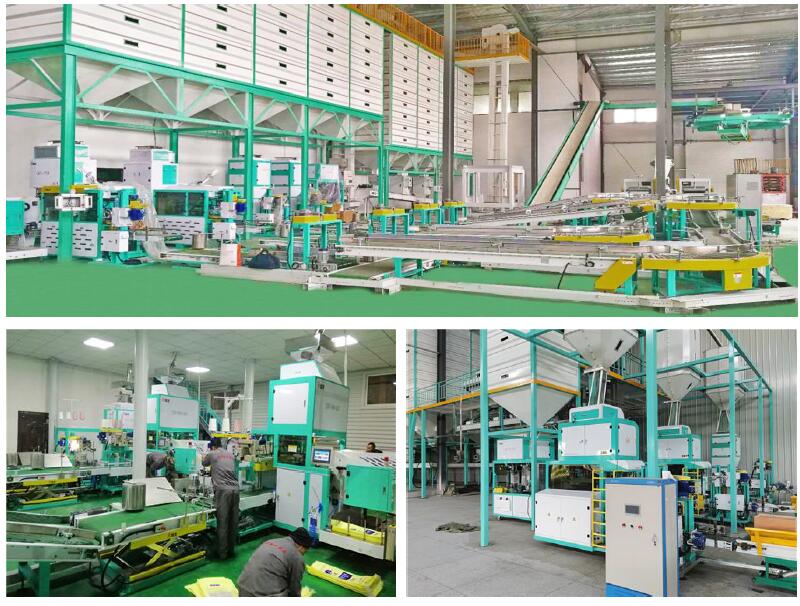

Complete line from bag giving to palletizing — one supplier for the entire packing system.

🇮🇳

India Ready

380/220V 3-phase — compatible with standard Indian industrial electrical supply.

Technical Specifications

Parameter	Spec / Value
Model	ZDB-600-Q9
Pack Weight Range	25 – 50 kg
Packing Speed	500 – 600 bags/hr
Bag Length	730 – 1100 mm
Bag Width	330 – 650 mm
Power Supply	380/220V 3-Phase — 9KW
Air Source	0.5~0.6 MPa — 26m³/h
Bag Storage	100 – 300 bags (Double Station)
Bag Type	PP Woven Bag / Paper Bag
Application	Rice, Grain, Soybean, Peanut, Wheat, Feed, Corn, Seeds, Lentil, Salt, Flour, Barley, Oats, Maize, Sugar
