🔵 VACUUM PACKING
LZB-500-FR10
0.5–10 kg
Two-in-One
LZB-500-FR10 Pulses & Rice Grain
Vacuum Packaging Machine — 0.5–10kg
Vacuum Packaging Machine — 0.5–10kg

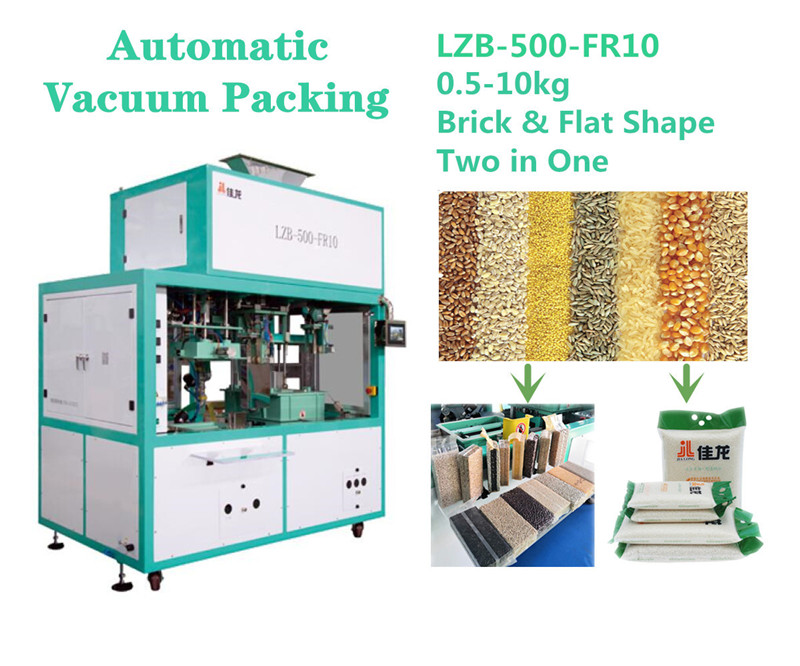

Two-in-one automatic vacuum packing machine — flat shape and brick shape simultaneously. Handles 0.5–10kg for rice, pulses, grains, peanuts and food. Fully automated from bag giving to conveying with Germany vacuum pumps and Omron PLC control.
Key Features
Two-in-one — flat shape and brick shape vacuum packing simultaneously, saves time and cost
Full auto process — auto bag giving, weighing, filling, cubic shaping, vacuum, heat sealing, discharge and conveying
Larger 0.5–10kg range — covers retail, institutional and mid-size bulk packing in one machine
Touch screen control — change mold in under 3 minutes without any tools
Omron PLC centralized control — intelligent real-time tracking of the entire packing process
Germany vacuum pumps — stable, reliable and long service life for continuous operation
Device with fault self-test function — maintenance is simple and convenient
RS232/485 serial port reserved — for data communication with external management system
Application
Basic Info
| Model | LZB-500-FR10 |
| Weighing Range | 0.5 – 10 kg |
| Speed (Brick Shape) | 300 – 360 bags/hr |
| Speed (Flat Shape) | 180 – 240 bags/hr |
| Scale Interval | 2 g |
| Accuracy Grade | X(0.5) |
| Power Supply | 4N-AC 380V 50Hz 4.0KW |
| Air Source | 0.4~0.6 MPa — 22m³/h |
| Outside Height | 2800 mm |
| Vendor | Zhangzhou Jialong Technology Inc. |
Two-in-One — Flat & Brick Shape Simultaneously
- Two-in-one vacuum packing — flat shape and brick shape produced simultaneously, saves time and cost for plant
- Wider 0.5–10kg range — single machine covers retail packs to mid-size institutional packing
- Touch screen control — change mold in under 3 minutes without any tools needed
- Omron PLC centralized control — intelligent real-time tracking of the entire packing process
Premium Components & Reliable Vacuum
- Germany vacuum pumps — stable, reliable and long service life for continuous production
- Imported load cell and SMC pneumatic elements — high reliability and long service life
- Unique cubic and flatten shaping mechanism — flexible packing size, easy mold change
- Device with fault self-test function — maintenance is simple and convenient
- RS232/485 serial port reserved for data communication with external management system
Key Technical Features
Two-in-One Vacuum
Flat shape and brick shape vacuum packing simultaneously — saves time and doubles production flexibility.
0.5–10kg Range
Wider range than standard models — covers retail packs to mid-size institutional packing in one machine.
Full Auto Process
Auto bag giving → weighing → filling → shaping → vacuum → heat sealing → discharge → conveying.
Omron PLC Control
Omron touch screen and PLC centralized control — real-time tracking with friendly interface.
3-Min Mold Change
Touch screen control — change mold in under 3 minutes without any tools.
Germany Vacuum Pump
Germany vacuum pumps — stable, reliable and long service life for continuous production.
Imported Load Cell
USA Celtron load cells — high-precision weighing with self-reduction and safety devices.
Fault Self-Test
Device with fault self-test function — maintenance is simple and convenient, minimal downtime.
Eco-Friendly Design
Aluminum and stainless steel main structure — attractive-looking, durable and eco-friendly.
RS232/485 Interface
Reserved for data communication with external management system — easy line integration.
Wide Application
Rice, pulses, dal, peas, lentils, chickpeas, grain, peanut, soybean, corn, seeds, cashew and more.
India Ready
4N-AC 380V 50Hz — compatible with standard Indian three phase electrical supply.
Technical Specifications
| Parameter | Spec / Value |
|---|---|
| Model | LZB-500-FR10 |
| Weighing Range | 0.5 – 10 kg |
| Speed (Brick Shape) | 300 – 360 bags/hr |
| Speed (Flat Shape) | 180 – 240 bags/hr |
| Scale Interval | 2 g |
| Accuracy Grade | X(0.5) |
| Power Supply | 4N-AC 380V 50Hz 4.0KW |
| Air Source | 0.4~0.6 MPa — 22m³/h |
| Outside Height | 2800 mm |
| Application | Rice, Pulses, Dal, Peas, Lentils, Chickpeas, Grain, Peanut, Soybean, Wheat, Corn, Seeds, Cashew Nuts, Salt |
