DCS-25K-L1 Maize Flour Powder Packing Machine for 1–10kg Bags

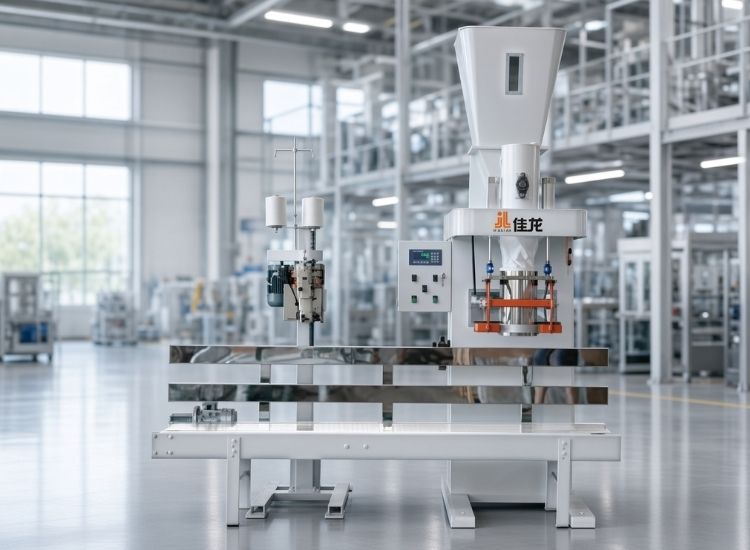

The DCS-25K-L1 is designed for accurate and efficient packing of maize flour, wheat flour, and other powder materials. It uses an auger feeding system and automatically performs weighing, bag sewing, and thread cutting, helping reduce manual work and maintain consistent packing. The machine can store parameters for 10 different package weights, making it easier to switch between different packing requirements.

Description

The DCS-25K-L1 1–10kg Maize Flour Powder Packing Machine is an automatic packing solution designed for weighing, packaging, bag closing, and conveying of powder materials such as maize flour, wheat flour, and other similar products. It supports two packing ranges, 1–5 kg and 5–10 kg, with an operating speed of 250–300 bags per hour. The auger feeding system helps provide controlled powder feeding, while automatic weighing, sewing, and thread cutting make the complete packing process more efficient. The machine features a high-precision controller with automatic error correction and can store parameters for up to 10 package weights. Operators can monitor the package weight, cumulative production output, and number of packages in real time. The adjustable thread length and sewing machine head height provide flexibility for different bag requirements, while the conveyor's guiding device helps prevent belt deviation and reduces scuffing of packages during conveying. The DCS-25K-L1 operates with a 380V AC, 50Hz power supply and requires 0.4–0.6 MPa air pressure. With its automatic packing functions, auger feeding system, adjustable sewing settings, real-time production display, and stable conveying system, it is a practical choice for businesses looking for an efficient maize flour and powder packaging machine.

Technical Specifications

ParameterDCS-25K-L1
Range1-5/ 5-10
Operation Speed250-300
Feeding MethodAuger
Accuracy Grade0.2%FS
Air Pressure0.4~0.6MPa
Power SupplyAC380V 50HZ
Working TemperatureT 0-40°
Relative Humidity≤90%
ApplicationFlour, Maize Flour, Wheat Flour and Other Powders

Features

Flexible Packing Range
Automatic Weighing, Sewing and Thread Cutting
10 Package Weight Storage
Real-Time Production Monitoring
Adjustable Sewing Settings
1–5 kg and 5–10 kg Packing: The machine supports two packing ranges, allowing you to pack different quantities according to your product and customer requirements.
Suitable for Powder Materials: Designed for maize flour, wheat flour, pulses flour, and other similar powder products.
Multiple Packing Sizes: You can use the same machine for different bag weights instead of using separate machines for each size.
Easy Weight Selection: Packing parameters can be adjusted according to the required bag weight for convenient operation.
Consistent Packing: Helps maintain a uniform quantity in each bag, improving packing quality and reducing weighing variation.
Automatic Weighing: The machine automatically measures the required quantity of product before filling the bag.
Automatic Bag Sewing: After filling, the machine automatically sews the bag to close it securely.
Automatic Thread Cutting: The thread is automatically cut after sewing, reducing the need for manual finishing.
Less Manual Work: The complete weighing, sewing, and thread-cutting process reduces operator involvement.
Faster Packing Process: Automation helps make the overall bag packing process smoother and more efficient.
Stores 10 Weight Parameters: The machine can automatically save settings for up to 10 different package weights.
Quick Setting Selection: Operators can select the required stored parameter when changing the packing weight.
Easy Product Changeover: Saved settings make it easier to switch between different package sizes.
Less Repeated Adjustment: Operators do not need to enter the same packing parameters repeatedly.
Convenient Operation: The stored parameters make daily machine operation simpler and more user-friendly.
Package Weight Display: The machine displays the weight of the package in real time during operation.
Cumulative Output: Operators can monitor the total quantity produced throughout the packing process.
Package Count: The system displays the number of packages completed in real time.
Easy Production Tracking: Operators can quickly check the machine's current production performance.
Better Process Control: Real-time information helps operators monitor the packing operation more effectively.
Adjustable Thread Length: The sewing thread length can be adjusted according to the bag and sewing requirements.
Adjustable Sewing Head Height: The height of the sewing machine head can be changed to suit different bag sizes.
Suitable for Different Bags: Adjustable settings provide flexibility when working with different packaging bags.
Proper Bag Closing: Correct sewing adjustments help ensure the filled bags are properly closed.
Easy Adjustment: Operators can modify the sewing settings according to their specific packaging needs.

Pre and After-Sales Service

📞 Pre-Sales Service

Free consultation to select the right model for your product, bag size and hourly capacity
Live machine demonstration and product trial available before purchase
Detailed quotation with technical specifications and delivery timeline
Factory layout guidance for conveyor, power and air supply requirements

🛠️ After-Sales Service

On-site installation and commissioning by NICPL trained engineers
Operator training for machine operation, changeover and daily maintenance
Genuine Jialong spare parts available through NICPL — fast delivery across India
24×7 support helpline — remote troubleshooting and scheduled service visits
