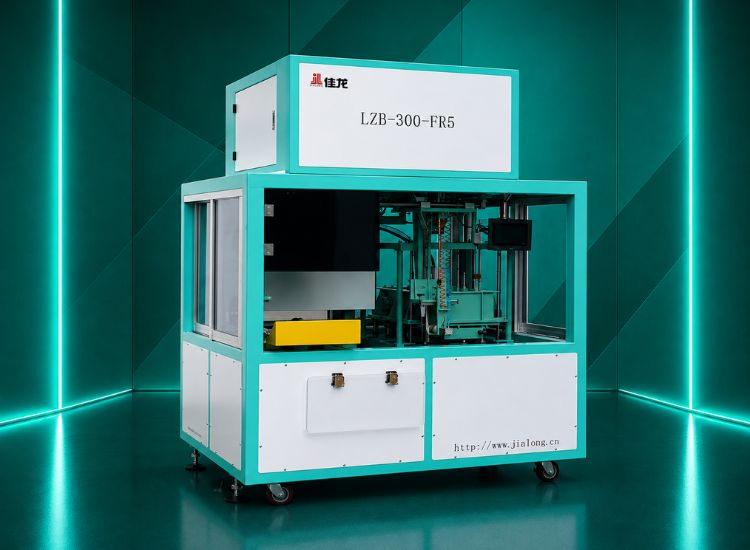

Want to pack rice in two different shapes without using two separate machines? The LZB-300-FR5 makes it possible. It can produce both brick-shaped and flat-shaped vacuum packs in the 0.5–5 kg range, giving you more flexibility when serving different packaging requirements. The machine automatically manages bag feeding, weighing, filling, shaping, vacuuming, heat sealing, discharge, and conveying, so there is less manual work involved. The machine is also designed to be simple for operators to use. The Omron PLC and touch screen make it easy to control and monitor the packing process, while the mould can be changed in around 3 minutes without any tools. With SMC pneumatic components, imported load cells, and a German vacuum pump, the machine is built for stable and reliable performance.

Description

The LZB-300-FR5 Two-in-One Rice Vacuum Packing Machine is a great option for businesses that want more packaging flexibility from one machine. Instead of using separate equipment for different pack shapes, this machine can produce both brick-shaped and flat-shaped vacuum packs in the 0.5–5 kg range. It is suitable for rice, grains, peanuts, and other food products. The machine can reach around 300–360 bags per hour for brick-shaped packs and 200–250 bags per hour for flat-shaped packs, depending on the product and packing conditions. From start to finish, the machine takes care of the main packing steps automatically. It handles bag feeding, weighing, filling, shaping, vacuuming, heat sealing, bag discharge, and conveying, helping reduce manual effort and keep the packing process organized. The Omron PLC and touch screen give operators a simple way to control the machine and see its working status in real time. The high-speed weighing system also automatically adjusts parameters to help maintain consistent filling. Changing from one packaging specification to another is quick and convenient. The mould can be changed in around 3 minutes without using tools, making production changeovers easier. The machine uses SMC pneumatic components, imported load cells, detection components, and a German vacuum pump to support reliable operation. Its aluminium and stainless steel structure is designed for durability, while the automatic fault self-test function helps identify problems and simplify maintenance. The LZB-300-FR5 also includes a reserved RS232/485 interface for communication with external management systems. Overall, it is a practical solution for rice and food processors looking for one machine that can handle two pack shapes, multiple pack sizes, and an automated vacuum packing process.

Technical Specifications

ParameterLZB-300-FR5
Weighing Range0.5–5 kg
Cubic Shape Packing Speed300–360 Bags/Hour
Flatten Shape Packing Speed200–250 Bags/Hour
Power Supply4N-AC 380V, 50Hz
Power Consumption3.8 kW
Air Consumption3 m³/h
Accuracy GradeX(0.5)

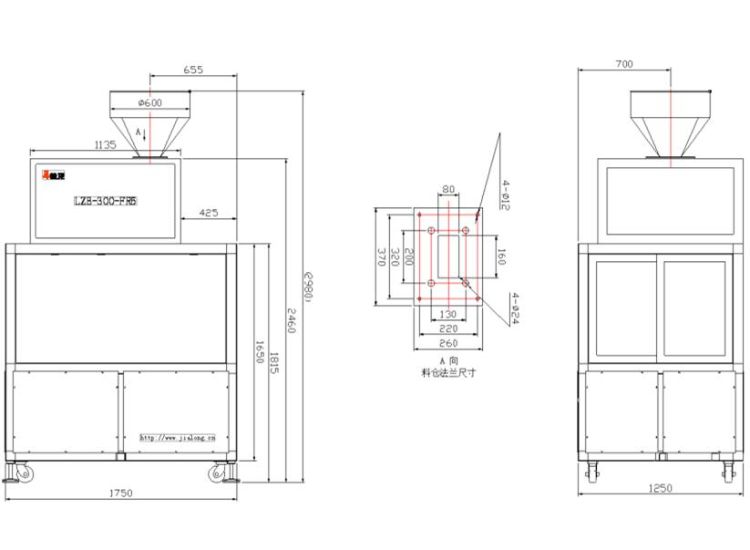

Machine Height2400 mm
Packaging TypeVacuum Packaging
Packaging ShapesBrick Shape & Flat Shape
ApplicationRice, Grains, Peanuts and Other Food Products

Pre and After-Sales Service

📞 Pre-Sales Service

Free consultation to select the right model for your product, bag size and hourly capacity
Live machine demonstration and product trial available before purchase
Detailed quotation with technical specifications and delivery timeline
Factory layout guidance for conveyor, power and air supply requirements

🛠️ After-Sales Service

On-site installation and commissioning by NICPL trained engineers
Operator training for machine operation, changeover and daily maintenance
Genuine Jialong spare parts available through NICPL — fast delivery across India
24×7 support helpline — remote troubleshooting and scheduled service visits
