CG.4.0 SERIES
Grain & Pulse
Multi-usage
Chute Type( | 2 | 4 | 6 | 8 | 10 | 13 | )
CG.4.0 Series Multi-usage Color Sorter
The MEYER CG.4.0 Color Sorter for Peanuts, Rajma, Cashew & Big Commodities is equipped with AI Deep Learning technology, advanced detection systems, and a high-speed Maglev Ejector capable of up to 1,200 ejections per second. It accurately removes moldy, discolored, insect-damaged, broken grains, and foreign materials while supporting size, length, and shape-based classification. With real-time parameter adjustment, flexible configuration, low material loss, and an intuitive user interface, it delivers stable, efficient, and high-precision sorting for grains, legumes, nuts, seeds, and big commodities.
Description
▾
The MEYER CG.4.0 Color Sorter for Peanuts, Rajma, Cashew & Big Commodities is equipped with AI Deep Learning technology, advanced detection systems, and a high-speed Maglev Ejector capable of up to 1,200 ejections per second. It accurately removes moldy, discolored, insect-damaged, broken grains, and foreign materials while supporting size, length, and shape-based classification. With real-time parameter adjustment, flexible configuration, low material loss, and an intuitive user interface, it delivers stable, efficient, and high-precision sorting for grains, legumes, nuts, seeds, and big commodities.
What materials is it suitable for?
▾
Rice
pulse
→
INPUT
✓
ACCEPT
✕
REJECT
Technical Specifications
▾
| Name | Model | Power (kW) | Voltage (V) | Air Pressure (MPa) | Air Consumption (m³/min) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|

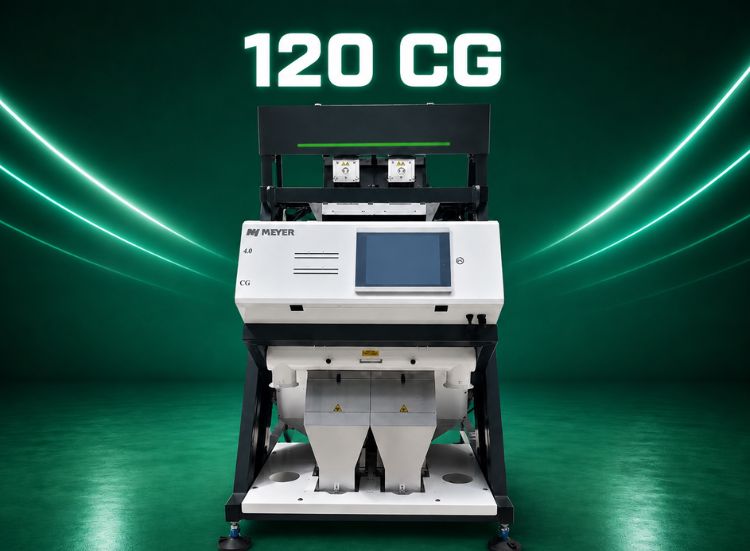

| CG.4.0 Series | 120CG.A (Chute 2) | 1.3 | 180～240 50Hz | 0.6～0.8 | <2.5 | 1299×1564×2020 | 750 |

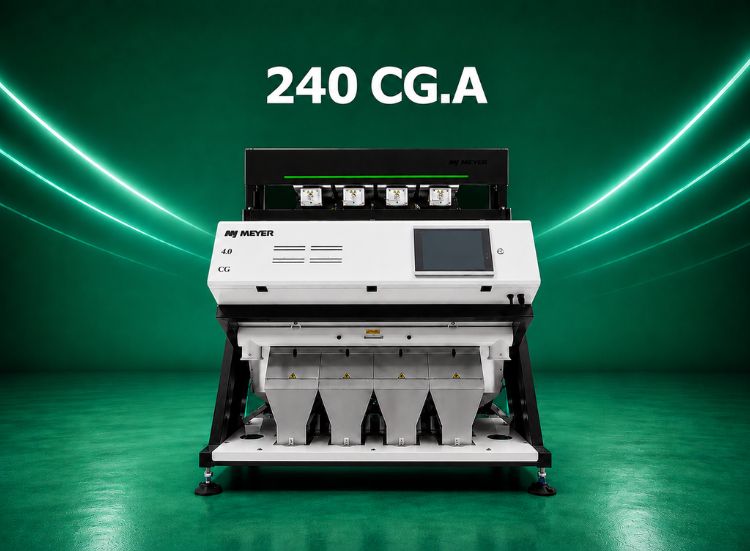

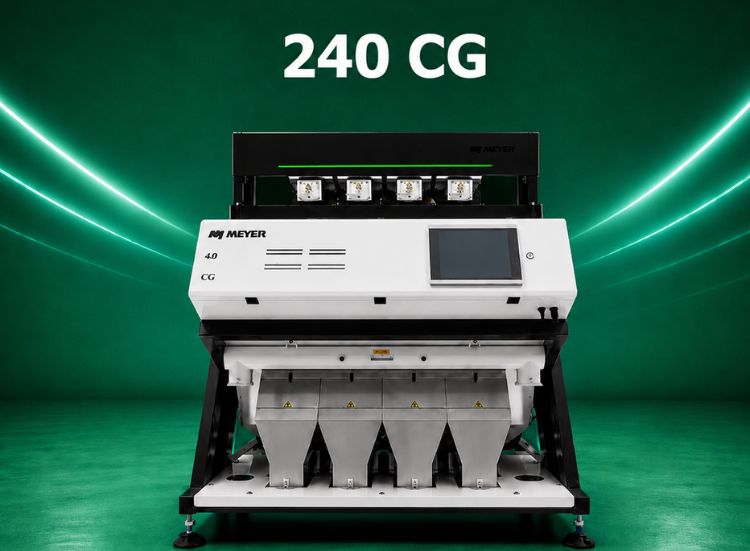

| 240CG.A (Chute 4) | 2.0 | 180～240 50Hz | 0.6～0.8 | <4.0 | 1891×1564×2020 | 1120 | |

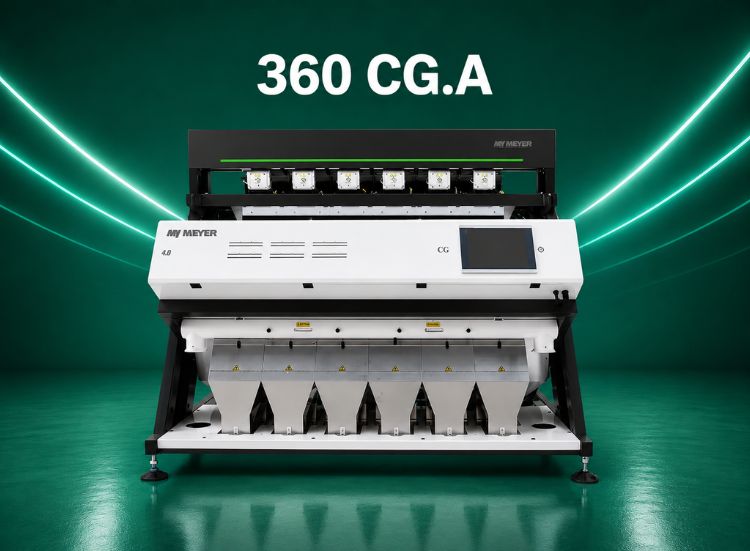

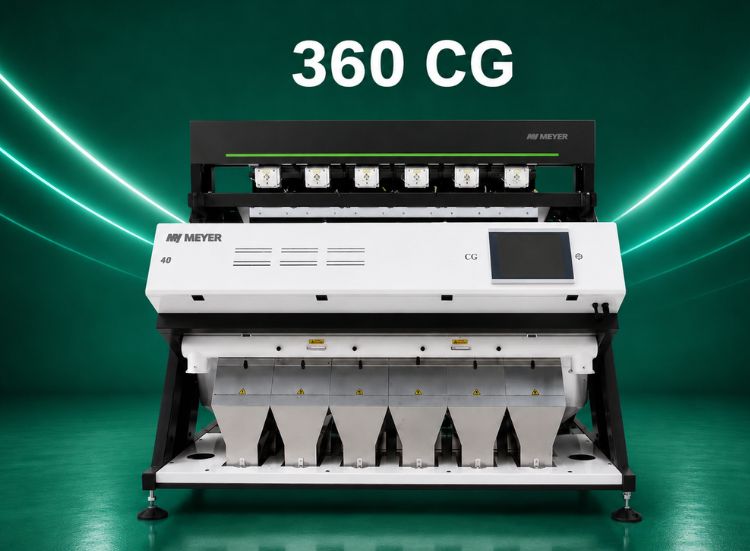

| 360CG.A (Chute 6) | 2.7 | 180～240 50Hz | 0.6～0.8 | <5.5 | 2533×1564×2020 | 1400 | |

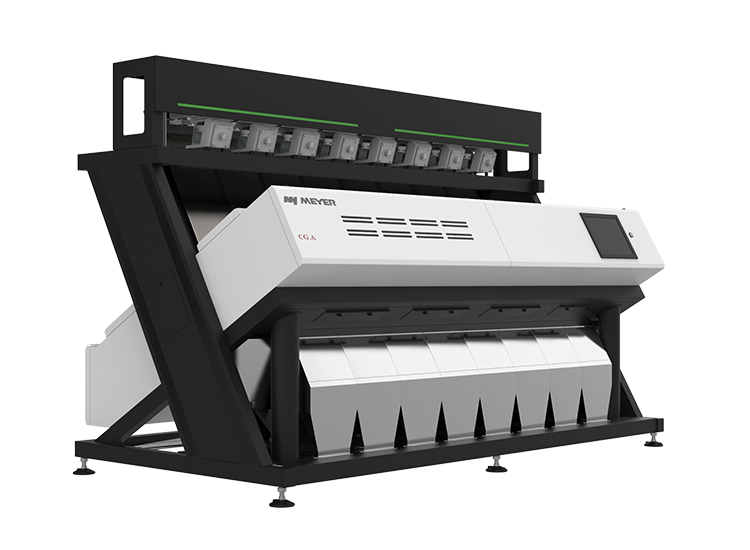

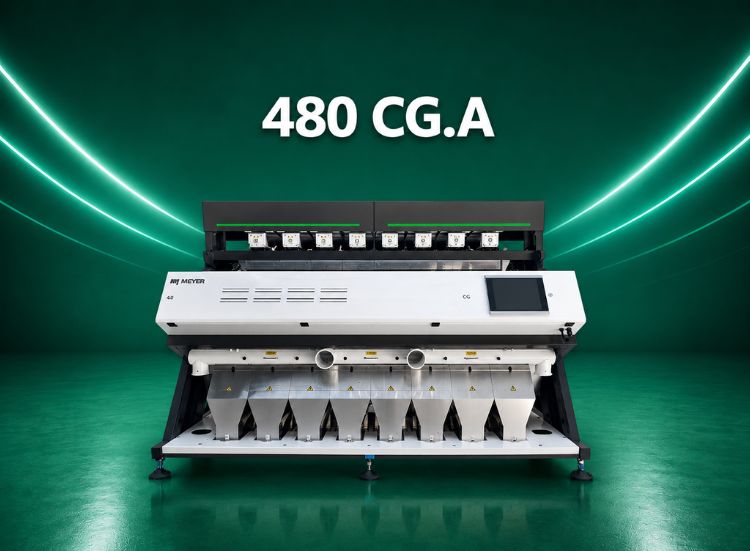

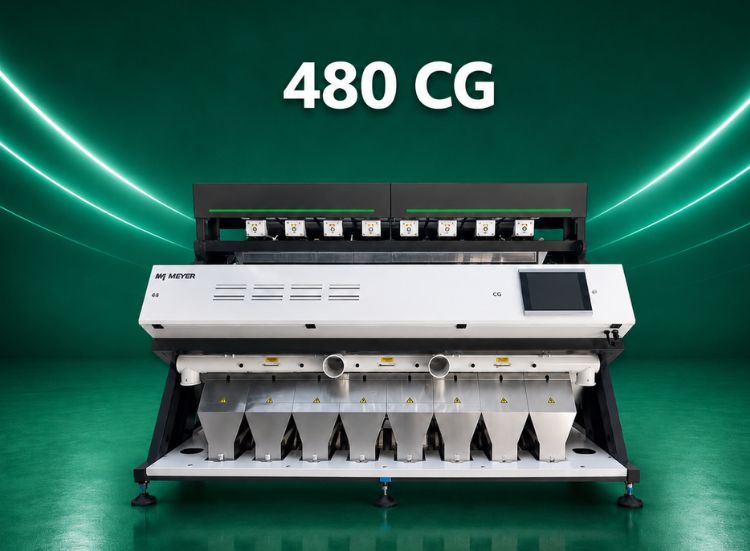

| 480CG.A (Chute 8) | 3.4 | 180～240 50Hz | 0.6～0.8 | <6.5 | 2991×1564×2020 | 1750 | |

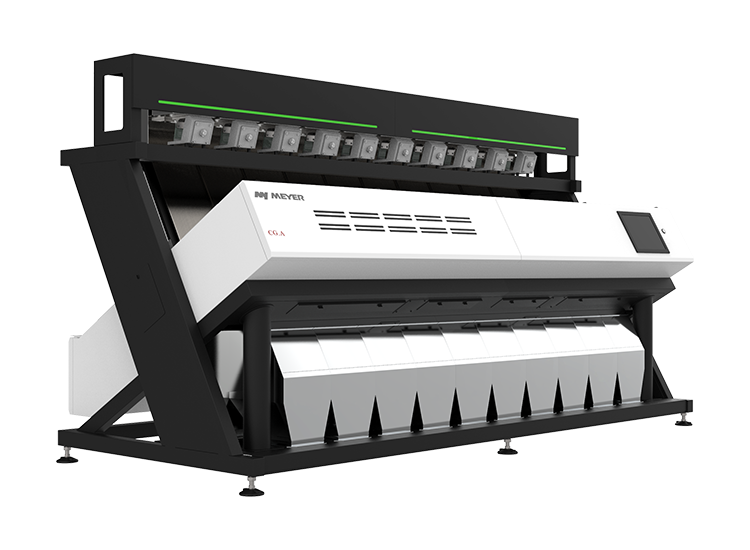

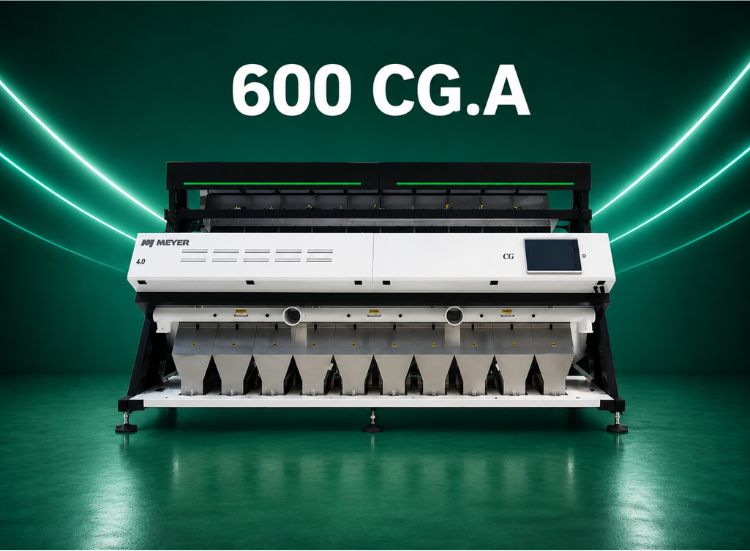

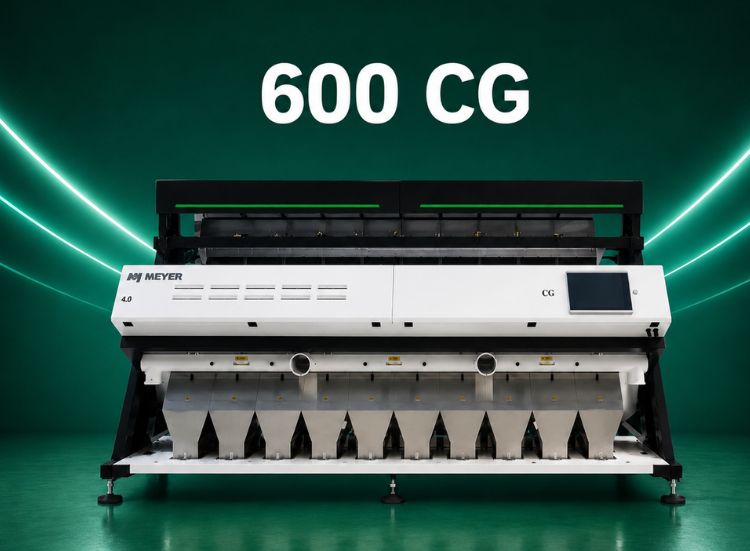

| 600CG.A (Chute 10) | 4.0 | 180～240 50Hz | 0.6～0.8 | <8.0 | 3583×1564×2020 | 2090 | |

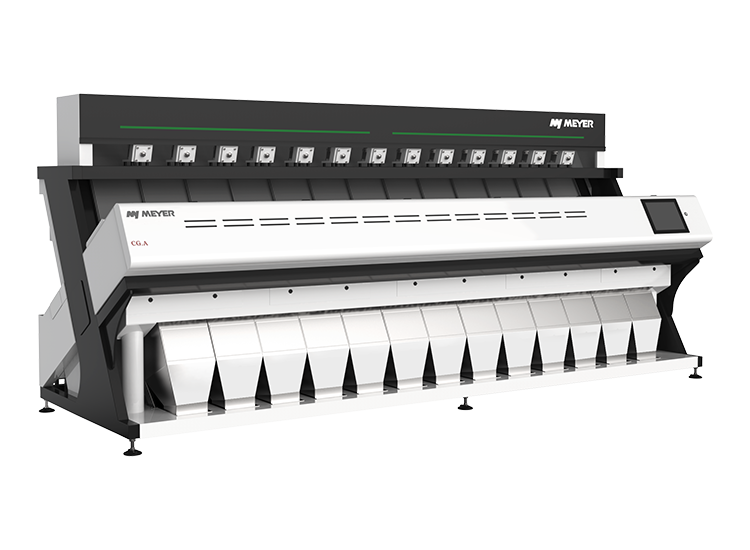

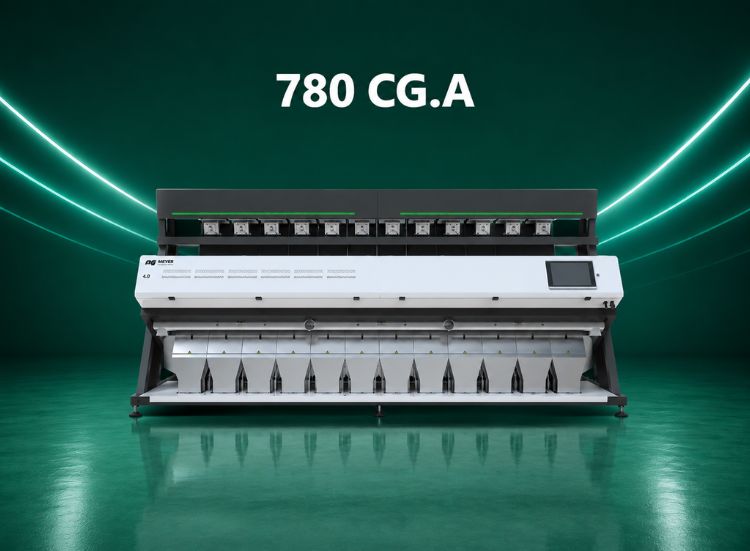

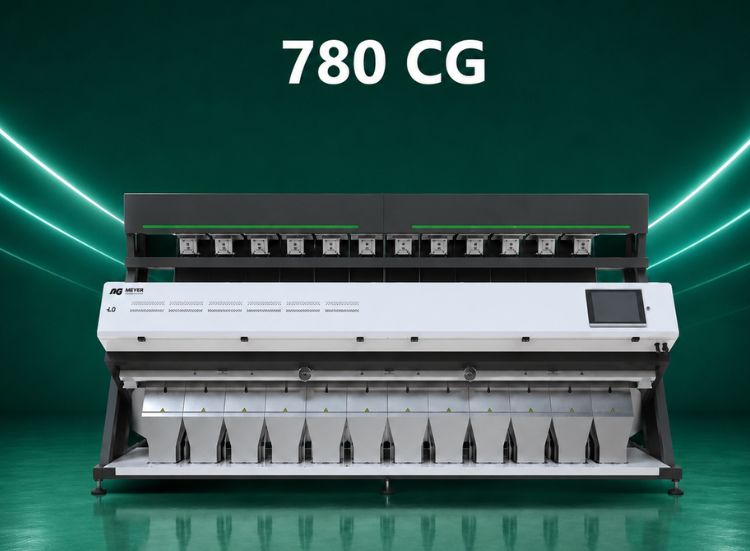

| 780CG.A (Chute 13) | 5.0 | 180～240 50Hz | 0.6～0.8 | <10.0 | 4445×1620×2020 | 2800 |
Features
▾
👁️🗨️ Innovative Vision Systems
🔦 Full Spectrum Lighting System
⏏️ Remote control and service support
⛓️💥 Sniper System
💻 Simplified Interface
Innovative Vision Systems
- MEYER machines are equipped with high-resolution cameras, enabling the identification of material characteristics based on multiple aspects such as color, shape, density, and type of material.
- The minimum recognition range can reach as small as 0.0004 mm².
- MEYER sorters feature a multispectral identification system, including visible light, infrared light, UV light, and X-RAY technology.
- By utilizing differences in material properties, the cameras in MEYER machines allow for the precise removal of defects and foreign objects.
Pre and After-Sales Service
▾
PRE-SALE
Consulting solution service
Configuration suggestion
Layout suggestion
HELP DESK
Remote troubleshooting
Remote machine adjusting
Fault de-escalation
ON-SITE
Routine inspection
Commissioning
Troubleshooting
SPARE PARTS
Spare parts supply
Warranty service
Key parts maintenance
TRAINING
Local training
HQ training
Standard warranty
🌟 Pre-Sale Service — NICPL
Consultation on selecting the optimal sorter for your product
Support integrating with your existing production lines
Material testing available — attend and observe live at Kundli
🔧 After-Sale Service — NICPL
On-site service with quick response times across India
Warranty including free inspections and maintenance
24×7 support — call +91 70115 54903 anytime
Frequently Asked Questions
▾
What is the MEYER CG.4.0 Series and how is it different from the CG.4.0 AI?
The CG.4.0 Series is the standard multi-usage color sorter built on AI Deep Learning and Multi-spectral Recognition Technology. Its key advantage over the CG.4.0 AI is the optional UV sorting system for aflatoxin detection — critical for peanut and grain exporters. The CG.4.0 AI features a High Computing UHD AI Chip for deeper pixel-level detection. Both models share the same 6-model range and physical specifications but differ in their detection technology focus.
What is the UV sorting option and why is it important for peanut processors?
The optional UV sorting system uses ultraviolet light to detect aflatoxin-infected particles — a naturally occurring mycotoxin that appears on peanuts, maize, and other crops under certain storage and moisture conditions. Aflatoxin is invisible under standard visible light but fluoresces under UV, making UV sorting the most reliable method for its detection and removal. This is essential for processors supplying EU, US, and Japanese markets where aflatoxin limits are extremely strict and non-compliance results in entire consignment rejection.
What is Multi-spectral Recognition Technology?
Multi-spectral Recognition Technology means the machine analyzes product across multiple light spectra simultaneously — visible light, infrared, UV, and optionally X-Ray. This multi-dimensional approach detects defects based on color, shape, texture, and material properties — providing far more accurate classification than single-spectrum standard sorters. It enables the CG.4.0 to sort a wide variety of commodities with different surface and structural properties reliably.
What products and commodities is the CG.4.0 Series suitable for?
The CG.4.0 is suitable for grains (rice, wheat, maize), legumes (chickpea, rajma, soybean, mung bean), nuts (peanuts, cashew), seeds, fruits, vegetables, herbs, and spices. The AI Deep Learning model database covers a very wide commodity range — making it the most versatile model in the CG series for processors handling diverse product streams.
What are the technical specifications of all six models?
Six models are available: 120CG.A (1.3 kW, <2.5 m³/min, 1299×1564×2020 mm, 750 kg), 240CG.A (2.0 kW, <4.0 m³/min, 1891×1564×2020 mm, 1,120 kg), 360CG.A (2.7 kW, <5.5 m³/min, 2533×1564×2020 mm, 1,400 kg), 480CG.A (3.4 kW, <6.5 m³/min, 2991×1564×2020 mm, 1,750 kg), 600CG.A (4.0 kW, <8.0 m³/min, 3583×1564×2020 mm, 2,090 kg), and 780CG.A (5.0 kW, <10.0 m³/min, 4445×1620×2020 mm, 2,800 kg). All operate at 180–240V / 50Hz and 0.6–0.8 MPa.

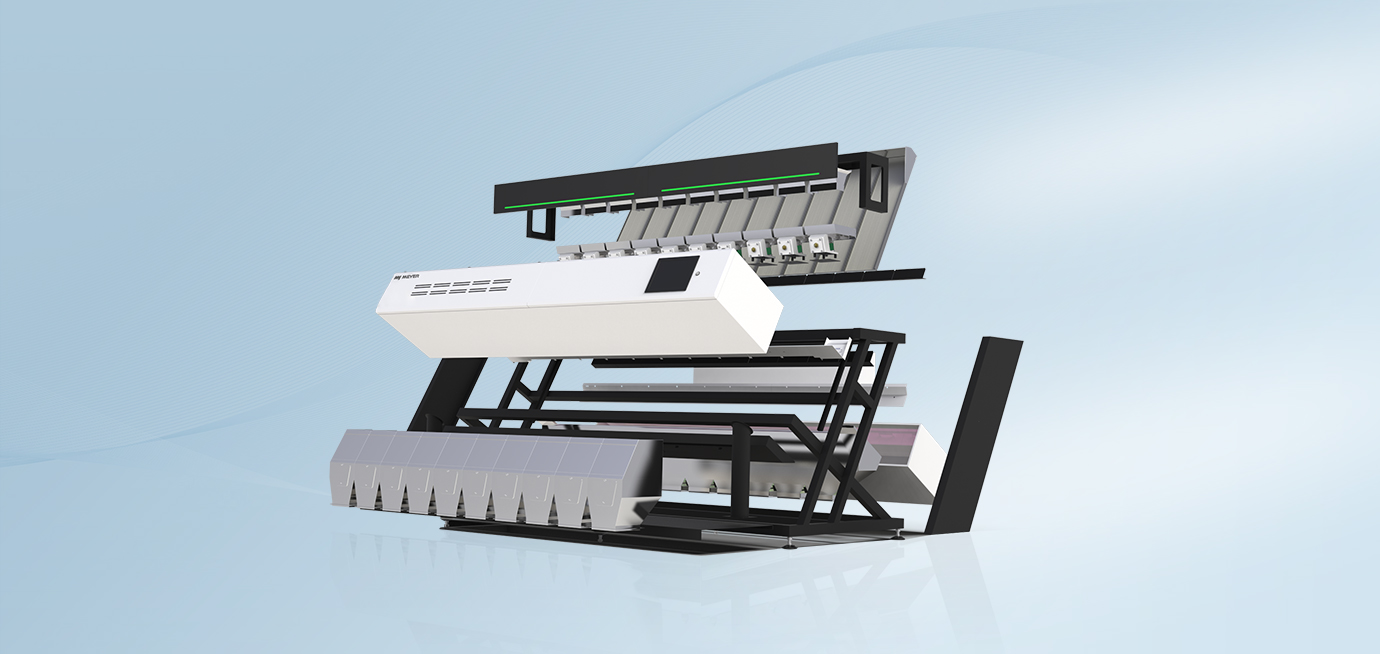

How does the modular standardized design reduce maintenance costs?
The CG.4.0's highly modular and standardized machine structure means all components are interchangeable and manufactured to consistent specifications. With 70% of parts produced automatically and intelligently, quality consistency is very high. When a component needs replacement, the standardized design means the right part is always available and installation is straightforward — reducing both maintenance time and the risk of extended downtime.
Can the CG.4.0 sort multiple commodities on the same machine?
Yes. The CG.4.0 Series is specifically designed as a multi-usage sorter. Its AI Deep Learning model database and multi-spectral detection capability cover a wide range of commodities. Operators can switch between product types with parameter adjustment, and the machine's flexible configuration options accommodate the different physical properties — size, color, shape, surface texture — of diverse commodities.
What support does NICPL provide for the CG.4.0 Series in India?
NICPL provides pre-sale consultation, production line integration support, and live material testing at the Trial Centre in Kundli, Sonipat. After-sale support includes on-site commissioning and routine inspection, warranty with free maintenance, remote troubleshooting and machine adjustment, spare parts supply, local and HQ operator training, and 24×7 support on +91 70115 54903. NICPL also provides KAESER compressor solutions for buyers who need to upgrade their air supply for the larger CG.4.0 models.
🚢 What Are the Pricing & Shipping Terms?
🚢 Ex-Works Nhava Sheva — All CG.4.0 prices are ex-works Nhava Sheva unless otherwise agreed
🚛 Freight & Transit Insurance — Freight and transit insurance charged extra at actual in customer scope
🇮🇳 GST & Applicable Taxes — GST and all applicable taxes charged extra at actual in customer scope
💳 40% Advance Payment — T/T 40% advance payment required at time of order confirmation
💳 30% Before Dispatch — 30% before dispatch against Bill of Lading with 100% GST payment
💳 30% Within 120 Days — Balance 30% within 120 days from invoice date with PDC required before dispatch
⏱️ What is the Delivery & Warranty Terms?
⏱️ 8 to 10 Weeks Delivery — CG.4.0 delivered within 8 to 10 weeks from advance payment with original PO
🛡️ 24 Month Warranty — Full 2 year warranty from date of commissioning at customer site
📅 27 Month Alternative — Or 27 months from invoice date whichever ends earlier
⚠️ Consumables Excluded — Wiper rubber filter cartage and fuse excluded from warranty coverage
🔧 Manufacturing Defects — Warranty covers all manufacturing defects in machine components
📞 Warranty Claims — Contact NICPL immediately on 70115 54903 for any warranty issues
🎓 What Installation & Training Support Does NICPL Provide?
🎓 Up to 8 Local Visits — Up to 8 FOC visits for local customers for installation commissioning and training
✈️ Up to 4 Out of Station — Up to 4 FOC visits for out of station customers installation and training
🍽️ Customer Bears Expenses — Customer bears engineer travel lodging and boarding during all visits
💰 Beyond FOC Limit — Additional visits beyond FOC limit charged at INR 5000 plus GST per visit
🧪 Trial Centre Kundli — Live material testing available before purchase at NICPL Trial Centre Kundli Sonipat
📞 24x7 Remote Support — NICPL 24x7 support available on phone and WhatsApp after installation
