Knock Knock: 7 Packing Machine Models That Will Change the Way You Think About Packaging
Table of Contents
- 1. 7 Packing Machine Models That Can Transform Your Packaging Line
- 1. DCS-25K-H10 - High-speed weighing and packing
- 2. DCS-5S-3A — Small Packs, Big Accuracy
- 3. DCS-100-A3 — The Reliable Workhorse for Everyday Bagging
- 4. DCS-25K-L3 — Built for Businesses Handling Pulses, Flour & More
- 5. ZDB-600-Q9 — When You Want the Operator to Do Less
- 6. LZB-600-R10 — The Vacuum Packing Upgrade Your Product May Need
- 7. LCS-150T — When Your Packaging Line Needs a Smarter Approach
- 2. Before Buy: Every Packaging Business Should Ask These Questions
- 3. Summing Up!
7 Packing Machine Models That Can Transform Your Packaging Line

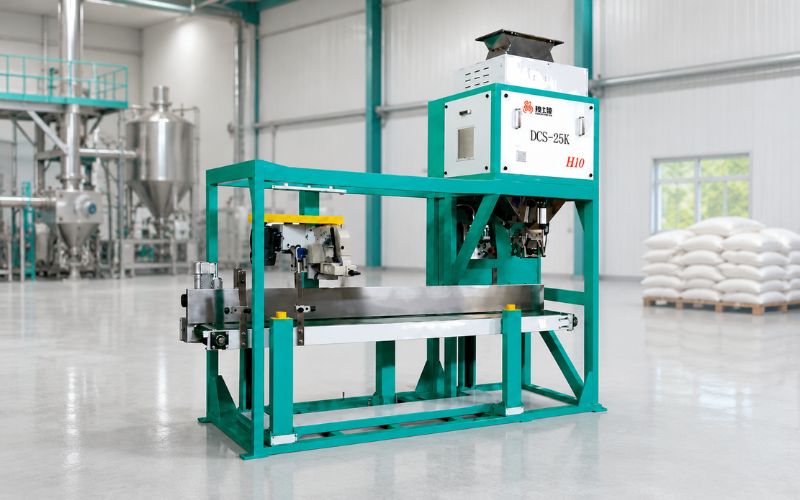

1. DCS-25K-H10 - High-speed weighing and packing
| Specification | Details |
|---|---|
| Model | DCS-25K-H10 |
| Packing range (kg) | 5~25 kg |
| Packing speed (bag / h) | 900~1400 |
| Index value (g) | 2 |
| Level of Accuracy | X(0.5) |
| Power supply, power consumption | 4N-AC 380V 50Hz 1.1KW |
| Products | Rice, Grain, Soybean, Peanut, Wheat, Feed, Millet, Corn, Seeds Lentil, Coffee Pod, Cashew Nuts, Salt, Tea, Flour, Fertilizer, Powder Wood Pellet, Barley, Oats, Maize, Rye, Safflower, Sunflower, Rapeseed, Linseed, Sorghum, Lupins, etc. |
| Dimensions (L × W × H mm) | 2800×1050×3200（high with small silo） |
View The Machine: DCS-25K-H10

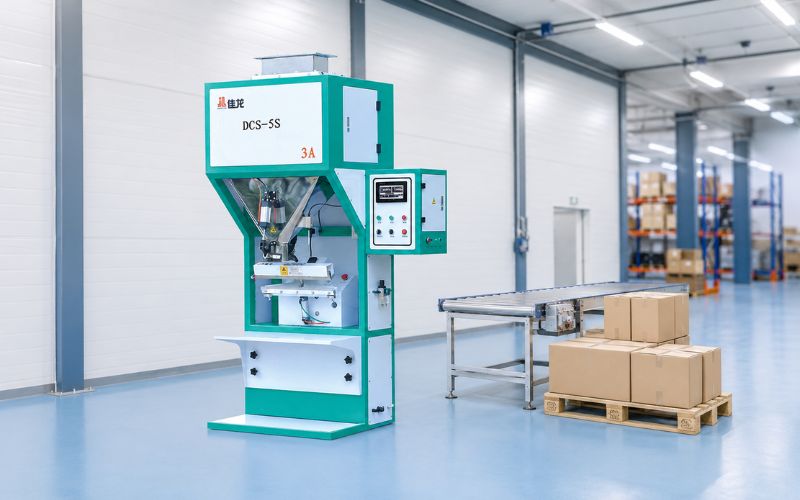

2. DCS-5S-3A — Small Packs, Big Accuracy
Smaller packs may look easy to handle, but when you have hundreds of bags to prepare every hour, things can get messy. Repeated weighing, filling, and sealing can slow your team down and make the whole process more dependent on manual work. The DCS-5S-3A is designed for businesses dealing with these smaller pack sizes. It can handle 0.5 to 10 kg bags, with a capacity of 500 to 900 bags per hour for 0.5 to 5 kg packs and 300 to 400 bags per hour for 5 to 10 kg packs. It can be used for rice, beans, seeds, sugar, oats, barley, buckwheat, coarse cereals, and other granular products. The useful part is that weighing and packing are handled together, while the heat sealing system helps finish the bag properly after filling. Features such as automatic error correction, over and under-weight alarms, and fault diagnosis also make day-to-day operation easier.
Key Specification
| Specification | Details |
|---|---|
| Model | DCS-5S-3A |
| Weighing Extent(kg) | 0.5~10(based on rice) |
| Operation Speed (bags/h) | 0.5-5：500-900；5-10kg：300-400 |
| Accuracy Grade | X（0.5） |
| Power, Power Consumption | 4N-AC 380V 50Hz 0.8KW |
| Air, air expenditure | 0.4-0.6MPa 1m3/h |
| Outside height (mm) | 0.4-0.6MPa 1m3/h |
| Product | rice, buckwheat, oats, barley, coarse cereals, etc |
View The Machine: DCS-5S-3A

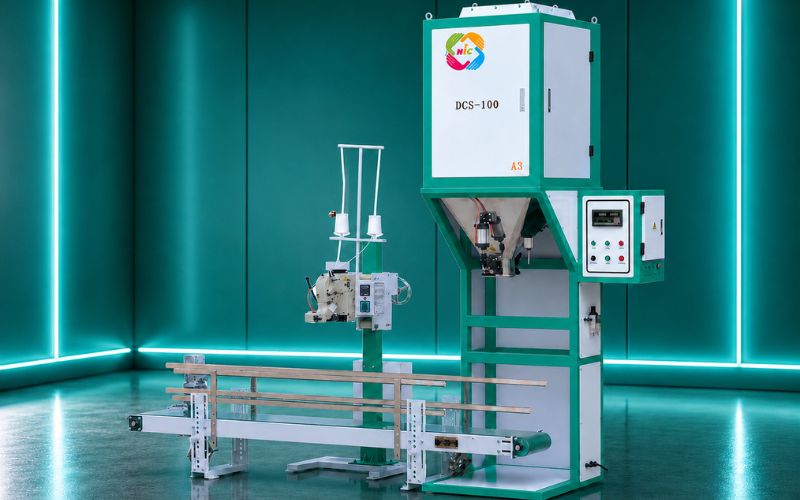

3. DCS-100-A3 — The Reliable Workhorse for Everyday Bagging
What happens after the product is weighed? Usually, someone still needs to handle the bag, sew it, cut the thread, and get it ready for the next stage. When you're dealing with hundreds of bags, these small steps quickly add up. The DCS-100-A3 takes a more complete approach. Along with weighing and filling, it can also handle bag sewing and thread cutting, helping turn a filled bag into a finished pack without relying on several separate manual steps. It works with 5 to 25 kg bags and can handle around 300 to 500 bags per hour. The machine is suitable for products such as black pepper, white pepper, Sichuan pepper, rice, corn, sugar, pulses, seeds, and other granular materials. For businesses where the final bag-closing stage is slowing things down, this can be a useful way to make the packing process more organised and reduce repetitive work.
Key Specification
| Specification | Details |
|---|---|
| Model | DCS-100-A3 |
| Weighing Extent(kg) | 5~25KG |
| Operation Speed (bags/h) | 300-500 |
| Scale interval (g) | 10 |
| Accuracy Grade | X(0.1) |
| Power, Power Consumption | 4N-AC 380V 50Hz ( can be customized) 1KW |
| Air, air expenditure | 0.4~0.6MPa 1m3/h |
| Outside height (mm) | 2800 |
| Product | Black pepper, white pepper, Sichuan pepper, rice, corn, sugar, pulses, seeds and more |
View The Machine: DCS-5S-3A

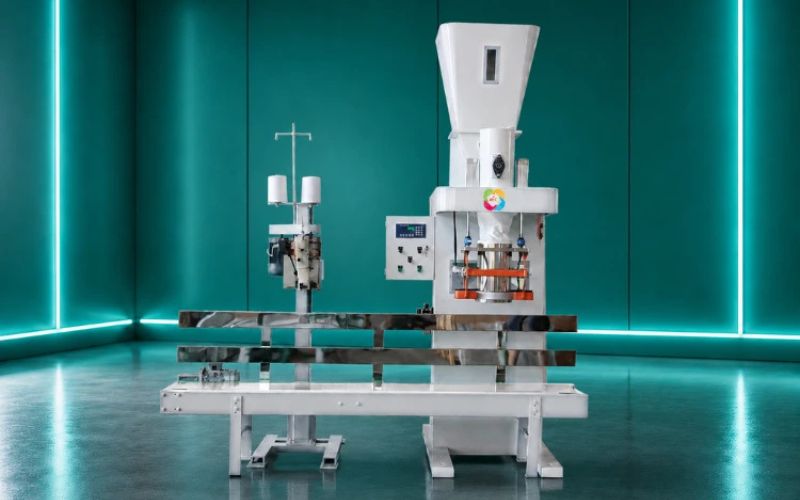

4. DCS-25K-L3 — Built for Businesses Handling Pulses, Flour & More
Ever tried packing flour at scale? Then you already know it is not as straightforward as it looks. Keeping the flow steady, getting the right quantity into every bag, and then closing those bags properly can become a constant balancing act. That is where the DCS-25K-L3 comes in. Built around an auger feeding system, it is designed to handle powder products such as wheat flour in 10 to 25 kg bags, with an output of around 250 to 280 bags per hour. What makes it practical is the way the machine handles the complete packing cycle. From weighing and filling to bag sewing, thread cutting, and conveying, the steps are brought together instead of leaving your operators to handle each one separately. You can also keep different package-weight settings stored in the machine, which makes switching between pack sizes easier.
Key Specification
| Specification | Details |
|---|---|
| Model | DCS-25K-L3 |
| Range | 10-25 |
| Operation Speed | 250-280 |
| Feeding Method | Auger |
| Accuracy Grade | 0.2%FS |
| Air Pressure | 0.4~0.6MPa |
| Power Supply | AC380V 50HZ |
| Product | Wheat flour and other powder products |

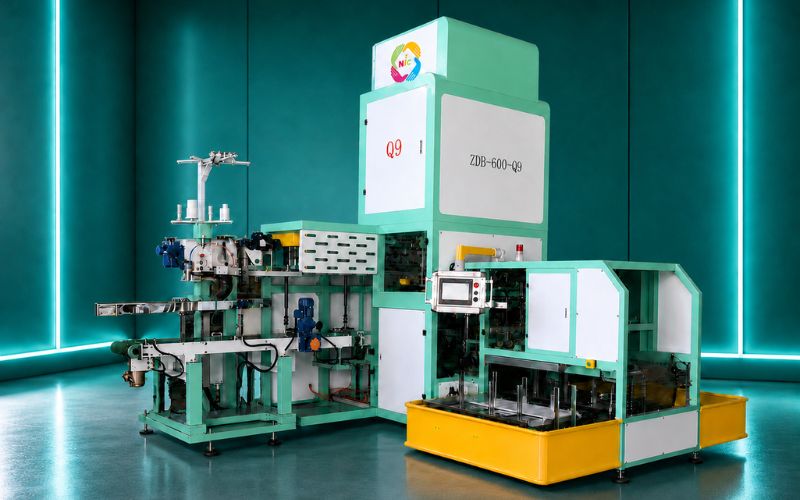

5. ZDB-600-Q9 — When You Want the Operator to Do Less
Sometimes the problem is not the weighing itself. It is everything around it. Someone has to pick up the empty bag, open it, hold it during filling, stitch it, and then move the finished bag forward. When all of this is happening manually, even a fast production line can end up waiting. The ZDB-600-Q9 is designed as a complete automatic bagging and packing solution for 25 to 50 kg open-mouth bags. It can handle around 500 to 600 bags per hour and is suitable for products such as rice, grains, corn, seeds, beans, lentils, sugar, animal feed, and other granular materials. What makes this system different is that it brings several jobs into one continuous process. Bag giving, bag opening, weighing, filling, bag closing, stitching, and conveying are handled as part of the same packing line. It can also work with both PP woven and paper bags, giving businesses more flexibility when packaging requirements change. For high-volume operations, that means less manual bag handling and a more organised flow from an empty bag to a finished pack.
Key Specification
| Specification | Details |
|---|---|
| Model | ZDB-600-Q9 |
| Packing speed | 500-600 bags/hour |
| Bag range | Length:730-1100; width 330-650 mm |
| Package weight | 25-50kg |
| Applicable materials | Granular materials such as rice |
| Air pressure/consumption | 0.5-0.6MPa 26m³/h |
| Power | 380/220V 3phase,five wires |
| Power Consumption | 9KW |
| Bag storage | 100-300 pcs |
| Product | Rice, Grain, Soybean, Peanut, Wheat, Feed, Millet, Corn, Seeds Lentil, Coffee Pod, Cashew Nuts, Salt, Tea, Flour, Fertilizer, Barley, Oats, Maize, Rye, Sunflower, Rapeseed, Linseed, Sorghum, etc. |

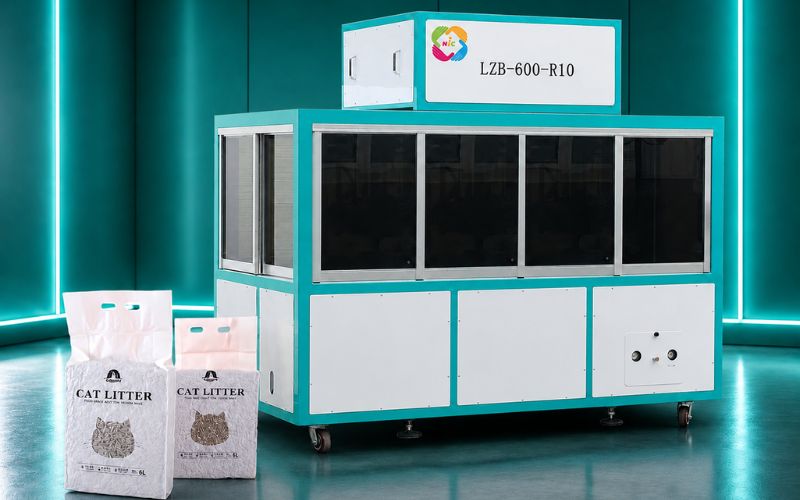

6. LZB-600-R10 — The Vacuum Packing Upgrade Your Product May Need
Ever noticed how small packs can take up surprisingly much time? A 1 kg or 2 kg bag may look simple, but when hundreds of them have to be weighed, filled, packed, and finished every hour, those little steps quickly add up. The LZB-600-R10 is made for businesses working with 0.5 to 5 kg packs. With a packing speed of around 540 to 600 bags per hour, it can handle products such as rice, wheat, grains, pulses, seeds, peanuts, coffee, salt, tea, flour, and other similar materials. The machine brings the main packing jobs into one setup, including automatic bag giving, weighing, filling, vacuum packing, stitching, and conveying. That means your operators spend less time repeatedly handling individual bags and more time keeping the production line running. For retail and smaller pack sizes where presentation, consistency, and output all matter, this is the kind of setup that can make everyday packing feel much less complicated.
Key Specification
| Specification | Details |
|---|---|
| Model | LZB-600-R10 |
| Packing speed | 540-600 bags/hour |
| Package weight | 0.5-5kg |
| Precession grade | X(0.5) |
| Applicable materials | Granular materials such as rice |
| Air pressure | 0.5-0.6MPa 14m³/h |
| Power | 380/220V 6KW |
| Bag storage | 100-300 |
| Dimensions (L × W × H mm) | 3650x2000x2700mm |
| Product | Rice, Grain, Soybean, Peanut, Wheat, Feed, Millet, Corn, Seeds Lentil, Coffee Pod, Cashew Nuts, Salt, Tea, Flour, Fertilizer, Barley, Oats, Maize, Rye, Sunflower, Rapeseed, Linseed, Sorghum, etc. |

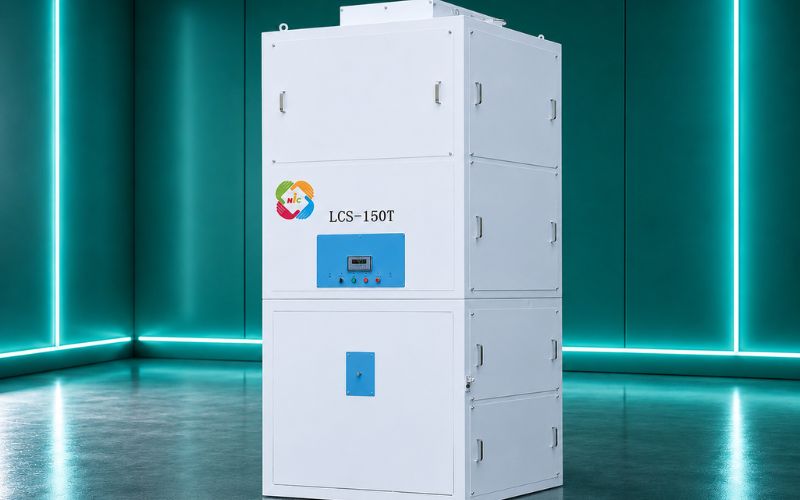

7. LCS-150T — When Your Packaging Line Needs a Smarter Approach
Not every packaging challenge starts with a bag. In large grain processing plants, the bigger question can be much simpler: how much product is actually moving through the line? When tonnes of grain are flowing continuously, relying on manual measurement is hardly practical. The LCS-150T Flow Weigher is designed for high-volume grain handling, with a capacity of up to 150 tonnes per hour and an accuracy grade of X(0.2). It can be used in grain processing plants, grain depots, ports, chemical industries, and other operations where continuous product flow needs to be measured. Its fully sealed design helps keep dust away from the main weighing and control components, while the wear-resistant stainless-steel feeding and measuring mechanism is built for continuous operation. The system also supports RS232/485 communication, and an optional printer can record production output and other information. So, if your operation is handling grain at a scale where counting bags is no longer enough, the LCS-150T gives you a way to monitor the flow with much greater control.
Key Specification
| Specification | Details |
|---|---|
| Model | LCS-150T |
| Capacity(T/h) | 150 tonnes/hour |
| Accuracy Grade | X(0.2) |
| Power Supply | AC 220V, 50Hz |
| Power Consumption | 70 W |
| Air Requirement | 0.4~0.6MPa, 1 m³/h |
| Outside Height | 3500 mm |
| Product | Grain processing, grain depots, ports, chemical industries and more |
Before Buy: Every Packaging Business Should Ask These Questions
- Product Type: What are you packing every day? Rice, pulses, seeds, flour, spices, and other products can behave differently during filling. Choosing a machine designed for your product can save you from unnecessary adjustments later.
- Pack Size: Decide which bag sizes you really need. If your business handles multiple sizes, check whether one machine can manage them easily instead of investing in separate equipment for every pack.
- Production Volume: How many bags do you need to pack in a day? Your machine should comfortably match your regular production as well as those busy days when orders suddenly increase.
- Weighing Accuracy: A few extra grams in one bag may not seem like much, but multiply that across thousands of bags and the wastage becomes noticeable. Make sure the machine can maintain the weight you actually need.
- Bag Material: Don't forget the bag itself. PP woven, paper, and other bag materials can require different handling, filling, and closing arrangements. It is better to confirm compatibility before the machine reaches your factory.
- Available Space: Measure your packing area before choosing the machine. Remember to leave enough room for operators, bag movement, conveyors, maintenance, and future changes to your production line.
- Service & Support: Machines need attention from time to time, so ask what happens after installation. Easy access to spare parts, technical support, maintenance, and operator training can save you from a lot of unnecessary downtime later.
