MEYER KM DI UHD AI Cashew Kernel & Shell Separating Machine
🔍 Click to zoom
Main View

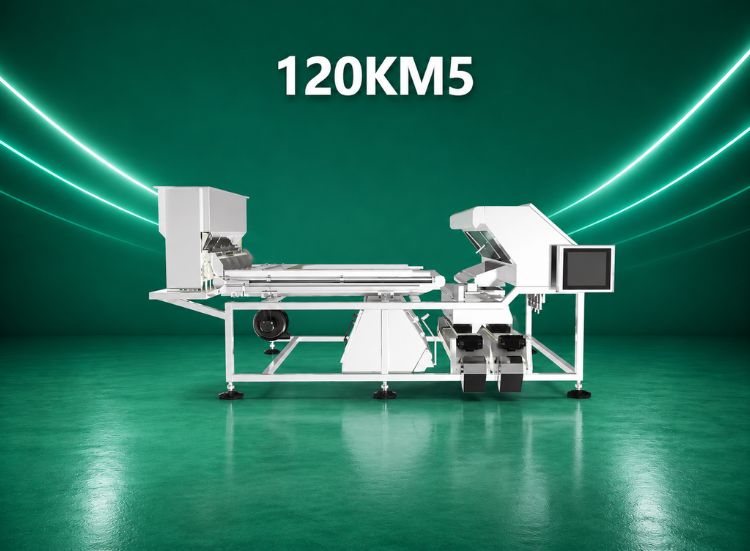

120KM5

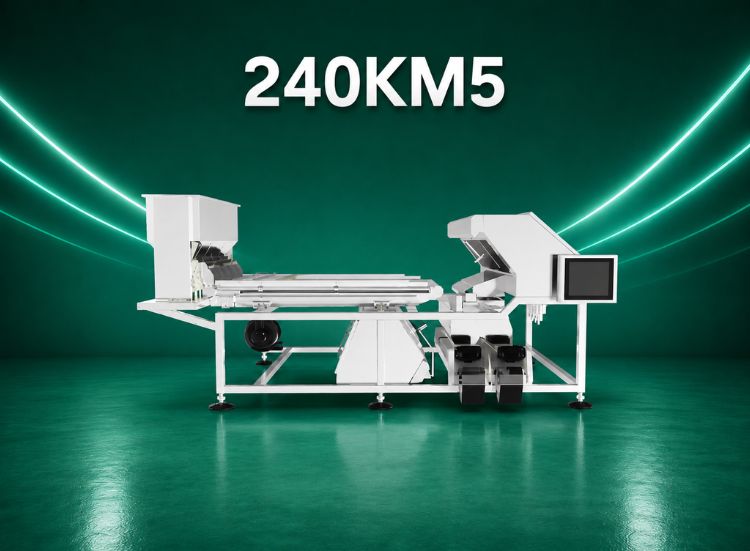

240KM5
Best Seller Belt Sorter

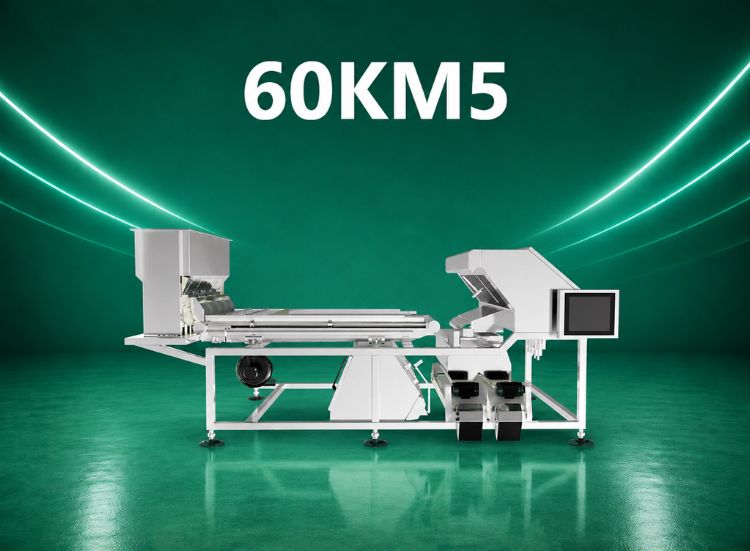

MEYER KM DI UHD AI Cashew Kernel & Shell Separating Machine

The MEYER KM DI UHD AI Cashew Kernel & Shell Separating Machine is specially designed for precise separation of cashew kernels and shells, making it ideal for cashew processing units. Powered by UHD AI Deep Learning technology and an advanced UHD2.0 imaging system, the machine accurately identifies and removes shell pieces, discolored kernels, damaged kernels, moldy particles, and other unwanted impurities such as glass, plastic, and sand. Its belt-type sorting design handles fragile and irregular cashew kernels gently, helping to reduce breakage and product loss. With intelligent anti-crushing technology, anti-oil protection, and waterproof design, the machine ensures stable performance, easy cleaning, and low maintenance. It helps improve sorting accuracy, final product quality, and overall production efficiency.

Get Quote WhatsApp +91 70115 54903
Description
▾

The MEYER KM DI UHD AI Cashew Kernel & Shell Separating Machine is specially designed for precise separation of cashew kernels and shells, making it ideal for cashew processing units. Powered by UHD AI Deep Learning technology and an advanced UHD2.0 imaging system, the machine accurately identifies and removes shell pieces, discolored kernels, damaged kernels, moldy particles, and other unwanted impurities such as glass, plastic, and sand. Its belt-type sorting design handles fragile and irregular cashew kernels gently, helping to reduce breakage and product loss. With intelligent anti-crushing technology, anti-oil protection, and waterproof design, the machine ensures stable performance, easy cleaning, and low maintenance. It helps improve sorting accuracy, final product quality, and overall production efficiency.

What materials is it suitable for?
▾
♻️ HDPE
♻️ PVC
→
INPUT
Input
✓
ACCEPT
Accept
✕
REJECT
Reject
Technical Specifications
▾
Name Model Power (kW) Voltage (V) Air Pressure (MPa) Air Consumption (m³/min) Dimensions (mm) Weight (kg)
KM Cashew Kernel 6SXZ-60KM5 3.1 180～240 50Hz 0.6～0.8 1.5 4370*1425*1750 750
6SXZ-120KM5 2.1 180～240 50Hz 0.6～0.8 2.0 3600*1710*2000 850
6SXZ-240KM5 4.7 180～240 50Hz 0.6～0.8 3.0 4750*2310*1750 1050
Features
▾
🍳 AI Powered System
📸 Ultra high-speed HD Imaging System
⏏️ Maglev Ejectors®
👁️‍🗨️ Innovative Vision Systems
💡 Full Spectrum Lighting System
🎮 Remote control and service support
🔫 Sniper System
💻 Simplified Interface
AI Powered System
AI Powered System
  • MEYER thoroughly researches AI technology to provide the best sorting solutions.
  • Our devices are equipped with deep learning AI systems, based on the analysis and integration of data features such as color and shape.
  • By comparing materials with an extensive library of models, Meyer ensures precise classification even of the smallest defects at the level od 1-2 pixels.
Pre and After-Sales Service
▾
🌟
PRE-SALE
Consulting solution service
Configuration suggestion
Layout suggestion
🛠️
HELP DESK
Remote troubleshooting
Remote machine adjusting
Fault de-escalation
🔧
ON-SITE
Routine inspection
Commissioning
Troubleshooting
📦
SPARE PARTS
Spare parts supply
Warranty service
Key parts maintenance
🎓
TRAINING
Local training
HQ training
Standard warranty
🌟 Pre-Sale Service — NICPL
Consultation on selecting the optimal sorter for your product
Support integrating with your existing production lines
Material testing available — attend and observe live at Kundli
🔧 After-Sale Service — NICPL
On-site service with quick response times across India
Warranty including free inspections and maintenance
24×7 support — call +91 70115 54903 anytime
Frequently Asked Questions
▾
What food products is the MEYER KM Series designed to sort? +
The KM Series is specifically designed for fragile, oily, and large-size food products. It is ideal for coffee beans, peanut kernels, walnuts, pine nuts, and soya bean pods — products that require both precision sorting and gentle handling to maintain their integrity and commercial value during processing.
How does the anti-crushing system protect fragile products? +
The KM Series features an intelligent anti-crushing system that monitors and controls the handling of each product throughout the sorting process. The belt-type conveying mechanism provides a smooth, stable transfer path, preventing the high-impact collisions that occur in chute-type sorters. This significantly reduces breakage of fragile kernels like walnuts and pine nuts, protecting product value and reducing waste.
Why is the anti-oil and waterproof design important for this sorter? +
Many products sorted by the KM Series — such as peanuts, walnuts, and pine nuts — are high in natural oils. Over time, oil residue can damage machine components, reduce performance, and create hygiene issues. The KM Series anti-oil and waterproof design protects all internal components, ensures stable long-term performance, and makes the machine easy to wash and maintain — reducing downtime and maintenance costs.
What defects and impurities can the KM Series detect and remove? +
The KM Series removes discolored particles, physically damaged kernels, moldy pieces, insect-damaged products, and foreign materials including glass fragments, plastic pieces, and sand. The UHD2.0 AI Deep Learning system analyzes both color and shape, detecting even 1–2 pixel-level defects with high accuracy across all product types.
What models are available in the KM Series and what are their specifications? +
The KM Series offers three models: 60KM5 (code 6SXZ-60KM5, power 3.1 kW, air consumption 1.5 m³/min, dimensions 4370×1425×1750 mm, weight 750 kg), 120KM5 (code 6SXZ-120KM5, power 2.1 kW, air consumption 2.0 m³/min, dimensions 3600×1710×2000 mm, weight 850 kg), and 240KM5 (code 6SXZ-240KM5, power 4.7 kW, air consumption 3.0 m³/min, dimensions 4750×2310×1750 mm, weight 1,050 kg). All operate at 180–240V / 50Hz and 0.6–0.8 MPa air pressure.
How does the UHD2.0 imaging system improve sorting accuracy for oily products? +
Oily products present a unique challenge for sorters because their glossy surfaces can cause light reflection that confuses standard cameras. The UHD2.0 imaging system uses industrial-grade CCD sensors and full-spectrum RGB lighting that mimics natural daylight, allowing the system to accurately read the true color and surface condition of oily products — detecting defects that standard sorters would miss due to surface glare.
Can the KM Series also sort polymer materials like HDPE and PVC? +
Yes. In addition to food processing, the KM Series is suitable for sorting HDPE and PVC polymer materials. Its multispectral vision system and AI Deep Learning can differentiate polymer types and colors, making it a versatile option for facilities that handle both food and recycling operations.
What support does NICPL offer before and after purchasing the KM Series? +
NICPL provides full pre-sale support including machine selection consultation, production line integration assistance, layout design, and material testing at the NICPL https://nicplmeyer.com/support/trial-centre/ Test Center. After-sale support includes on-site commissioning and inspections, remote troubleshooting and real-time monitoring via PC or mobile, warranty with free maintenance, spare parts supply, operator training, and long-term service level agreements.
Customer Reviews (5)
▾
4.4
★★★★★
5 Reviews
5★
4★
3★
2★
1★
Chandrika Pillai
Pillai Cashew & Nut Exports Kerala
✓ Verified Buyer
★★★☆☆
The sorting quality for oily nuts is good overall and the anti-oil design does make maintenance easier. However, we found the AI calibration for our specific cashew variety took several weeks to reach optimal accuracy. The machine footprint is also quite large for our facility. Support team was helpful but follow-up could be faster. Decent machine once fully set up, but plan for a longer calibration period.
19 May 2026
Manjeet Singh Brar
Brar Groundnut Industries Ludhiana
✓ Verified Buyer
★★★★☆
Good machine for peanut kernel sorting. The UHD imaging catches shriveled, discolored, and aflatoxin-risk kernels that our previous sorter used to miss. The belt system is gentle and our breakage has reduced noticeably. We give 4 stars because the 60KM5 model specifications listed on the website show higher power than the 120KM5, which was initially confusing during our purchase decision. Performance-wise, no complaints.
28 Apr 2026
Pradeep Nayak
Nayak Agro Foods Karnataka
✓ Verified Buyer
★★★★★
We sort pine nuts and soya bean pods, both of which are very oily and fragile. The KM Series was recommended specifically for this type of product and it has not disappointed. The waterproof and anti-oil design means cleaning is quick and easy after each shift. The Maglev Ejector is very fast and rejects bad pieces without wasting good product. Highly recommend.
24 Mar 2026
