MEYER KS Thinker AI Belt Color Sorter

The KS Thinker is a double-layer multi-usage UHD AI belt color sorter. Its key advantage is the double-layer re-sorting structure material passes through two complete sorting stages within the same machine. The second layer re-inspects the first-layer output, catching any remaining defects and dramatically improving final product purity compared to single-layer sorters without requiring a second separate machine.

The KS Thinker handles a wide range including grains (wheat, rice, mustard, millet), pulses (chana, masoor, toor), nuts, fruits, vegetables, and polymer recycling materials including PET, HDPE, and PVC. Its multi-usage design allows one machine to handle diverse product streams across food, agriculture, and recycling applications.

It removes discolored particles, physically damaged pieces, moldy grains, insect-damaged products, and foreign materials including glass fragments, plastic pieces, and sand. The UHD AI Deep Learning system analyzes color and shape simultaneously to detect even 1–2 pixel-level defects with high accuracy across all product types.

UHD imaging captures surface detail that standard cameras cannot resolve — subtle discoloration, early-stage mold, micro-damage, and foreign material fragments that appear identical to good product under standard cameras. The KS Thinker's UHD system scans at 50,000 frames per second, identifying objects as small as 0.0025 mm² for consistent high-accuracy sorting even at high throughput speeds.

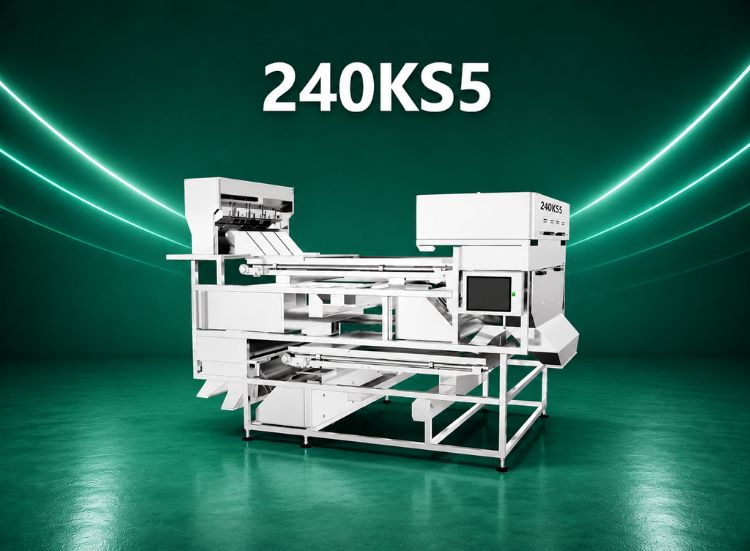

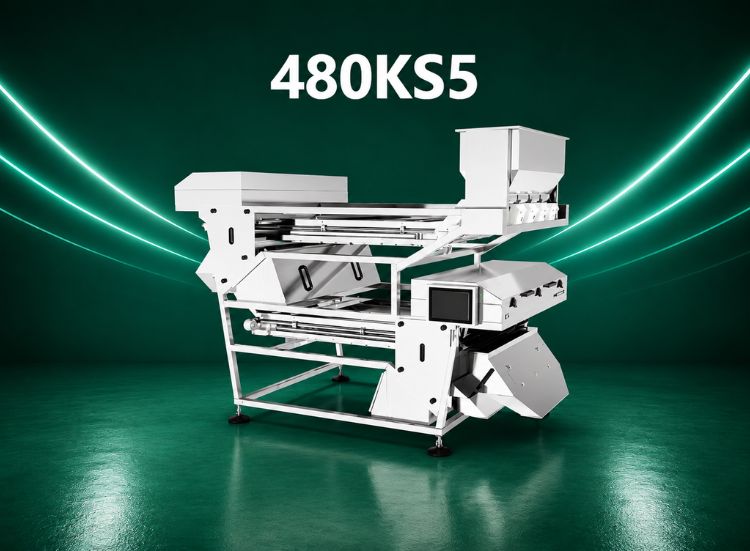

Two models are available: 240KS5 (6SXZ-240KS5, 7.8 kW, 6.0 m³/min air, 3560×2200×2615 mm, 1,650 kg) and 480KS5 (6SXZ-480KS5, 12.6 kW, 9.0 m³/min air, 3560×2800×2615 mm, 2,250 kg). Both operate at 180–240V / 50Hz and 0.6–0.8 MPa air pressure.

he Maglev Ejector 3.0 is a patented MEYER magnetic levitation ejection system operating at over 1,200 Hz. Its millisecond-level flap control precisely rejects defective pieces while minimising accidental ejection of good product surrounding the defect. The non-contact design also extends service life and reduces maintenance requirements compared to conventional ejectors.

Yes. The KS Thinker is fully suitable for PET (sorted by color — transparent, green, blue), HDPE, and PVC sorting. Its multispectral AI vision differentiates polymer types and colors, making it suitable for food processors and recycling facilities using the same machine platform.

NICPL provides pre-sale consultation, production line integration support, layout design, and live material testing at the Trial Centre in Kundli, Sonipat. After-sale services include on-site commissioning, warranty with free inspections and maintenance, remote troubleshooting and diagnostics, spare parts supply, operator training, and 24×7 support on +91 70115 54903.

🤖 Double Layer Multi-Usage Sorter — Advanced belt color sorter with double layer re-sorting for maximum purity 🌾 Wide Product Range — Handles grains pulses nuts fruits vegetables and large irregular agricultural products 🔭 UHD AI Deep Learning — Detects defects at 1 to 2 pixel level for precise color and shape classification 🛬 Gentle Belt Handling — Belt type conveying protects fragile watery and irregular products from damage 🔲 Double Layer Accuracy — Two sorting stages in one machine significantly improves final sorting purity 🏗️ Modular Reliable Design — Highly modular structure ensures reliable long-term stable performance

🌾 Grains & Cereals — Rice wheat maize barley oats rye sorghum millet and various grain varieties 🫘 Pulses & Legumes — Chickpea rajma lentils moong urad toor dal and various pulse varieties 🥜 Nuts & Seeds — Peanuts cashew almonds walnuts pine nuts sunflower sesame and oilseeds 🍎 Fruits & Vegetables — Dried fruits raisins dates and various dehydrated vegetable products 🌶️ Spices — Chilli pepper coriander cumin turmeric cardamom cloves and various spice varieties 🏭 Industrial Materials — Various large irregular agricultural and food processing commodities

🔲 Two Stage Sorting — Product passes through two complete sorting stages within the same machine 1️⃣ First Layer — Primary sort removes major defects discolored particles and foreign materials 2️⃣ Second Layer — Re-inspects output catching any defects missed in the first sorting pass 💎 Higher Purity Output — Two pass process dramatically improves final product purity and quality 💰 No Second Machine — Double layer achieves second pass results without additional separate sorter 🏭 Space & Cost Saving — One machine replaces two separate sorters saving floor space and investment

🟤 Discolored Particles — Black brown yellow and off-color particles detected and removed precisely 🦠 Moldy Particles — Mold infected and fungal damaged pieces identified and rejected accurately 🐛 Insect Damaged — Insect bored damaged and contaminated pieces detected at pixel level 💔 Broken & Damaged — Physically broken cracked chipped and mechanically damaged pieces removed 🔮 Glass & Plastic — Foreign material including glass fragments plastic pieces rubber and sand 🌾 Shape Defects — Shriveled under-developed irregular shaped and size-grade defects classified

🤖 Deep Learning AI — Machine learns from extensive defect model library for continuously improving accuracy 🔭 UHD Resolution — Ultra high definition imaging detects defects as small as 1 to 2 pixels in size 🌈 Multi-Spectral Analysis — Simultaneously analyzes color shape and surface condition of every particle 📊 Extensive Model Library — Compares each particle against thousands of pre-trained defect classifications ⚡ Real-Time Processing — AI chip processes images in real time at full production speed without lag 📱 Real-Time Adjustment — Parameters can be adjusted in real time without stopping production

📦 Model 240KS5 — Power 7.8 kW air consumption 6.0 m³/min dimensions 3560x2200x2615 mm weight 1650 kg 📦 Model 480KS5 — Power 12.6 kW air consumption 9.0 m³/min dimensions 3560x2800x2615 mm weight 2250 kg 🔌 Voltage — All models operate at 180 to 240V single phase 50Hz power supply 💨 Air Pressure — Requires 0.6 to 0.8 MPa compressed air supply for operation 📐 Compact Footprint — Both models share same 3560mm length varying only in width 📞 Model Selection — Contact NICPL for guidance on selecting the right model for your capacity

🚢 Ex-Works Nhava Sheva — All KS Thinker prices are ex-works Nhava Sheva unless otherwise agreed. 🚛 Freight & Transit Insurance — charged extra at actual, in customer scope 🇮🇳 GST & Applicable Taxes — extra at actual, in customer scope 💳 40% Advance Payment — at time of order confirmation 💳 30% Before Dispatch — against Bill of Lading with 100% GST payment 💳 30% Within 120 Days — from invoice date, PDC required before dispatch

⏱️ 8 to 10 Weeks Delivery — KS Thinker delivered within 8 to 10 weeks from advance payment with original PO 🛡️ 24 Month Warranty — Full 2 year warranty from date of commissioning at customer site 📅 27 Month Alternative — Or 27 months from invoice date whichever ends earlier ⚠️ Consumables Excluded — Wiper rubber filter cartage and fuse excluded from warranty coverage 🔧 Manufacturing Defects — Warranty covers all manufacturing defects in machine components and parts 📞 Warranty Claims — Contact NICPL immediately on 70115 54903 for any warranty related issues

🎓 Up to 8 Local Visits — Up to 8 FOC visits for local customers for installation commissioning and training ✈️ Up to 4 Out of Station — Up to 4 FOC visits for out of station customers installation and training 🍽️ Customer Bears Expenses — Customer bears engineer travel lodging and boarding during all visits 💰 Beyond FOC Limit — Additional visits beyond FOC limit charged at INR 5000 plus GST per visit 🧪 Trial Centre Kundli — Live material sorting trial available at NICPL Trial Centre Kundli Sonipat 📞 24x7 Remote Support — NICPL 24x7 support available on phone and WhatsApp after installation

🏆 20 Years Experience — NICPL has 20 years trusted experience in agricultural machinery across India ✅ Authorized Meyer Dealer — NICPL is authorized dealer for Meyer Color Sorters in India market 🧪 Trial Centre Kundli — Bring your product and test live before committing to purchase 🎓 Complete Support — Free installation commissioning and operator training with every purchase 📞 24x7 After Sales — NICPL support team available via phone and WhatsApp for quick help 💰 Best Value India — World class KS Thinker belt sorter at most competitive price in India
