MEYER K Thinker DI AI Belt Color Sorters for Dry Fruits with Wormhole Detection
The MEYER K Thinker DI AI Belt Color Sorter for Dry Fruits with Wormhole Detection is designed for accurate sorting of dry fruits where tiny defects and small target contaminants need to be removed with precision. Its UHD2.0 AI Deep Learning system, Ultra-HD camera technology, and 3D targeted positioning help identify wormholes, discoloration, damage, mold, insect damage, and shape differences accurately. With high-frequency feeding and Maglev Ejector 3.0, the machine provides fast and stable sorting with low product loss. Its soft landing anti-shattering design helps protect fragile dry fruits, while the highly airtight sorting chamber protects the machine from dust, water, and oil. Remote service support also makes commissioning, health checks, and maintenance guidance easier for long-term reliable performance.
Description
▾
The MEYER K Thinker DI AI Belt Color Sorter for Dry Fruits with Wormhole Detection is designed for accurate sorting of dry fruits where tiny defects and small target contaminants need to be removed with precision. Its UHD2.0 AI Deep Learning system, Ultra-HD camera technology, and 3D targeted positioning help identify wormholes, discoloration, damage, mold, insect damage, and shape differences accurately. With high-frequency feeding and Maglev Ejector 3.0, the machine provides fast and stable sorting with low product loss. Its soft landing anti-shattering design helps protect fragile dry fruits, while the highly airtight sorting chamber protects the machine from dust, water, and oil. Remote service support also makes commissioning, health checks, and maintenance guidance easier for long-term reliable performance.
What materials is it suitable for?
▾
PET
PVC
Nuts
Seeds & grains
Beans & pulses
Fruits & vegetables
Metal
HDPE
→
INPUT
✓
ACCEPT
✕
REJECT
Technical Specifications
▾
| Name | Model | Power (kW) | Voltage (V) | Air Pressure (MPa) | Air Consumption (m³/min) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| K Thinker DI AI | 6SXZ-60K5 | 1.6 | 180～240 50Hz | 0.6～0.8 | 1.5 | 3410*1200*1800 | 660 |

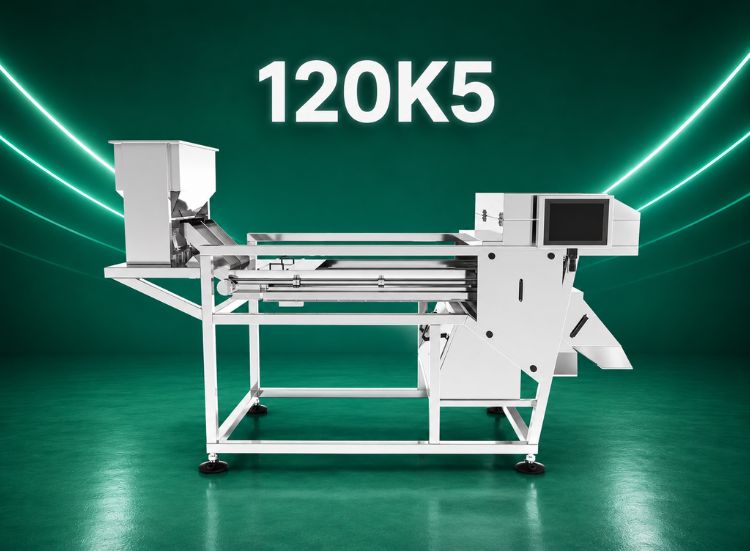

| 6SXZ-120K5 | 3.6 | 180～240 50Hz | 0.6～0.8 | 2.0 | 3405*1421*1789 | 700 | |

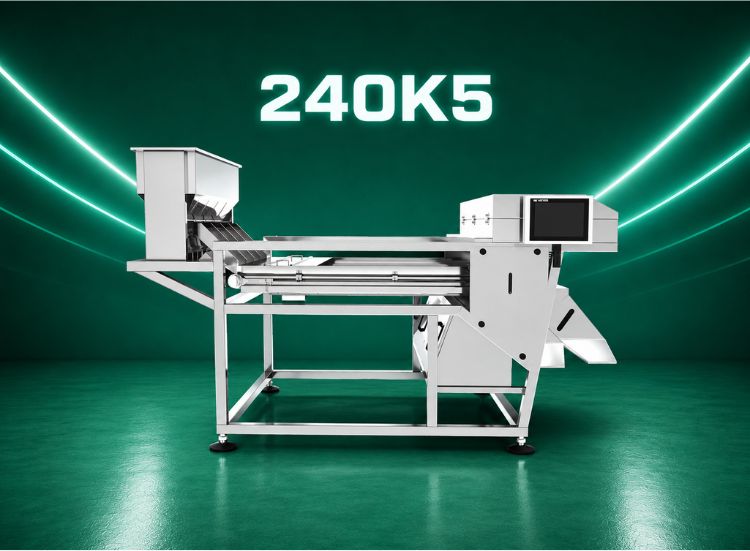

| 6SXZ-240K5 | 4.7 | 180～240 50Hz | 0.6～0.8 | 3.0 | 3405*2043*1789 | 990 |
Features
▾
🍳 AI Powered System
⛓️💥 Maglev Ejectors®
📷 Innovative Vision Systems
⛓️💥 Full Spectrum Lighting System
🔫 Sniper System
💻 Simplified Interface
AI Powered System
- MEYER thoroughly researches AI technology to provide the best sorting solutions.
- Our devices ar equipped with deep learning AI systems, based on the analysis and integration of data features such as color and shape.
- By comparing materials with an extensive library of models, Meyer ensures precise classification even of the smallest defects at the level od 1-2 pixels.
Pre and After-Sales Service
▾
PRE-SALE
Consulting solution service
Configuration suggestion
Layout suggestion
HELP DESK
Remote troubleshooting
Remote machine adjusting
Fault de-escalation
ON-SITE
Routine inspection
Commissioning
Troubleshooting
SPARE PARTS
Spare parts supply
Warranty service
Key parts maintenance
TRAINING
Local training
HQ training
Standard warranty
🌟 Pre-Sale Service — NICPL
Consultation on selecting the optimal sorter for your product
Support integrating with your existing production lines
Material testing available — attend and observe live at Kundli
🔧 After-Sale Service — NICPL
On-site service with quick response times across India
Warranty including free inspections and maintenance
24×7 support — call +91 70115 54903 anytime
Frequently Asked Questions
▾
What is the MEYER K Thinker DI AI and what makes it a "multi-usage" sorter?
The K Thinker DI AI is a single-layer multi-usage belt color sorter designed for food, agriculture, and recycling applications. It is called multi-usage because one machine handles grains, pulses, nuts, dry fruits, fruits, vegetables, and polymer materials including PET, HDPE, PVC, and metal making it suitable for processors handling diverse product streams without needing separate sorters.
What is special about the UHD2.0 AI Deep Learning system?
The UHD2.0 system uses ultra-high-definition cameras with multi-core parallel processing to analyze color and shape simultaneously — increasing imaging accuracy and processing speed by up to 4 times compared to standard systems. It scans at 50,000 frames per second and identifies objects as small as 0.0025 mm², enabling pixel-level detection of wormholes, mold, discoloration, and micro defects that standard sorters cannot detect.
What defects and foreign materials can the K Thinker detect and remove?
It removes discolored particles, physically damaged pieces, moldy grains, insect-damaged products, and wormholes. It also eliminates foreign materials including glass fragments, plastic pieces, and sand. The multispectral vision system covers visible light, infrared, UV, and X-Ray, enabling detection across a wide range of defect types and material properties.
Does the K Thinker support shape grading?
Yes. The K Thinker supports shape grading including long/round, long/short, and large/small classification — all in a single pass. This is particularly useful for processors supplying different buyer specifications requiring different size grades from the same product batch, without running multiple separate sorting passes.
What are the specifications of all three models?

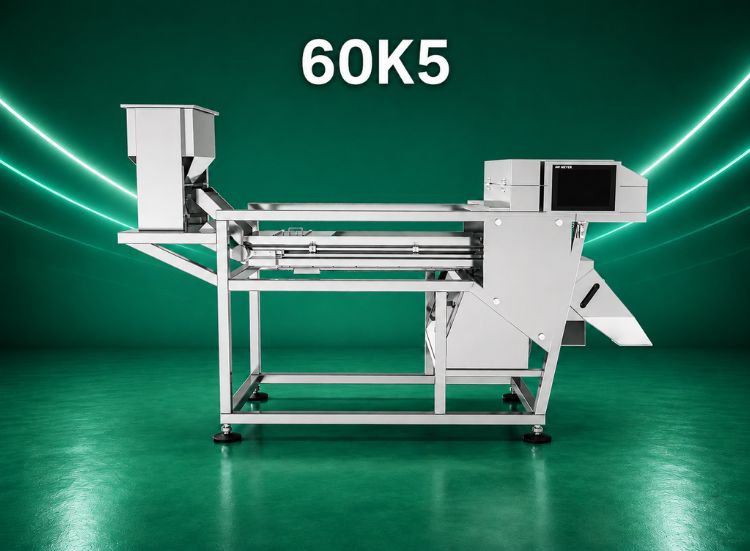

Three models are available: 60K5 (6SXZ-60K5, 1.6 kW, 1.5 m³/min, 3410×1200×1800 mm, 660 kg), 120K5 (6SXZ-120K5, 3.6 kW, 2.0 m³/min, 3405×1421×1789 mm, 700 kg), and 240K5 (6SXZ-240K5, 4.7 kW, 3.0 m³/min, 3405×2043×1789 mm, 990 kg). All operate at 180–240V / 50Hz and 0.6–0.8 MPa air pressure.
Can the K Thinker sort PET, HDPE and metal?
Yes. Beyond food and agriculture, the K Thinker handles polymer recycling including PET sorting by color fractions (transparent, green, blue, white), HDPE, PVC, and metal separation. Its multispectral vision and AI Deep Learning differentiate material types and colors accurately, making it suitable for recycling operations as well as food processing.
How does the airtight sorting chamber protect the machine?
The sorting chamber achieves greater than 99% airtightness fully protecting all optical sensors, cameras, and mechanical components from dust, water, and oil contamination. This is critical in dry fruit, grain, and spice processing environments where fine product dust accumulates rapidly. The sealed design maintains consistent detection accuracy over long-term continuous operation and reduces maintenance frequency.
What support does NICPL provide for the K Thinker in India?
NICPL provides pre-sale consultation, production line integration support, and live material testing at the Trial Centre in Kundli, Sonipat — where customers can bring their own product samples and observe sorting live before purchasing. After-sale support includes on-site commissioning, remote control via PC and mobile for health checks and maintenance, warranty with free inspections, spare parts supply, operator training, and 24×7 support on +91 70115 54903.
What is the MEYER K Thinker and what does wormhole detection mean?
The MEYER K Thinker DI AI Belt Color Sorter is designed for dry fruits, using UHD2.0 AI Deep Learning, Ultra-HD cameras, and 3D targeted positioning to identify wormholes, discoloration, damage, mold, insect damage, and shape differences — including small target defects that are difficult to detect with standard sorters.
How does the K Thinker protect fragile dry fruits during sorting?
It uses Intelligent Anti-shattering Technology with a soft landing design to reduce breakage, combined with Maglev Ejector 3.0 for fast, low-loss ejection and high-frequency feeding for stable throughput.
What protection does the K Thinker have against dust, water, and oil?
The sorting chamber is highly airtight — over 99% — protecting internal components from dust, water, and oil, which supports long-term reliability and easier cleaning.
What models are available and what are the K Thinker specifications?
Three models: 60K5 (1.6 kW, 1.5 m³/min, 3410×1200×1800 mm, 660 kg), 120K5 (3.6 kW, 2.0 m³/min, 3405×1421×1789 mm, 700 kg), and 240K5 (4.7 kW, 3.0 m³/min, 3405×2043×1789 mm, 990 kg). All operate at 180–240V / 50Hz, 0.6–0.8 MPa.
🚢 What Are the Pricing & Shipping Terms for K Thinker?
🚢 Ex-Works Nhava Sheva — All K Thinker prices are ex-works Nhava Sheva unless otherwise agreed.
🚛 Freight & Transit Insurance — charged extra at actual, in customer scope
🇮🇳 GST & Applicable Taxes — extra at actual, in customer scope
💳 40% Advance Payment — at time of order confirmation
💳 30% Before Dispatch — against Bill of Lading with 100% GST payment
💳 30% Within 120 Days — from invoice date, PDC required before dispatch
⏱️ What is the Delivery & Warranty Terms for K Thinker ?
⏱️ 8 to 10 Weeks Delivery — from advance payment with original PO, subject to force majeure conditions
🛡️ 24 Month Warranty — from date of commissioning at customer site
📅 27 Month Alternative — from invoice date, whichever is earlier
⚠️ Consumables Excluded — wiper rubber, filter, cartage, and fuse excluded from warranty
🔧 Manufacturing Defects — warranty covers manufacturing defects only
📞 Warranty Claims — contact NICPL on 70115 54903
🎓 What Installation & Training Support Does NICPL Provide?
🎓 Up to 8 Local Visits — FOC visits for installation, commissioning, training
✈️ Up to 4 Out of Station Visits — FOC visits for installation and training
🍽️ Customer Bears Expenses — engineer travel, lodging, boarding
💰 Beyond FOC Limit — INR 5,000 + GST per visit
🧪 Trial Centre Kundli — live material testing before purchase
📞 24x7 Remote Support — phone and WhatsApp
