UV SERIESRice SortingLuxury

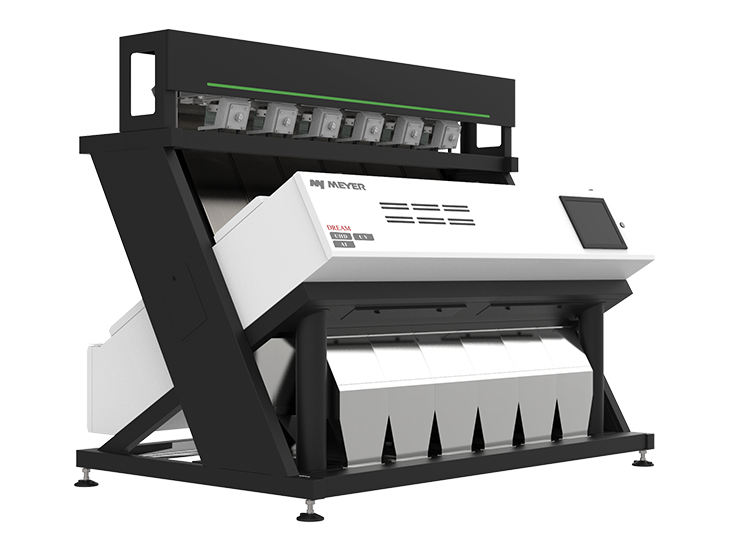

DREAM UV Series (Luxury) Rice Color Sorter
Equipped with UV sorting system and AI deep learning technology for superior rice sorting and grading.
360DREAM UV LUXURY
Equipped with UV sorting system — removes impurities more excellently
AI deep learning technology — doubling the yield of shredding
Removes yellow, moldy, discolored, broken grains with high precision
Removes paddy, rice husk, stone, glass and plastic impurities
Application
RicePaddyWhite RiceBrown Rice
UV Sorting
Equipped with UV Sorting System, Remove Impurities More Excellent
  • Sorting effect of glass, stone, metal and plastic is excellent
  • 20% improvement in precision of sorting extreme light yellow grains
  • Helps rice enterprises create high-quality rice and reduce costs
  • Constantly achieve efficiency and enhance market competitiveness
AI Deep Learning
Equipped with AI Deep Learning Technology, Doubling the Yield of Shredding
  • Based on massive rice data — quickly builds deep learning sorting model
  • Makes up for bottleneck of traditional shape sorting technology
  • Greatly improving precision of sorting shredding and intermixing
  • One color sorter can match multiple packing scales — output doubled
Engineered Design
Engineered Design, Intelligent Manufacturing
  • Whole machine structure is highly modular and standardized
  • 70% of parts and components automated and intelligently produced
  • Greatly enhances the reliability of products
  • Guarantee continuous processing, long-term stable, lower maintenance costs
More Specificities
⚙️
Digital Electrical Control System
Topological structure reduces redundant control modules by 45%, controls sudden failure from the source.
📳
High-frequency Vibrator
High-frequency vibration motor, compact structure, high efficiency, more stable material drop.
🌀
Intelligent Upper Vacuum Technology
Efficient filtration of light drift, dust and other impurities at the feed end.
💨
Intelligent Front Vacuum Technology
Efficient filtration of light drift, dust and other impurities at the discharge end.
🔩
Anodizing Channel
High wear resistance to meet the needs of long time and high output processing.
📷
Ultra-HD Camera System
Low distortion camera lens, industrial-grade four-color CCD sensor, minimum identification area 0.0025mm².
🎯
Intelligent Shape Sorting Technology
Accurately identifying shape differences such as long/round grains to meet diversified grading needs.
🔍
Targeted Positioning Technology
Three-dimensional reconstruction, accurate positioning of the center point of impurities.
🚀
Maglev Ejector 3.0
Ultra-high-speed response up to 1200 times per second; millisecond start-stop, longer service life.
🛡️
Intelligent Anti-shattering Technology
Targeted rejection algorithm and soft landing design reduces stress on material.
📱
Simple Interface
Modular UI design makes operation more simple; built-in learning package for easy operation.
🔔
Intelligent Alarm
Visual LED so that signal, light, air pressure and other abnormal conditions can be easily monitored.
Technical Specifications
Swipe left to see all columns
NameModelPower (kW)Voltage (V)Air Pressure (MPa)Air Consumption (m³/min)Dimension (L×W×H mm)Weight (kg)
240DREAM UVMSXC-240RS22.0180~240 50Hz0.6~0.8<2.01891×1564×20201120
360DREAM UVMSXC-360RS22.7180~240 50Hz0.6~0.8<3.02533×1564×20201400

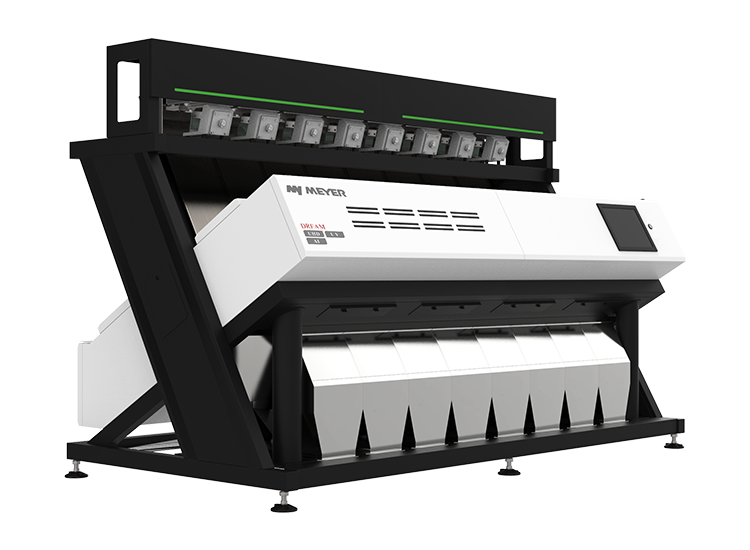

480DREAM UVMSXC-480RS23.4180~240 50Hz0.6~0.8<4.02991×1564×20201750

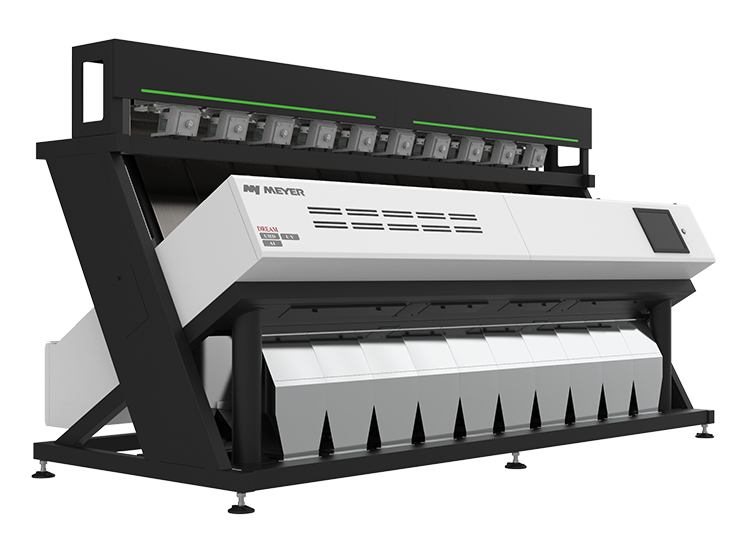

600DREAM UVMSXC-600RS24.0180~240 50Hz0.6~0.8<5.03583×1564×20202090

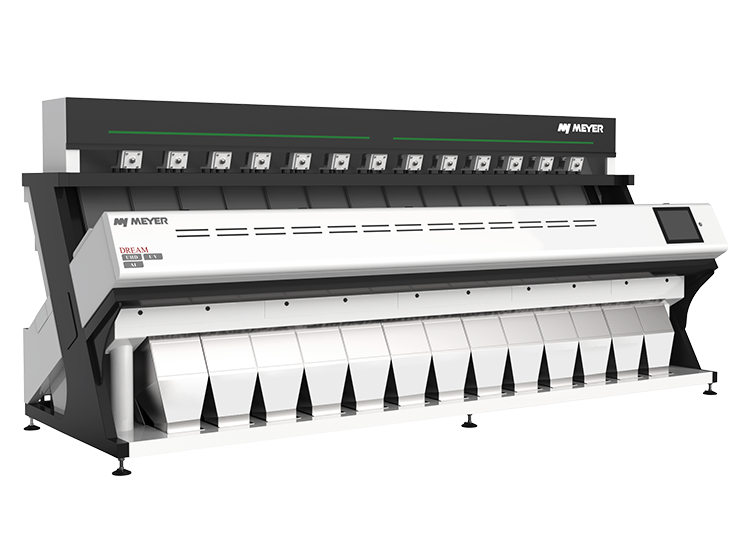

780DREAM UVMSXC-780RS5.0180~240 50Hz0.6~0.8<6.54435×1620×20202800
