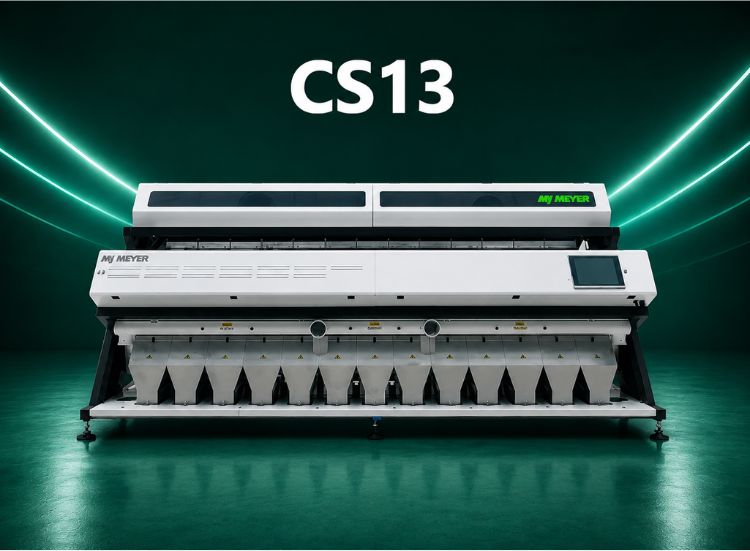

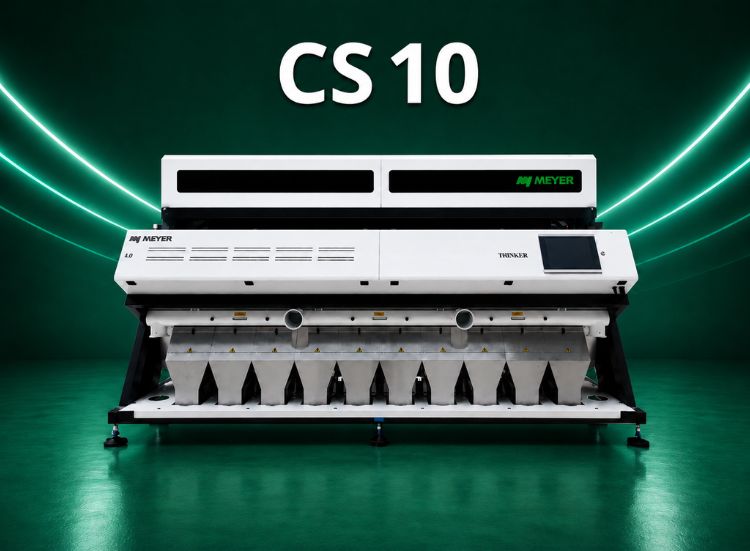

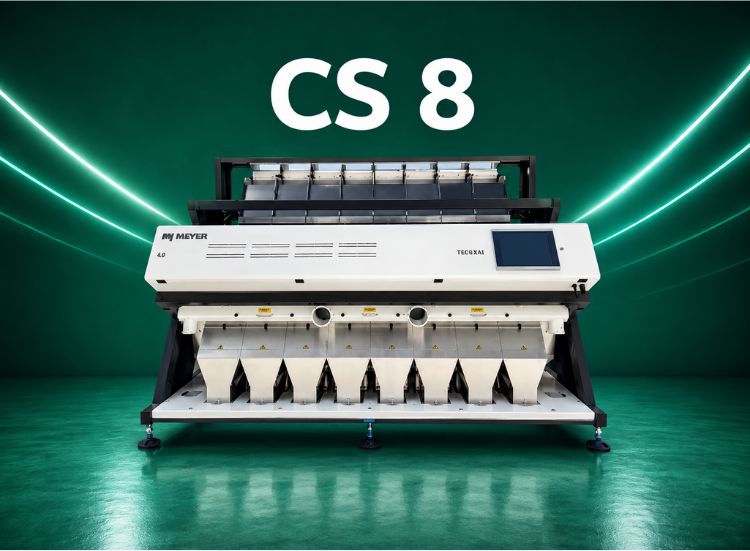

Chute Type ( | 6 | 8 | 10 | 12 | 13 | )
Bestseller

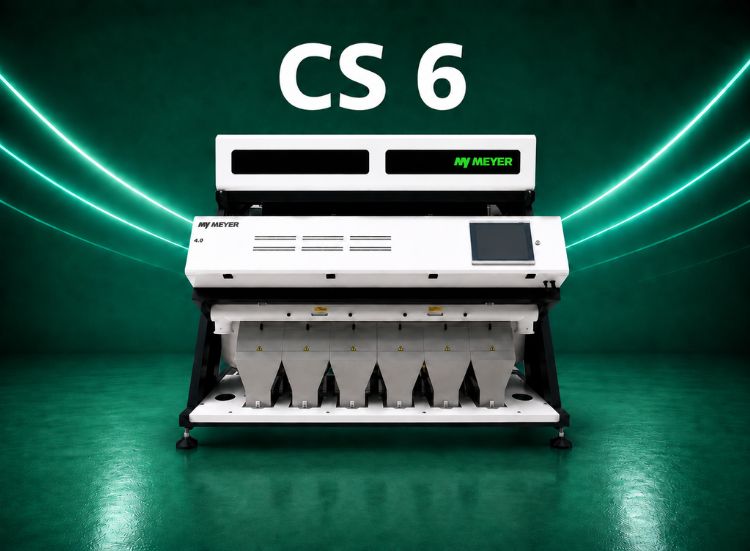

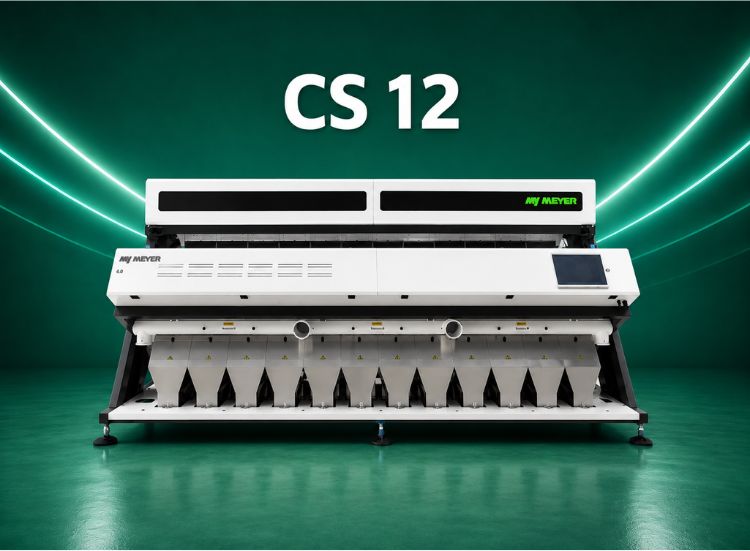

MEYER CS Thinker AI Color Sorter for Poppy Seeds, Sesame Seeds & Small Size Commodities
The MEYER CS Food Series Color Sorter is a versatile and high-precision sorting machine designed for grains, pulses, legumes, nuts, seeds, and small-size commodities. It effectively removes moldy, discolored, insect-damaged, broken grains, and foreign impurities to deliver cleaner and more consistent output. Equipped with AI Deep Learning Technology, advanced detection systems, and Maglev Ejector, the machine can identify complex defects that are difficult for traditional sorting methods. It also supports classification based on length, size, and shape, making it suitable for different food processing requirements. With its intuitive user interface, flexible configuration options, and reliable performance, the MEYER CS Food Series helps improve product purity, reduce material loss, and maintain stable operation even during high-throughput processing.
Description
▾
The MEYER CS Food Series Color Sorter is a versatile and high-precision sorting machine designed for grains, pulses, legumes, nuts, seeds, and small-size commodities. It effectively removes moldy, discolored, insect-damaged, broken grains, and foreign impurities to deliver cleaner and more consistent output. Equipped with AI Deep Learning Technology, advanced detection systems, and Maglev Ejector, the machine can identify complex defects that are difficult for traditional sorting methods. It also supports classification based on length, size, and shape, making it suitable for different food processing requirements. With its intuitive user interface, flexible configuration options, and reliable performance, the MEYER CS Food Series helps improve product purity, reduce material loss, and maintain stable operation even during high-throughput processing.
What materials is it suitable for?
▾
Nuts
Seeds & grains
lentils
→
INPUT
✓
ACCEPT
✕
REJECT
Technical Specifications
▾
| Name | Model | Power (kW) | Voltage (V) | Air Pressure (MPa) | Air Consumption (m³/min) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| CS THINKER | 6SXZ-480CS3 | 4.5 | 180～240 50Hz | 0.6~0.8 | 3.6 | 2399×1764×2033 | 1150 |
| 6SXZ-640CS3 | 5.8 | 180～240 50Hz | 0.6~0.8 | 4.8 | 2991×1764×2033 | 1450 | |
| 6SXZ-800CS3 | 7.0 | 180～240 50Hz | 0.6~0.8 | 6.0 | 3583×1764×2033 | 2035 | |
| 6SXZ-960CS3 | 8.3 | 180～240 50Hz | 0.6~0.8 | 7.2 | 4128×1764×2033 | 2000 | |
| 6SXZ-1040CS3 | 9.0 | 180～240 50Hz | 0.6~0.8 | 7.8 | 4424×1764×2033 | 2500 |
Features
▾
🍳 AI Powered System
📸 Innovative Vision Systems
⏏️ Maglev Ejectors®
⛓️💥 Full Spectrum Lighting System
🎮 Remote control and service support
⛓️💥 Sniper System
💻 Simplified Interface
AI Powered System
- MEYER thoroughly researches AI technology to provide the best sorting solutions.
- Our devices ar equipped with deep learning AI systems, based on the analysis and integration of data features such as color and shape.
- By comparing materials with an extensive library of models, Meyer ensures precise classification even of the smallest defects at the level od 1-2 pixels.
Pre and After-Sales Service
▾
PRE-SALE
Consulting solution service
Configuration suggestion
Layout suggestion
HELP DESK
Remote troubleshooting
Remote machine adjusting
Fault de-escalation
ON-SITE
Routine inspection
Commissioning
Troubleshooting
SPARE PARTS
Spare parts supply
Warranty service
Key parts maintenance
TRAINING
Local training
HQ training
Standard warranty
🌟 Pre-Sale Service — NICPL
Consultation on selecting the optimal sorter for your product
Support integrating with your existing production lines
Material testing available — attend and observe live at Kundli
🔧 After-Sale Service — NICPL
On-site service with quick response times across India
Warranty including free inspections and maintenance
24×7 support — call +91 70115 54903 anytime
Frequently Asked Questions
▾
What is the Meyer CS Thinker AI and what commodities does it sort?
The Meyer CS Thinker AI is a high-precision chute-type color sorter specially designed for small-size commodities including poppy seeds, sesame seeds, white sesame, black sesame, flaxseed, mustard seeds, cumin, small pulses, lentils, and other small grains and spices. It removes discolored, moldy, insect-damaged, broken particles, and foreign objects with exceptional accuracy.
What makes the CS Thinker suitable for very small seeds like poppy and sesame?
The CS Thinker uses ultra-high-resolution cameras with a minimum recognition range of 1–2 pixels, making it capable of detecting defects on extremely small particles that standard sorters cannot reliably identify. Its AI Deep Learning system continuously improves detection accuracy for size-specific products like sesame and poppy seeds, ensuring consistent purity even at high throughput.
How many models are available and what are their capacities?
Five models are available — 480CS3, 640CS3, 800CS3, 960CS3, and 1040CS3 — with power ratings from 4.5 kW to 9.0 kW and air consumption from 3.6 m³/min to 7.8 m³/min. This range covers small spice processors to large industrial operations running high daily volumes of seeds and small grains.
Can the CS Thinker sort spices like cumin and coriander seeds accurately?
Yes. The CS Thinker's multi-spectral vision and AI Deep Learning are highly effective for spices and small seeds where color variation, foreign seed contamination, and discoloration are common challenges. Its Sniper System precisely locates and removes individual defective particles without over-rejecting good material.
What is the Maglev Ejector and how does it help with small commodity sorting?
The Maglev® Ejector uses magnetic levitation for non-contact, ultra-fast ejection at over 1,200 times per second with millisecond precision. For small particles like sesame and poppy seeds, this speed and accuracy is critical — it ensures individual defective particles are precisely removed without ejecting surrounding good material, keeping product loss to an absolute minimum.
Does the CS Thinker support shape and size-based classification?
Yes. In addition to color-based defect removal, the CS Thinker can classify material based on length, size, and shape. This is particularly useful for processors who want to separate broken pieces from whole seeds or grade by particle size for premium packaging.
Can NICPL demonstrate the CS Thinker with our own seed samples before purchase?
Absolutely. NICPL's Trial Centre at Kundli, Sonipat, Haryana is set up specifically for live sorting demonstrations. You can bring your own sesame, poppy, cumin, or any small-commodity samples and see the machine's sorting performance firsthand before making any purchase decision. Call us at +91 70115 54903 to schedule your visit.
What after-sales support does NICPL provide for the CS Thinker across India?
NICPL provides complete on-site installation and commissioning, operator training, 24×7 breakdown support, remote troubleshooting and machine adjustment, genuine Meyer spare parts supply, routine maintenance, and Annual Maintenance Contracts (AMC). Our service network covers all major agricultural and processing states across India.
What is the MEYER CS Thinker and what does it sort?
The MEYER CS Food Series Color Sorter is a versatile, high-precision sorting machine for grains, pulses, legumes, nuts, seeds, and small-size commodities including poppy seeds and sesame seeds. It removes moldy, discolored, insect-damaged, broken material, and foreign impurities.
What technology does the CS Thinker use for detection?
It's equipped with AI Deep Learning Technology, advanced detection systems, and a Maglev Ejector, enabling it to identify complex defects that traditional sorting methods struggle with — while also classifying by length, size, and shape.
What models are available and what are the CS Thinker specifications?
Five models: 480CS3 (4.5 kW, 3.6 m³/min, 2399×1764×2033 mm, 1,150 kg), 640CS3 (5.8 kW, 4.8 m³/min, 2991×1764×2033 mm, 1,450 kg), 800CS3 (7.0 kW, 6.0 m³/min, 3583×1764×2033 mm, 2,035 kg), 960CS3 (8.3 kW, 7.2 m³/min, 4128×1764×2033 mm, 2,000 kg), and 1040CS3 (9.0 kW, 7.8 m³/min, 4424×1764×2033 mm, 2,500 kg). All operate at 180–240V / 50Hz, 0.6–0.8 MPa.
Is the CS Thinker suitable for small seeds like poppy and sesame?
Yes — it's purpose-built for small-size commodities including poppy seeds and sesame seeds, with intuitive interface and flexible configuration for high-throughput processing while maintaining low material loss.
🚢 What Are the Pricing & Shipping Terms for CS Thinker ?
🚢 Ex-Works Nhava Sheva — All CS Thinker prices are ex-works Nhava Sheva unless otherwise agreed
🚛 Freight & Transit Insurance — charged extra at actual, in customer scope
🇮🇳 GST & Applicable Taxes — extra at actual, in customer scope
💳 40% Advance Payment — at time of order confirmation
💳 30% Before Dispatch — against Bill of Lading with 100% GST payment
💳 30% Within 120 Days — from invoice date, PDC required before dispatch
⏱️ What is the Delivery & Warranty Terms CS Thinker ?
⏱️ 8 to 10 Weeks Delivery — from advance payment with original PO, subject to force majeure conditions
🛡️ 24 Month Warranty — from date of commissioning at customer site
📅 27 Month Alternative — from invoice date, whichever is earlier
⚠️ Consumables Excluded — wiper rubber, filter, cartage, and fuse excluded from warranty
🔧 Manufacturing Defects — warranty covers manufacturing defects only
📞 Warranty Claims — contact NICPL on 70115 54903
🎓 What Installation & Training Support Does NICPL Provide?
🎓 Up to 8 Local Visits — FOC visits for installation, commissioning, training
✈️ Up to 4 Out of Station Visits — FOC visits for installation and training
🍽️ Customer Bears Expenses — engineer travel, lodging, boarding
💰 Beyond FOC Limit — INR 5,000 + GST per visit
🧪 Trial Centre Kundli — live material testing before purchase
📞 24x7 Remote Support — phone and WhatsApp
